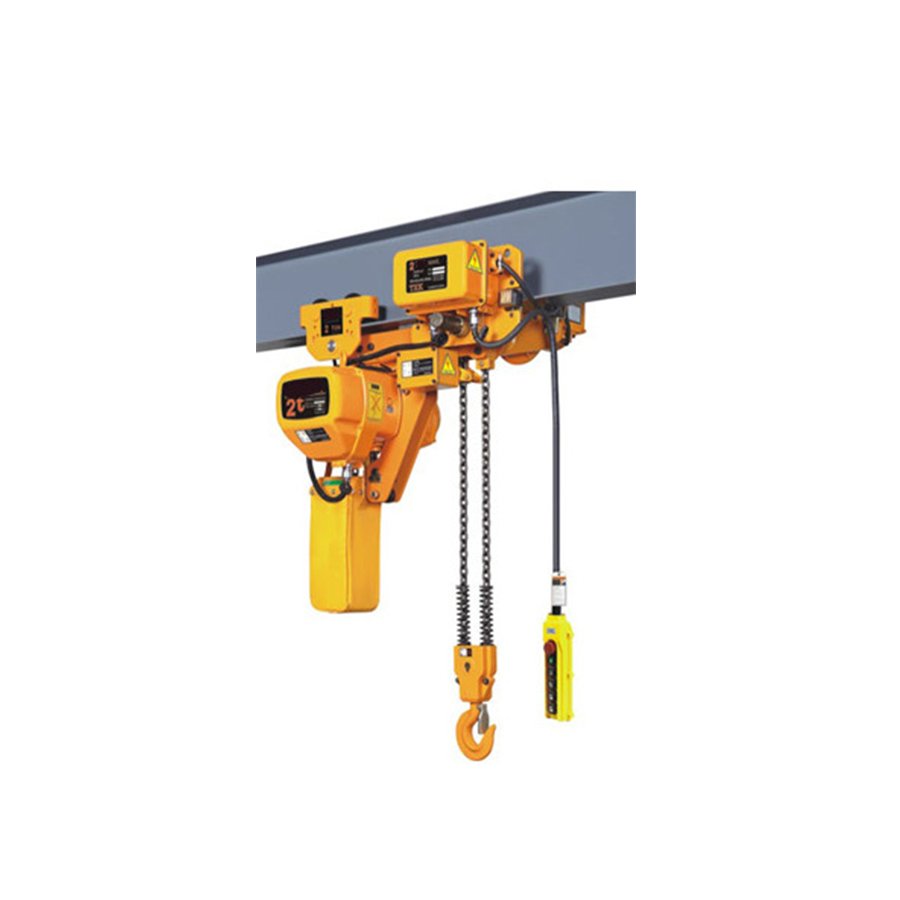

Low Headroom Electric chain hoist

Your current location:

Shell: Light aluminum alloy shell shall be adopted wich is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
Inverse phase sequence protecting device: It is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
Limit switch: The Iimit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
24V/36V decice: It is used to prohibit the emergencies from occurring in case of the leakage in the switch.
Side magnetic braking device: This device shall realize the instant brake in case of the power dump.
Chain bag: It shall be light, handsome and durable.
Chain: The chain shall adopt the imported FEC80 ultra heat-treatable Alloy steel chain.

Product Description

Poeduct Features

It is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations inside fairy low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required.

Techical Parameters

Model	SSDHL
Model	0.5-01L	01-01L	1.5-01L	02-01L	02-02L	2.5-01L	03-01L	03-02L	05-02L	7.5-03L
Capacity (t)	05t	1t	1.5t	2t		2.5t	3t		5t	7.5t
Lifting speed (m/min)	7.2	6.6	8.8	6.6	3.3	5.4	5.4	4.4	2.7	1.8
Motor power (Kw)	0.8	1.5	3.0	3.0	1.5	3.0	3.0	3.0	3.0	3.0
Rotation speed (r/min)	1440 r/min
Insulation grade	F grade
Power supply	3 phase, 200V-690V, 50/60Hz
Control voltage	24V / 36V / 48V
No.of chain	1	1	1	1	2	1	1	2	2	3
Spec.of load chain	Φ6.3	Φ7.1	Φ10.0	Φ10.0	Φ7.1	Φ11.2	Φ11.2	Φ10.0	Φ11.2	Φ11.2
Model	SSDHL
Model	0.5-01LO	01-01LO	1.5-01LO	02-01LO	02-02LO	2.5-01LO	03-01LO	03-02LO	05-02LO	7.5-03L
Capacity (t)	0.5t	1t	1.5t	2t		2.5t	3t		5t	7.5t
Lifting speed (m/min)	7.2/2.4	6.9/2.3	9.0/3.0	6.9/2.3	3.3/1.1	5.4/1.8	5.4/1.8	4.5/1.5	2.7/0.9	1.8/0.6
Motor power (Kw)	0.8/0.27	1.8/0.6	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0	3.0/1.0	3.0/1.0	3.0/1.0	3.0/1.0
Rotation speed (r/min)	2880 / 960
Insulation grade	F grade
Power supply	3 phase, 200V-690V, 50/60Hz
Control voltage	24V / 36V / 48V
No.of chain	1	1	1	1	2	1	1	2	2	3
Spec.of load chain	Φ6.3	Φ7.1	Φ10.0	Φ10.0	Φ7.1	Φ11.2	Φ11.2	Φ10.0	Φ7.1	Φ11.2

Size specification

Model	H	A	B	W	U
0.5-01L	400	460	230	585	400
0.5-01LD	400	545	260	585	400
01-01L	480	520	260	630	445
01-01LD	480	582	280	630	445
1.5-01L	570	615	295	720	505
1.5-01LD	570	670	313	720	505
02-01L	570	615	295	720	505
02-01LD	570	670	313	720	505
02-02L	535	520	260	665	445
02-02LD	535	582	280	665	445
2.5-01L	640	615	295	775	526
2.5-01LD	640	670	313	775	526
03-01L	640	615	295	775	526
03-01LD	640	670	313	775	526
03-02L	685	615	295	750	503
03-02LD	685	670	313	750	503
05-02L	740	615	295	825	541
05-02LD	740	670	313	825	541
7.5-03L	890	615	295	1020	730
7.5-03LD	890	670	313	1020	730
