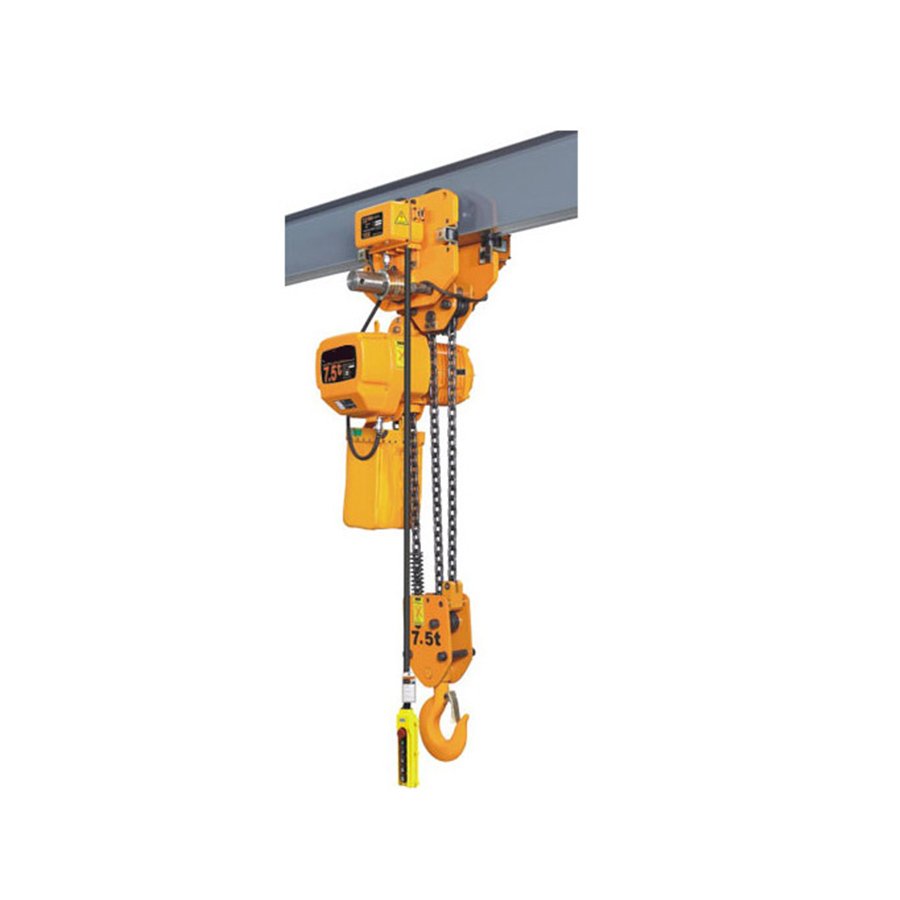

HHB Electric Chain Hoist

Your current location:

Shell: Light aluminum alloy shell shall be adopted wich is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.

Inverse phase sequence protecting device: It is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
Limit switch: The Iimit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
24V/36V decice: It is used to prohibit the emergencies from occurring in case of the leakage in the switch.
Side magnetic braking device: This device shall realize the instant brake in case of the power dump.
Chain bag: It shall be light, handsome and durable.
Chain: The chain shall adopt the imported FEC80 ultra heat-treatable Alloy steel chain.

0.5T-35T

Product Description

Techiacal Parameters

3-phase (Single Speed/Dual Speed)

Model	Capacity	Standard Lift	Test Load	Motor Power (kw)	No.of	Dia of Chain	Lifting Speed	Net Weight	Extra weight per
	ton	m	kn	Single/Dual	Chain	mm	(m/min)	kg	meter of extra lift kg
							Single/Dual
HHB-0.5AF	0.5	3	6.25	0.75,0.8/0.27	1	6.3	6.8,6.9/2.3	47	0.81
HHB-1.0AF	1	3	12.5	1.5,1.8/0.6	1	7.1	6.6,6.9/2.3	61	1.1
HHB-1.0BF	1	3	12.5	0.75,0.8/0.27	2	6.3	3.4,3.5/1.2	52	1.62
HHB-2.0AF	2	3	25	3.0,3.0/1.0	1	10	6.6,6.8/2.3	115	2.3
HHB-2.0BF	2	3	25	1.5,1.8/0.6	2	7.1	3.3,3.3/1.1	73	2.2
HHB-3.0AF	3	3	37.5	3.0,3.0/1.0	1	11.2	5.4,5.4/1.8	122	2.8
HHB-3.0BF	3	3	37.5	3.0,3.0/1.0	2	10	4.4,4.5/1.5	131	4.7
HHB-5.0F	5	3	62.5	3.0,3.0/1.0	2	11.2	2.8,2.7/0.9	151	5.6
HHB-7.5F	7.5	3	94	3.0,3.0/1.0	3	11.2	1.8,1.8/0.6	266	8.4
HHB- 10F	10	6	125	3.0,3.0×2/1.0×2	4	11.2	2.7,2.7/0.9	335	11.2
HHB- 15F	15	6	187.5	3.0×2,3.0x2/1.0×2	6	11.2	1.8,1.8/0.6	451	17
HHB- 20F	20	6	250	3.0×2,3.0x2/1.0×2	8	11.2	1.4,4.5/0.6	546	22
HHB- 25F	25	6	312.5	3.0×2,3.0x2/1.0×2	10	11.2	1.1,1.2/0.4	624	28
HHB- 30F	30	6	375	3.0×2,3.0x2/1.0×2	12	11.2	0.9,1.0/0.3	1143	31
HHB- 35F	35	6	437.5	3.0×2,3.0x2/1.0×2	16	11.2	0.7,0.7/0.25	1385	44.8

Main Dimension(Single Speed/Dual Speed)

Model	Capacity ton	H	A	B	D	E	I	J	K	L	M	N
Model	Capacity ton	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
HHB-0.5AF	0.5	530	545	260	280	160	35	28	35	25	17	17
HHB-1.0AF	1	650	582	280	300	176	40	31	40	31	22	22
HHB-1.0BF	1	650	545	260	280	205	40	31	40	31	22	2
HHB-2.0AF	2	800	670	313	430	265	47	40	47	38	30	30
HHB-2.0BF	2	835	582	280	300	236	47	38	47	38	30	30
HHB-3.0AF	3	845	670	313	430	265	58	47	58	47	36	36
HHB-3.0BF	3	950	670	313	430	320	58	47	58	47	36	36
HHB-5.0F	5	1030	670	313	430	325	60	48	60	48	43	43
HHB-7.5F	7.5	1200	670	313	505	320	54	31	85	80	85	55
HHB- 10F	10	1400	685	352	/	890	85	80	80	80	104	55
HHB- 15F	15	1310	630	315	1070	535	54	54	120	96	88	78
HHB- 20F	20	1470	630	315	1260	630	70	70	150	115	88	98
HHB- 25F	25	1580	630	315	1260	725	70	70	150	115	88	95
HHB- 30F	30	1640	740	315	1300	725	100	100	140	95	217	130
HHB- 35F	35	1790	740	315	1500	725	100	100	200	140	217	150
