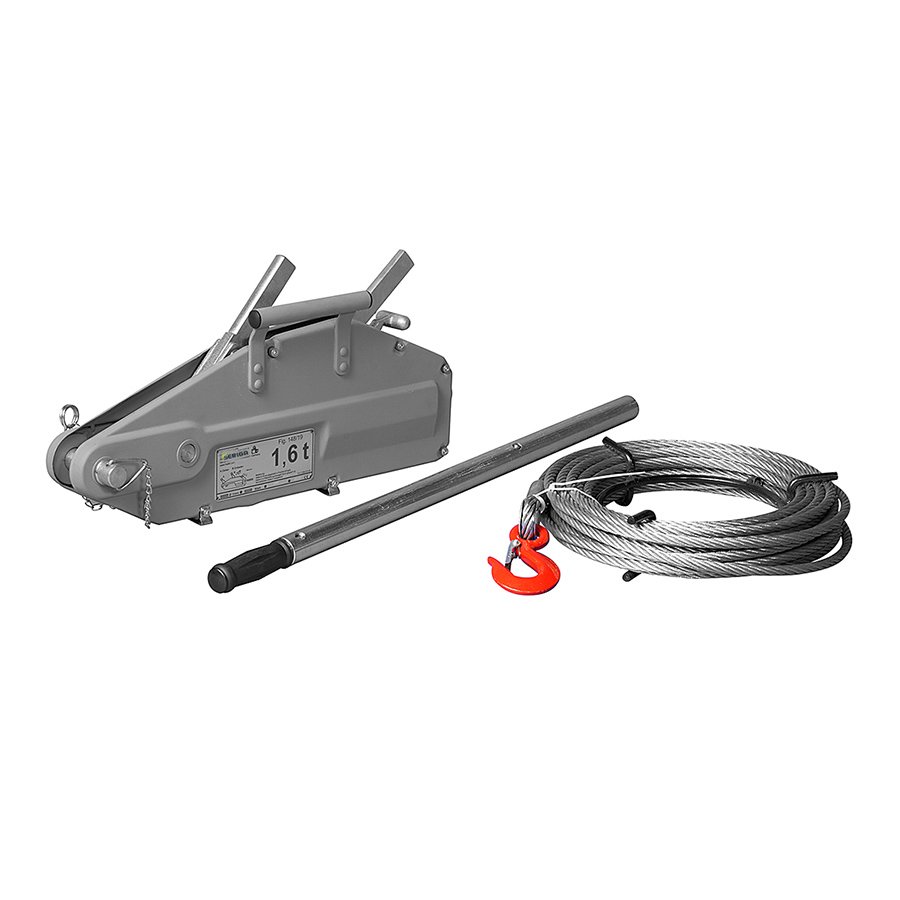

Wire Rope Pulling Hoist, Wire Rope Winch, Cable Pulling Equipment
Product Description
Specifications of Wire Rope Hoist | Model | ||||
W008 | W016 | W032 | W054 | ||
Rated Capacity | kg | 800 | 1600 | 3200 | 5400 |
Rope Advance per Full Stroke | mm | ≥52 | ≥55 | ≥28 | ≥25 |
Lever Pull at WLL | N | 341 | 400 | 438 | 850 |
Rope Diameter | mm | 8.3 | 11 | 16 | 20 |
Standard Length of Wire Rope | m | 20 | 20 | 20 | 20 |
Net Weight Without Cable | kg | 6.4 | 12 | 23 | 58 |
Cable Weight | kg | 8.5 | 16.5 | 25 | 36 |
Max.Overall Size(mm) | A | 430 | 548 | 660 | 930 |
B | 238 | 284 | 335 | 390 | |
C | 64 | 97 | 116 | 150 | |
L1(cm) | 70 | 70 | 70 | ||
L2(cm) | 80 | 120 | 120 | 120 |
