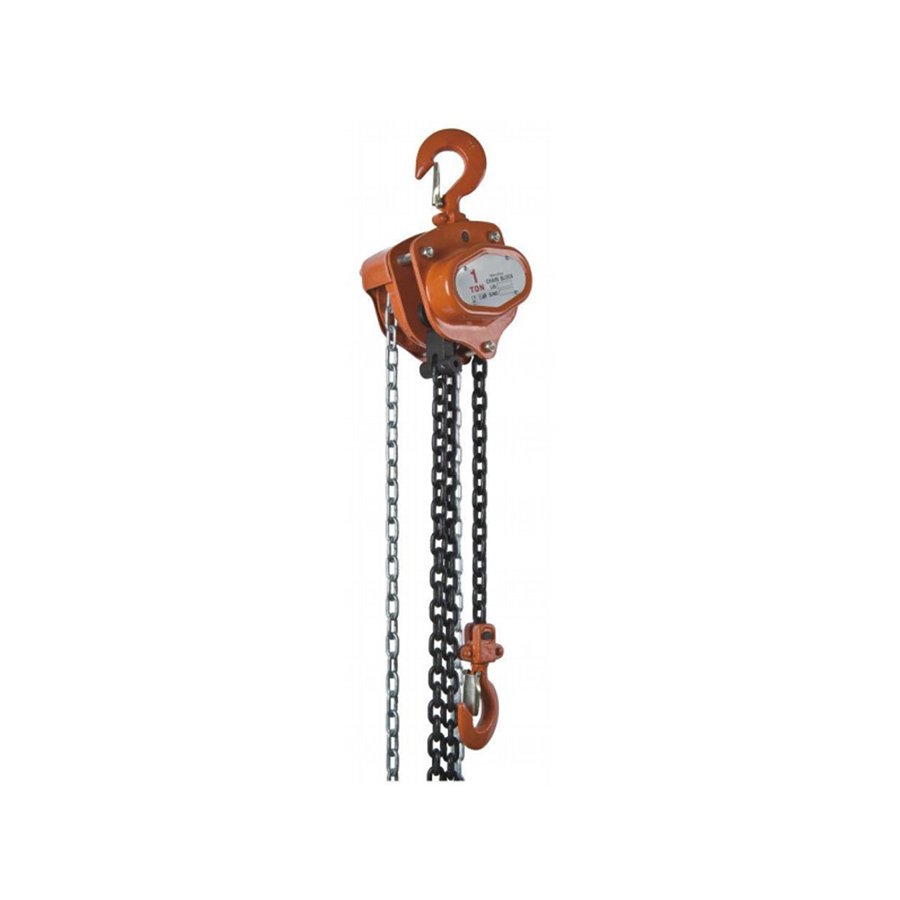

SRVC-B Chain Block Chain Hoist A619
All Steel Construction-Impact resistant covers that provide durability and protection.
Powder Coating-This process provides a long lasting finish in hostile environments.
Double pawl and double guide rollers enhance performance, safety and reliability.
Unique curling design-This feature enables the hand chain to successfully feed directly into the wheel sprocket from many directions and angles.
Forged Alloy Steel Hooks Cast Steel Safety Latches.
Stainless Steel Riveted Nameplat
Product Description

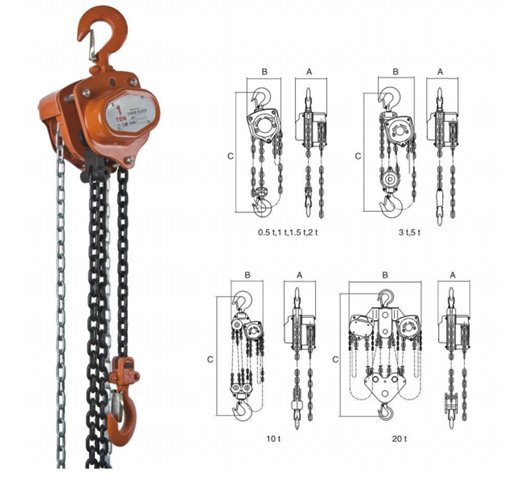

ITEM CODE | Capacity t | Standard lift m | Running test load t | No. of fails of load chain | Load chain dia mm | A | B | C | N.W. kg |
SRVCB01 | 0.5 | 2.5 | 0.75 | 1 | 5 | 129 | 136 | 270 | 8.4 |
SRVCB02 | 1 | 2.5 | 1.5 | 1 | 6.3 | 149.5 | 145 | 317 | 12 |
SRVCB03 | 1.5 | 2.5 | 2.25 | 1 | 7.1 | 157.5 | 164.5 | 399 | 16.2 |
SRVCB04 | 2 | 3 | 3 | 1 | 8 | 161.5 | 187 | 414 | 20 |
SRVCB05 | 3 | 3 | 4.5 | 2 | 7.1 | 151.5 | 164.5 | 465 | 24 |
SRVCB06 | 5 | 3 | 7.5 | 2 | 9 | 163 | 211 | 636 | 41 |
SRVCB07 | 10 | 3 | 15 | 4 | 9 | 207 | 398 | 798 | 79 |
SRVCB08 | 20 | 3 | 30 | 8 | 9 | 215 | 650 | 890 | 193 |
SRVCB09 | 30 | 3 | 45 | 12 | 9 | 350 | 680 | 1380 | 220 |
SRVCB10 | 50 | 3 | 75 | 24 | 9 | 406 | 962 | 2575 | 1092 |
