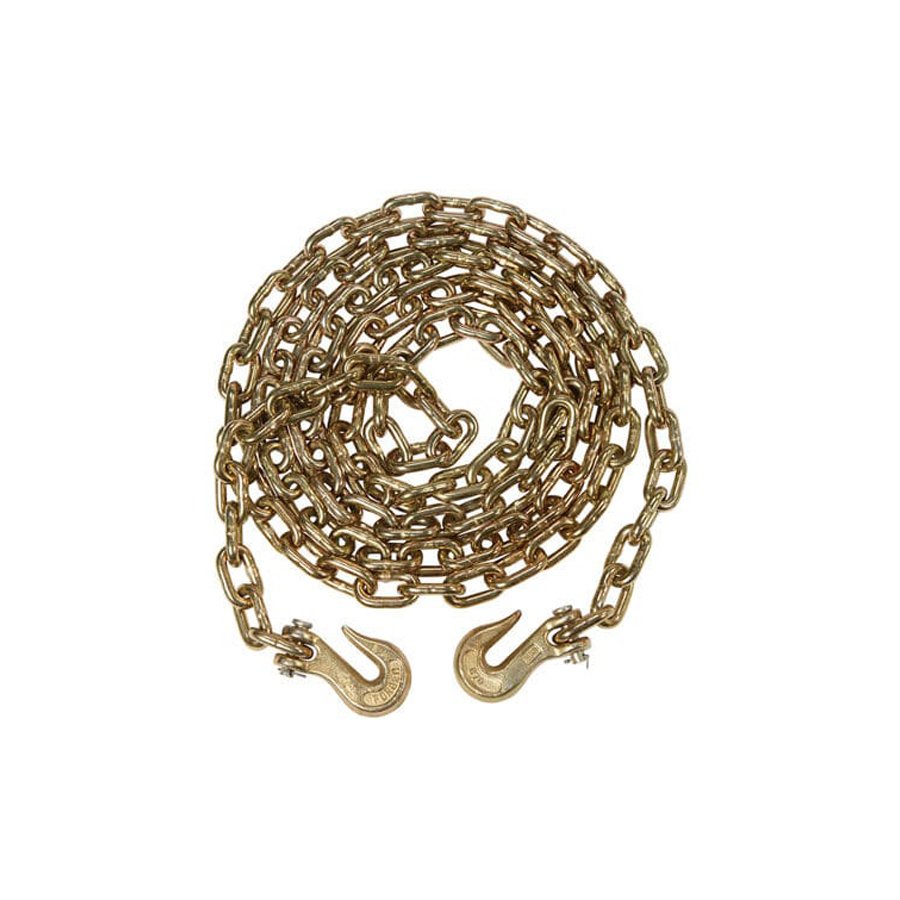

USA Standard Chain With Hooks (Clevis Hooks- Eye Hooks)
Product Description
Art No. | SIZE | ASTM80 | NACM90 | NACM96 | PC/DRUM | ||||||
WT | W.L. | B.L. | WT | W.L. | B.L. | WT | W.L. | B.L. | |||
KG | LB | LB | KG | LB | LB | KG | LB | LB | |||
GRADE 43 | |||||||||||
UCH4301 | 1/4×14′ | 5 | 2150 | 7750 | 4.5 | 2600 | 7500 | 4.5 | 2600 | 7800 | 50 |
UCH4302 | 1/4×16′ | 6 | 2150 | 7750 | 5 | 2600 | 7500 | 5 | 2600 | 7800 | 40 |
UCH4303 | 5/16×14′ | 7.5 | 3200 | 11600 | 6 | 3900 | 9700 | 7 | 3900 | 11700 | 35 |
UCH4304 | 5/16×16′ | 8.5 | 3200 | 11600 | 6.5 | 3900 | 9700 | 8 | 3900 | 11700 | 30 |
UCH4305 | 5/16×18′ | 9.5 | 3200 | 11600 | 7.5 | 3900 | 9700 | 9 | 3900 | 11700 | 30 |
UCH4306 | 5/16×20′ | 10.5 | 3200 | 11600 | 8 | 3900 | 9700 | 9.5 | 3900 | 11700 | 25 |
UCH4307 | 5/16×25′ | 13 | 3200 | 11600 | 10 | 3900 | 9700 | 12 | 3900 | 11700 | 20 |
UCH4308 | 5/16×30′ | 15.5 | 3200 | 11600 | 12 | 3900 | 9700 | 14 | 3900 | 11700 | 20 |
UCH4309 | 3/8×14′ | 10.5 | 4450 | 16200 | 9.5 | 5400 | 15200 | 10 | 5400 | 16200 | 25 |
UCH4310 | 3/8×16′ | 12 | 4450 | 16200 | 11 | 5400 | 15200 | 11.5 | 5400 | 16200 | 25 |
UCH4311 | 3/8×20′ | 15 | 4450 | 16200 | 13.5 | 5400 | 15200 | 13.5 | 5400 | 16200 | 20 |
UCH4312 | 3/8×25′ | 18.5 | 4450 | 16200 | 16.5 | 5400 | 15200 | 17.5 | 5400 | 16200 | 20 |
GRADE 70 | |||||||||||
UCH7001 | 1/4×14′ | 5 | 3150 | 12600 | 4.5 | 3150 | 12100 | 4 | 3150 | 12600 | 50 |
UCH7002 | 1/4×16′ | 6 | 3150 | 12600 | 5 | 3150 | 12100 | 5 | 3150 | 12600 | 40 |
UCH7003 | 5/16×14′ | 7.5 | 4700 | 18800 | 7 | 4700 | 18800 | 7 | 4700 | 18800 | 35 |
UCH7004 | 5/16×16′ | 8.5 | 4700 | 18800 | 8 | 4700 | 18800 | 8 | 4700 | 18800 | 30 |
UCH7005 | 5/16×18′ | 9.5 | 4700 | 18800 | 8.5 | 4700 | 18800 | 9 | 4700 | 18800 | 30 |
UCH7006 | 5/16×20′ | 10.5 | 4700 | 18800 | 9 | 4700 | 18800 | 10 | 4700 | 18800 | 25 |
UCH7007 | 5/16×25′ | 13 | 4700 | 18800 | 10 | 4700 | 18800 | 12 | 4700 | 18800 | 20 |
UCH7008 | 5/16×30′ | 15.5 | 4700 | 18800 | 12 | 4700 | 18800 | 14.5 | 4700 | 18800 | 20 |
UCH7009 | 3/8×14′ | 10.5 | 6600 | 26400 | 9.5 | 6600 | 24700 | 10 | 6600 | 26400 | 25 |
UCH7010 | 3/8×16′ | 12 | 6600 | 26400 | 11 | 6600 | 24700 | 11.5 | 6600 | 26400 | 20 |
UCH7011 | 3/8×20′ | 15 | 6600 | 26400 | 13.5 | 6600 | 24700 | 14.5 | 6600 | 26400 | 20 |
UCH7012 | 3/8×25′ | 18.5 | 6600 | 26400 | 16.5 | 6600 | 24700 | 18 | 6600 | 26400 | 15 |
