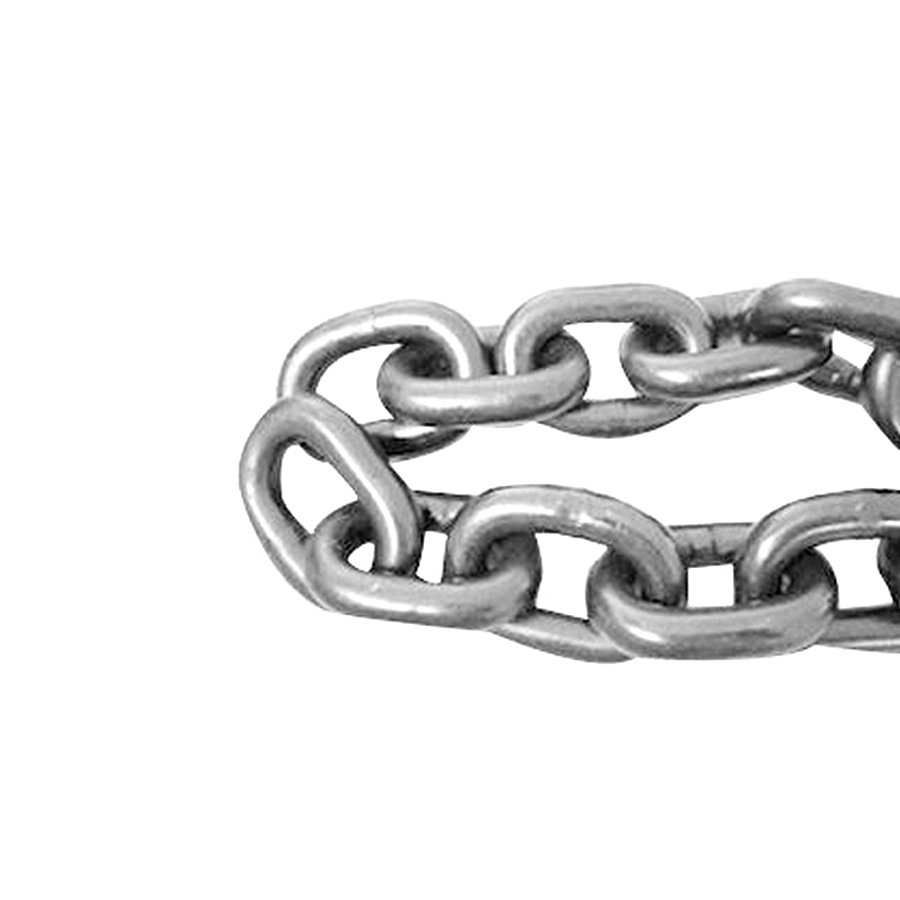

Ordinary Mild Steel Link Chain (Short Link Chain, Middle Link Chain)

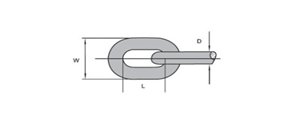

D

L

W

(KG)

IN

MM

MM

MM

KG

KG

BF

HDG

OMSCS01

1/8

3.2

16

12

200

400

11.4

11.74

OMSCS02

5/32

4

18.5

14.5

300

600

18.6

19

OMSCS03

3/16

4.7

19

17

400

800

26.2

27

OMSCS04

7/32

5.5

20

19

550

1100

36.8

38

OMSCS05

1/4

6.35

22

21

750

1500

50

51.5

OMSCS06

5/16

7.94

26

26

1200

2400

80

82.4

OMSCS07

3/8

9.5

28

32

1700

3400

122

125.7

OMSCS08

7/16

11.11

33

36

2300

4600

164

169

OMSCS09

1/2

12.7

39

43

3000

6000

210

216

OMSCS10

5/8

15.8

45

53

4700

9400

334

344

OMSCS11

3/4

19

55

63

6800

13600

485

499

OMSCS12

7/8

22.2

64

74

9250

18500

656

675

OMSCS13

1

25.4

73

84

12150

24300

870

896

D

L

W

(KG)

IN

MM

MM

MM

KG

KG

BF

HDG

OMSCM01

1/8

3.2

20

12

200

400

10.8

11

OMSCM02

5/32

4

23

15

300

600

17.4

18

OMSCM03

3/16

4.7

25

18

400

800

24.4

25

OMSCM04

7/32

5.5

26

19

550

1100

34

35

OMSCM05

1/4

6.35

26

23

750

1500

48.8

50

OMSCM06

5/16

7.94

32

29

1200

2400

76

78

OMSCM07

3/8

9.5

35

35

1700

3400

111

114

OMSCM08

7/16

11.11

38

38

2300

4600

154

158

OMSCM09

1/2

12.7

50

45.5

3000

6000

194

200

OMSCM10

5/8

15.8

60

56.7

4700

9400

303

312

OMSCM11

3/4

19

76

69

6800

13600

432

445

OMSCM12

7/8

22.2

90

80

9250

18500

586

603

OMSCM13

1

25.4

105

95

12150

24300

770

792

D

L

W

(KG)

IN

MM

MM

MM

KG

KG

BF

HDG

OMSCL01

1/8

3.2

23

12

200

400

10.4

10.7

OMSCL02

5/32

4

27

15

300

600

16.6

17.5

OMSCL03

3/16

4.7

31

17

400

800

22.4

23.3

OMSCL04

7/32

5.5

32

19

550

1100

32

33

OMSCL05

1/4

6.35

33

21

750

1500

43.5

44.8

OMSCL06

5/16

7.94

48

31

1200

2400

68

70

OMSCL07

3/8

9.5

60

37

1700

3400

96

99

OMSCL08

7/16

11.11

71

41

2300

4600

126

129

OMSCL09

1/2

12.7

85

48.5

3000

6000

167

172

OMSCL10

5/8

15.8

114

61.5

4700

9400

256

264

OMSCL11

3/4

19

125

75

6800

13600

381

392

OMSCL12

7/8

22.2

140

88

9250

18500

527

543

OMSCL13

1

25.4

155

100

12150

24300

696

716
