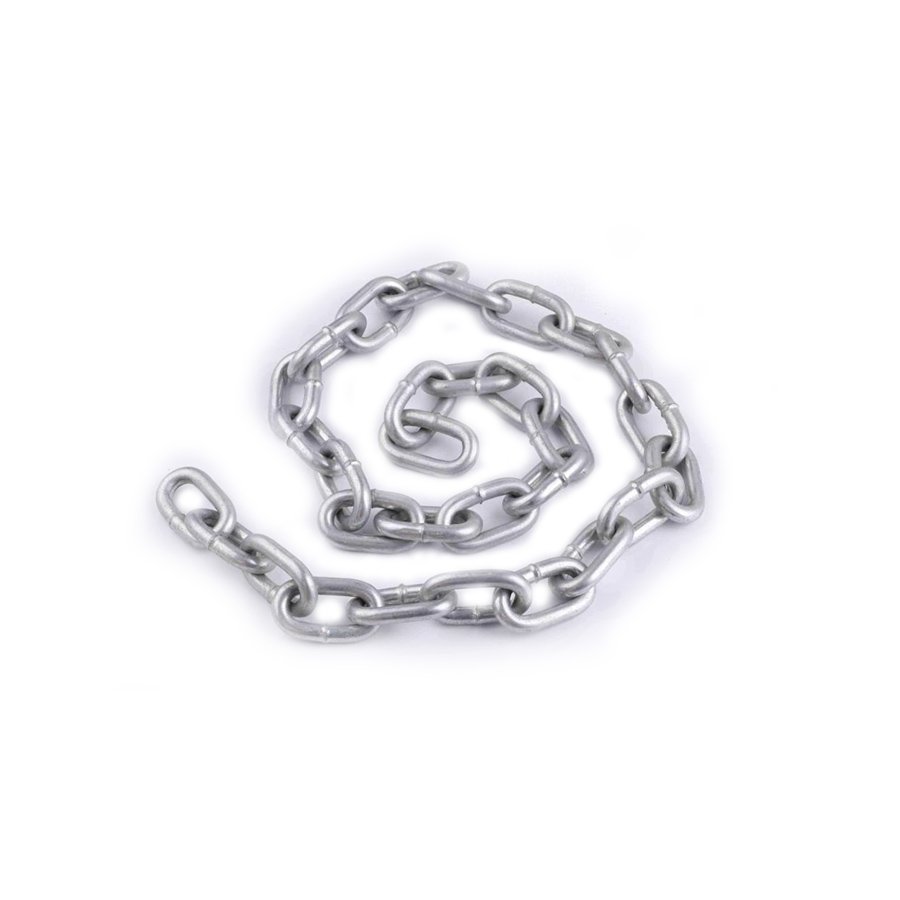

DIN5685 A-C Short-Long Link Chain
Product Description

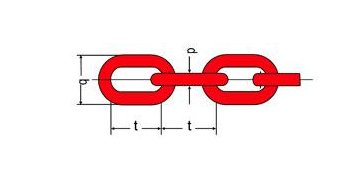

Art No. | SIZE | INSIDE LENGTH | OUTSIDE WIDTH | WEIGHT PER 100M | TEST LOAD | BREAKING LOAD | TYPE OF LINK |
d MM | t MM | b MM | KG | N | N | ||
DIN568502 | 2 | 12 | 8 | 7 | 500 | 1250 | A |
DIN568503 | 22 | 6 | C | ||||
DIN568504 | 2.5 | 14 | 10 | 11 | 750 | 2000 | A |
DIN568505 | 24 | 10 | C | ||||
DIN568506 | 3 | 16 | 12 | 16.5 | 1120 | 2800 | A |
DIN568507 | 26 | 15 | C | ||||
DIN568508 | 4 | 19 | 16 | 30 | 2000 | 5000 | A |
DIN568509 | 32 | 27 | C | ||||
DIN568510 | 5 | 21 | 20 | 50 | 3150 | 7750 | A |
DIN568511 | 35 | 43 | C | ||||
DIN568512 | 6 | 24 | 24 | 73 | 4500 | 11500 | A |
DIN568513 | 42 | 63 | C | ||||
DIN568514 | 7 | 28 | 28 | 100 | 6000 | 15000 | A |
DIN568515 | 49 | 86 | C | ||||
DIN568516 | 8 | 32 | 32 | 130 | 8000 | 20000 | A |
DIN568517 | 52 | 110 | C | ||||
DIN568518 | 9 | 36 | 36 | 165 | 10000 | 25000 | A |
DIN568519 | 59 | 141 | C | ||||
DIN568520 | 10 | 40 | 40 | 205 | 12500 | 31000 | A |
DIN568521 | 65 | 175 | C | ||||
DIN568522 | 11 | 44 | 44 | 250 | 15000 | 38000 | A |
DIN568523 | 72 | 211 | C | ||||
DIN568524 | 12 | 48 | 48 | 290 | 18000 | 45000 | A |
DIN568525 | 78 | 255 | C | ||||
DIN568526 | 13 | 52 | 52 | 345 | 21200 | 53000 | A |
DIN568527 | 82 | 295 | C |
