Material: AISI316 or AISI304
Surface: High Polish and Electric Polish
Size:6mm-22mm

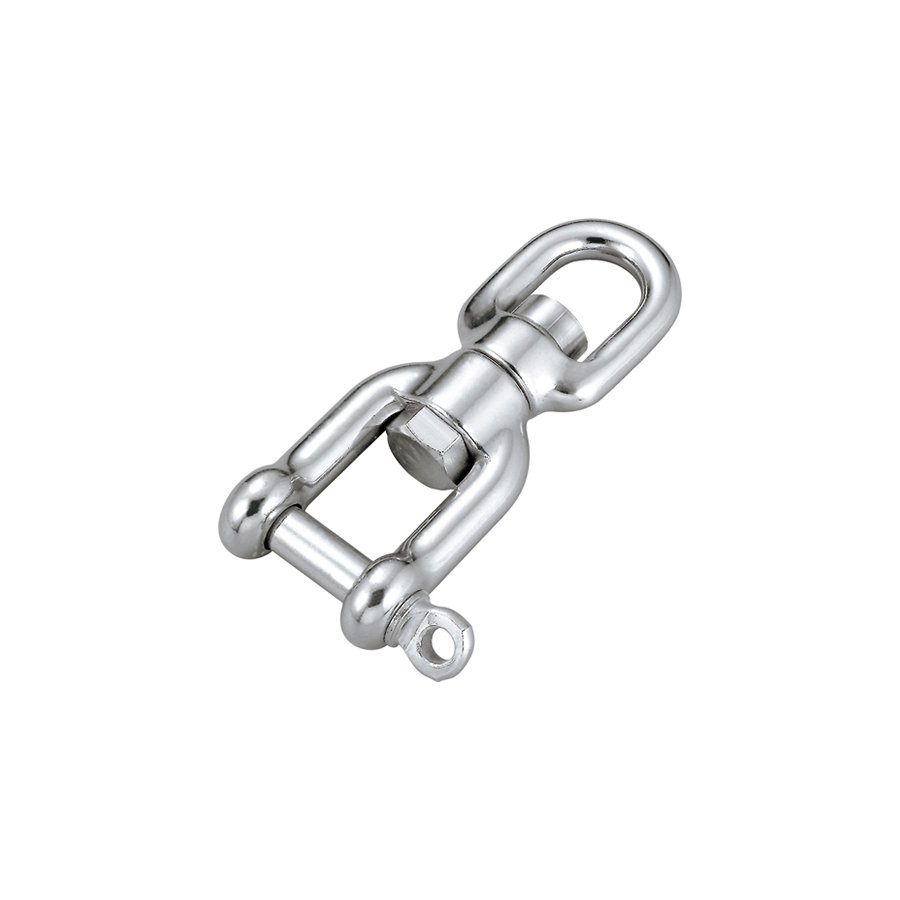

Stainless Steel Swivel Eye And Jaw
Material: AISI316 or AISI304
Surface: High Polish and Electric Polish
Size:6mm-22mm
Product Description

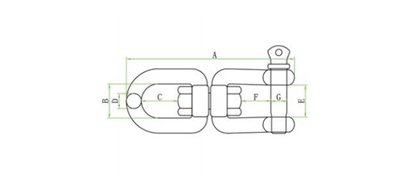

No. | SIZE(mm) | D(mm) | G(mm) | A(mm) | B(mm) | F(mm) | L3(mm) | B1(mm) | E(mm) |
SRSSE06 | 6 | 6 | 6 | 62 | 15 | 11 | 51 | 15 | 12 |
SRSSE08 | 8 | 8 | 8 | 90 | 22 | 17 | 71 | 21 | 16 |
SRSSE10 | 10 | 10 | 10 | 113 | 27 | 22 | 90 | 24 | 20 |
SRSSE13 | 13 | 10 | 13 | 138 | 26 | 26 | 108 | 24 | 26 |
SRSSE16 | 16 | 13 | 16 | 173 | 35 | 33 | 136 | 31 | 32 |
SRSSE19 | 19 | 16 | 19 | 209 | 41 | 39 | 164 | 38 | 38 |
SRSSE22 | 22 | 21 | 22 | 247 | 49 | 45 | 193 | 42 | 44 |
