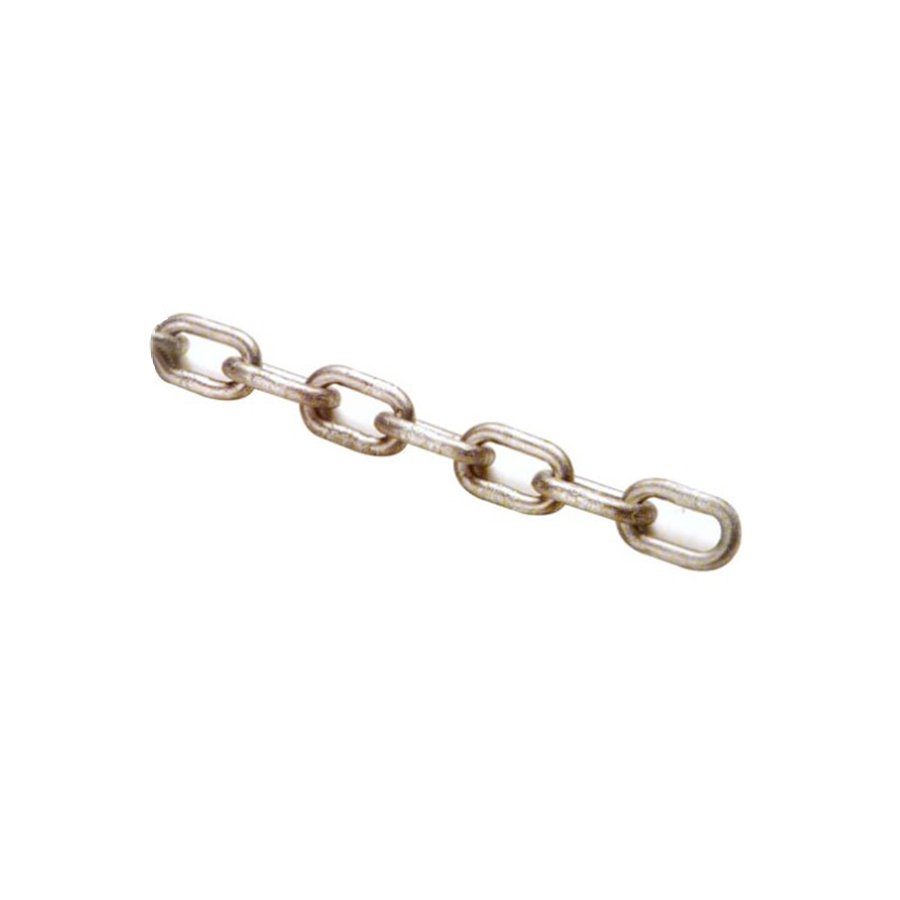

Stainless Steel Din764 Link Chain
Product Description
Art No. | SIZE d | INSIDE LENGTH t | INSIDE WIDTH b1 | OUTSIDE WIDTH b2 | LENGTH PER 11 LINKS | WEIGHT/100M | BREAKING STRENGTH | PROOF TEST | |||
MM | +-MM | MM | +-MM | MM | MM | MM | +-MM | KG | KN | KG | |
DIN76401 | 4 | 0.2 | 16 | 0.3 | 5 | 14 | 176 | 1.6 | 31.3 | 7 | 400 |
DIN76402 | 0.2 | 0.9 | |||||||||
DIN76403 | 5 | 0.2 | 18 | 0.4 | 7 | 18.2 | 198 | 1.8 | 51.4 | 11.8 | 680 |
DIN76404 | 0.2 | 1 | |||||||||
DIN76405 | 6 | 0.2 | 21 | 0.5 | 8 | 21.5 | 231 | 2 | 74 | 16.5 | 850 |
DIN76406 | 0.2 | 1.1 | |||||||||
DIN76407 | 8 | 0.2 | 28 | 0.5 | 11 | 29 | 308 | 2.2 | 131.5 | 32 | 1680 |
DIN76408 | 0.3 | 1.2 | |||||||||
DIN76409 | 10 | 0.3 | 35 | 0.6 | 14 | 36 | 385 | 2.7 | 200 | 50 | 2630 |
DIN76410 | 0.3 | 1.5 | |||||||||
DIN76411 | 13 | 0.4 | 45 | 0.7 | 18 | 47 | 495 | 3.5 | 350 | 80 | 4200 |
DIN76412 | 0.4 | 2 | |||||||||
DIN76413 | 16 | 0.5 | 56 | 0.9 | 22 | 58 | 616 | 4.3 | 520 | 125 | 6700 |
DIN76414 | 0.5 | 2.5 | |||||||||
DIN76415 | 18 | 0.8 | 63 | 1 | 24 | 65 | 693 | 4.7 | 650 | 160 | 8400 |
DIN76416 | 0.5 | 2.8 | |||||||||
DIN76417 | 20 | 1 | 70 | 1.1 | 27 | 72 | 770 | 5.4 | 820 | 200 | 10000 |
DIN76418 | 0.6 | 3.2 | |||||||||
DIN76419 | 23 | 1.2 | 80 | 1.3 | 31 | 83 | 880 | 6.2 | 1100 | 250 | 13000 |
DIN76420 | 0.7 | 3.5 | |||||||||
DIN76421 | 26 | 1.3 | 91 | 1.5 | 35 | 94 | 1001 | 7 | 1400 | 320 | 16000 |
