Material: Stainless Steel AISI316 or AISI304
Surface: High Polished

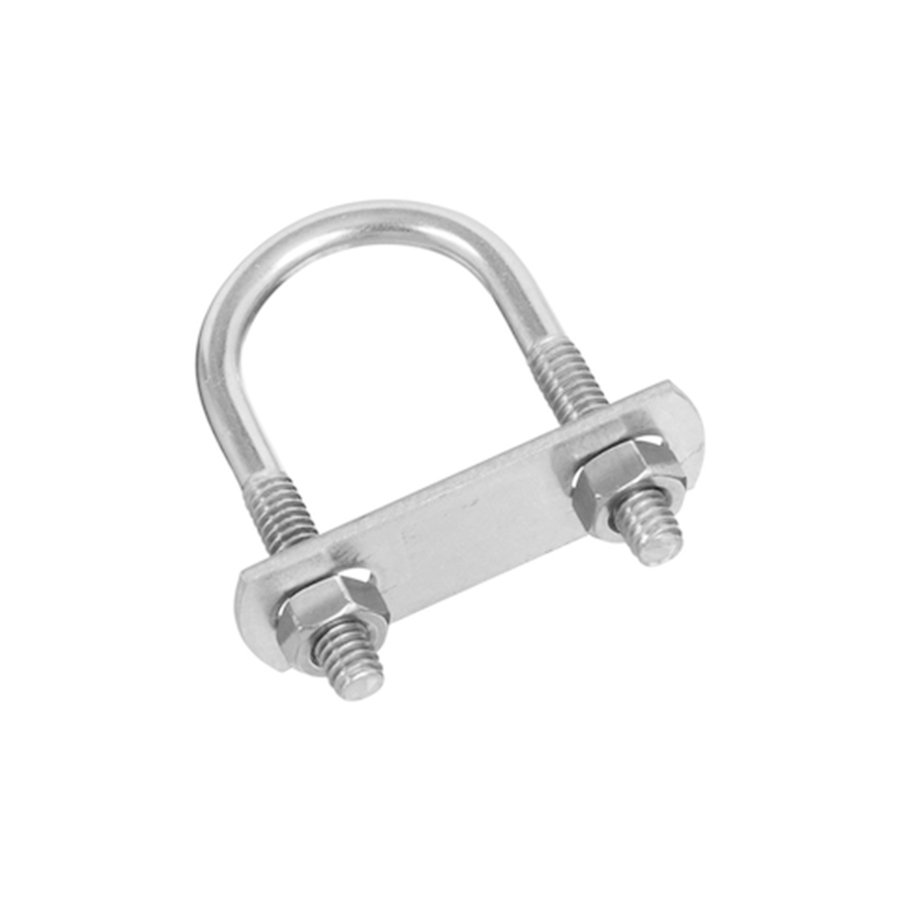

Stainless Steel U Bolt With Washer Plate and Nuts
Material: Stainless Steel AISI316 or AISI304
Surface: High Polished
Product Description
ITEM NO. | SIZE | A | B | D | L1 | L2 | WT |
mm | mm | mm | mm | mm | mm | Kg | |
SRSSUB01 | M4X62 | 30 | 30 | 6 | 25 | 37 | 0.03 |
SRSSUB02 | M5X78 | 35 | 40 | 7 | 30 | 48 | 0.05 |
SRSSUB03 | M6X90 | 35 | 45 | 8 | 35 | 55 | 0.07 |
SRSSUB04 | M8X100 | 35 | 52 | 10 | 38 | 62 | 0.11 |
SRSSUB05 | M8X120 | 45 | 62 | 10 | 47 | 73 | 0.14 |
SRSSUB06 | M10X130 | 50 | 60 | 12 | 55 | 75 | 0.25 |
SRSSUB07 | M12X150 | 60 | 65 | 14 | 65 | 85 | 0.4 |
