Material: Stainless Steel AISI316 or AISI304
Surface: High Polished and Electric Polished
Size: M6-M24

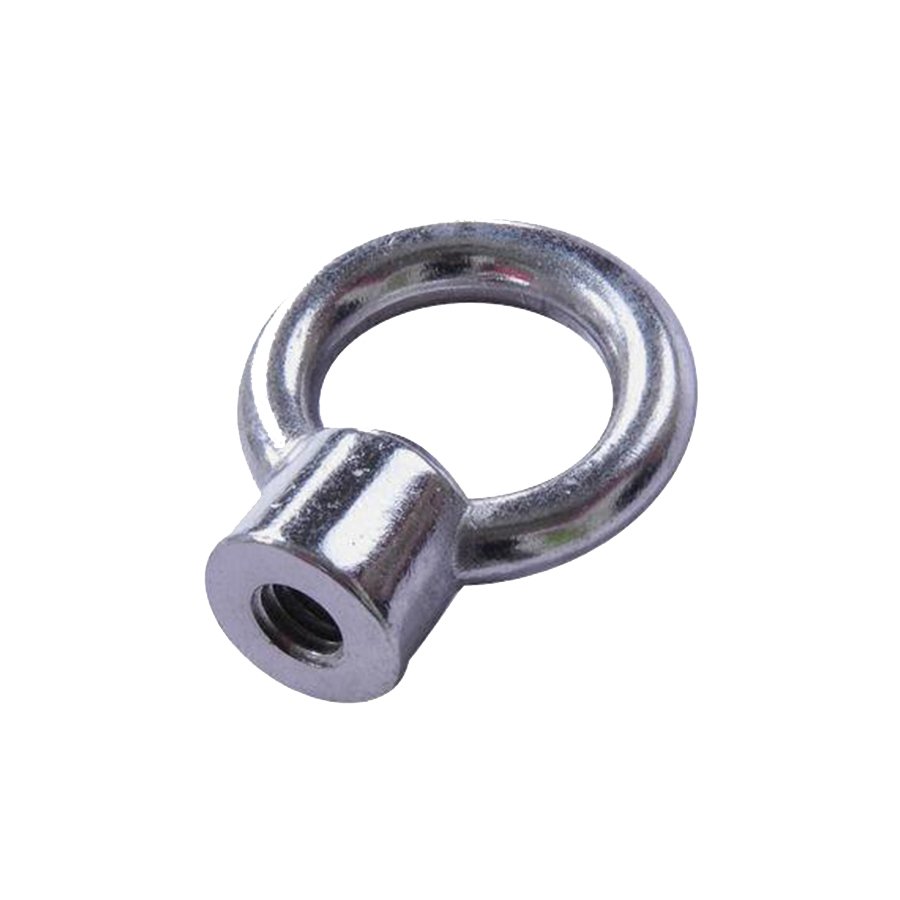

Stainless Steel JIS1169 Eye Nut
Material: Stainless Steel AISI316 or AISI304
Surface: High Polished and Electric Polished
Size: M6-M24
Product Description

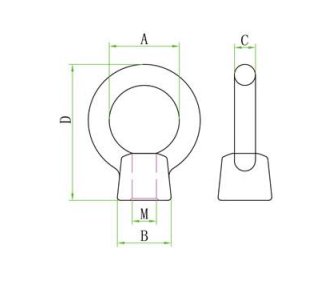

ITEM CODE | SIZE | A | B | C | D | WLL kg | WT KG |
SRJISN01 | M6 | 16.5 | 12 | 5 | 31 | 50 | 0.015 |
SRJISN02 | M8 | 20 | 15 | 5.7 | 39 | 80 | 0.025 |
SRJISN03 | M10 | 25 | 19 | 7 | 47.5 | 150 | 0.05 |
SRJISN04 | M12 | 30 | 22.5 | 9 | 57.5 | 220 | 0.093 |
SRJISN05 | M16 | 36 | 28 | 11 | 69 | 450 | 0.164 |
SRJISN06 | M20 | 40 | 32 | 15 | 79 | 630 | 0.291 |
SRJISN07 | M24 | 50 | 41 | 18 | 102 | 950 | 0.573 |
