Material: Stainless Steel 304/ stainless steel 316.
Surface: High Polish.
Size: M6-M64.

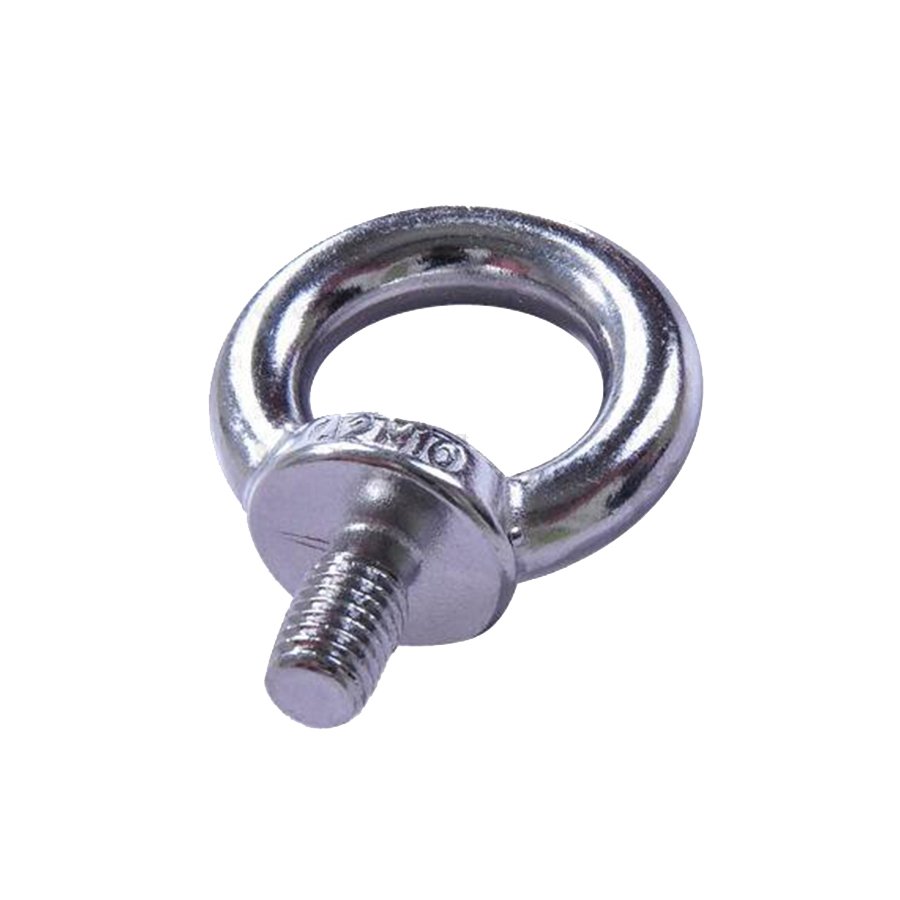

Stainless Steel DIN580 Eye Bolt
Material: Stainless Steel 304/ stainless steel 316.
Surface: High Polish.
Size: M6-M64.
Product Description
Item No. | SIZE | A | B | C | D | E | W.L.L |
mm | mm | mm | mm | mm | mm | Ton | |
SRSSEBD01 | M6 | 16 | 28 | 25.5 | 6 | 6 | 0.07 |
SRSSEBD02 | M8 | 20 | 36 | 36 | 8 | 8 | 0.14 |
SRSSEBD03 | M10 | 25 | 45 | 44.5 | 10 | 10 | 0.23 |
SRSSEBD04 | M12 | 30 | 54 | 53 | 12 | 12 | 0.34 |
SRSSEBD05 | M14 | 35 | 63 | 61.5 | 14 | 14 | 0.52 |
SRSSEBD06 | M16 | 35 | 63 | 61.5 | 16 | 14 | 0.7 |
SRSSEBD07 | M20 | 40 | 72 | 71 | 20 | 16 | 1.2 |
SRSSEBD08 | M22 | 45 | 81 | 80.5 | 22 | 18 | 1.5 |
SRSSEBD09 | M24 | 50 | 90 | 90 | 24 | 20 | 1.8 |
SRSSEBD10 | M30 | 60 | 108 | 109 | 30 | 24 | 3.6 |
SRSSEBD11 | M33 | 60 | 108 | 109 | 33 | 24 | 4.3 |
SRSSEBD12 | M36 | 70 | 126 | 128 | 36 | 28 | 5.1 |
SRSSEBD13 | M42 | 80 | 144 | 147 | 42 | 32 | 7 |
SRSSEBD14 | M45 | 80 | 144 | 147 | 45 | 32 | 8 |
SRSSEBD15 | M48 | 90 | 166 | 168 | 48 | 38 | 8.6 |
SRSSEBD16 | M52 | 90 | 166 | 168 | 52 | 38 | 9.9 |
