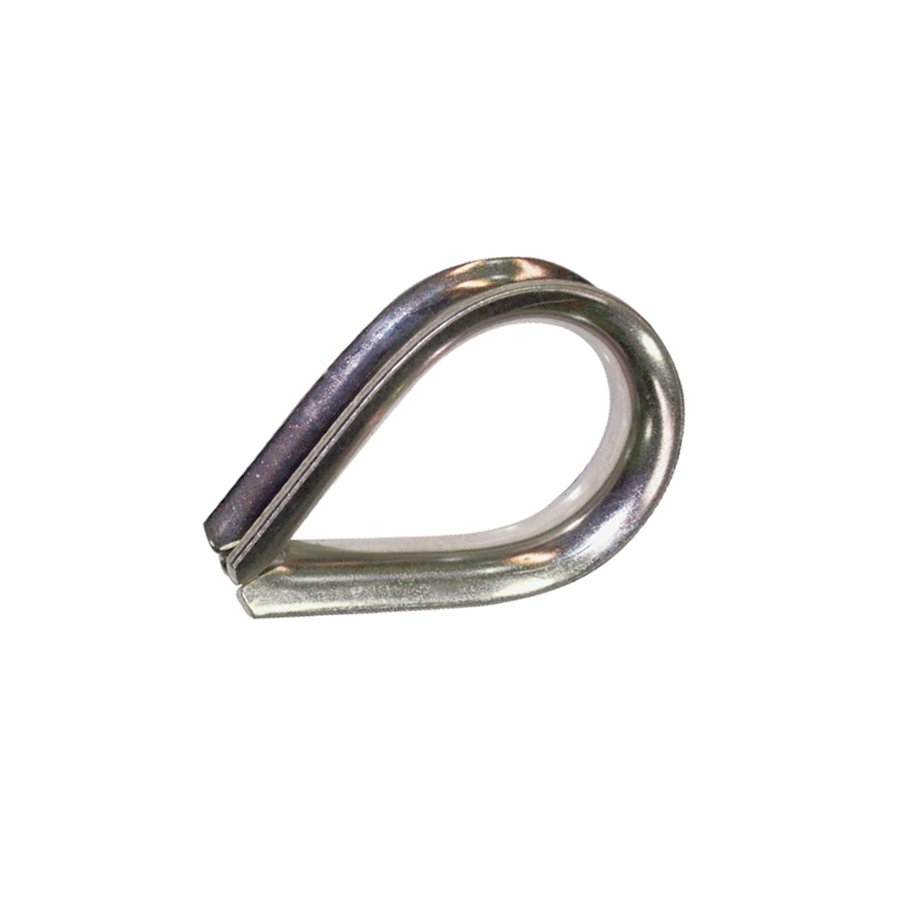

Stainless Steel European Type Thimble
Material: Stainless steel 316 or stainless steel 304 or steel
Surface finish: highly polished or hot dip galvanized or electro galvanized
Customer design: our experienced engineer team can developed the products and manufacture in accordance with samples, drawings or only ideas
Product Description
Art No. | Size | A | B | L | S | Weight |
(mm) | (mm) | (mm) | (mm) | (mm) | (kg/100) | |
SSET02 | 2 | 2 | 7 | 10 | 1 | 0.2 |
SSET02-A | 2.5 | 2.5 | 8 | 14 | 1 | 0.2 |
SSET03 | 3 | 3 | 10 | 17 | 1 | 0.4 |
SSET04 | 4 | 4 | 11 | 18 | 1 | 0.5 |
SSET05 | 5 | 5.5 | 13 | 20 | 1.2 | 0.7 |
SSET06 | 6 | 6.5 | 15 | 25 | 1.2 | 1 |
SSET08 | 8 | 9 | 18 | 33 | 1.5 | 1.8 |
SSET10 | 10 | 11 | 23 | 41 | 2 | 3.8 |
SSET12 | 12 | 14 | 27 | 48 | 2 | 5 |
SSET14 | 14 | 15 | 34 | 53 | 2.5 | 10 |
SSET16 | 16 | 17 | 36 | 57 | 3 | 12.5 |
SSET18 | 18 | 19 | 40 | 67 | 3 | 16 |
SSET20 | 20 | 22 | 45 | 75 | 4 | 26.5 |
SSET22 | 22 | 24 | 52 | 84 | 4 | 32.5 |
SSET24 | 24 | 26 | 56 | 96 | 5 | 46 |
SSET28 | 28 | 30 | 65 | 115 | 6 | 80 |
SSET32 | 32 | 34 | 82 | 144 | 6 | 105 |
SSET36 | 36 | 40 | 94 | 170 | 6 | 142 |
