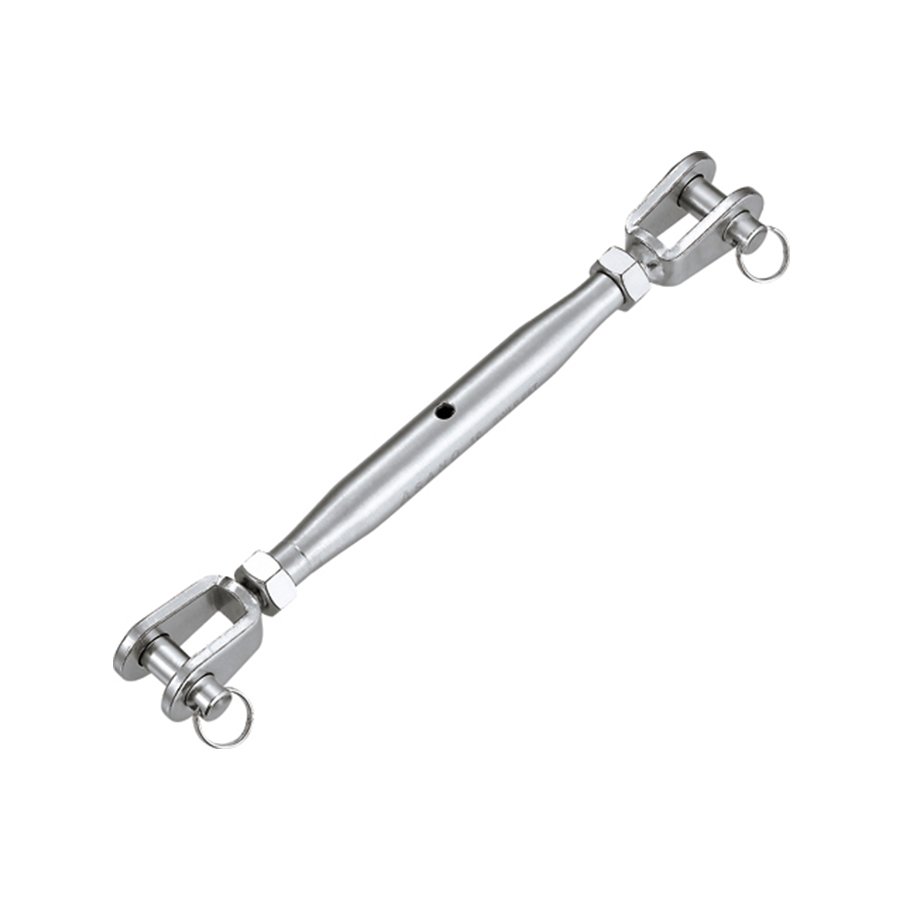

Stainless Steel Turnbuckle Pipe Body Jaw And Jaw
Material: Stainless steel 316 or stainless steel 304 or steel
Surface finish: highly polished or hot dip galvanized or electro galvanized
Customer design: our experienced engineer team can developed the products and manufacture in accordance with samples, drawings or only ideas
Type: European type turnbuckle, US turnbuckle, Korean turnbuckle, DIN1480 turnbuckle and JIS turnbuckle and so on
Packing: clean poly bags plus cartons plus pallets
Product Description
Art. No. | Thread Size | S | d | D1 | L1 | L3 | KG/100 | B.L.KG. |
mm | mm | mm | mm | mm | ||||
SSTP04 | M4 | 5.5 | 4 | 8 | 110 | 170 | 3.6 | 500 |
SSTP05 | M5 | 6.5 | 5 | 10 | 130 | 190 | 5.6 | 800 |
SSTP05A | M5 | 7.5 | 5 | 9 | 130 | 190 | 4.7 | 800 |
SSTP06 | M6 | 7.5 | 6 | 10 | 150 | 220 | 8.6 | 1300 |
SSTP06A | M6 | 8 | 6 | 10 | 150 | 220 | 8.3 | 1250 |
SSTP08 | M8 | 11 | 8 | 11 | 165 | 240 | 15.5 | 2350 |
SSTP10 | M10 | 12 | 9 | 14 | 190 | 280 | 28 | 3500 |
SSTP12 | M12 | 14 | 12 | 20 | 245 | 360 | 53 | 5100 |
SSTP14 | M14 | 15 | 12 | 22 | 270 | 390 | 64.5 | 5900 |
SSTP16 | M16 | 17 | 16 | 26 | 310 | 450 | 118 | 8000 |
SSTP20 | M20 | 20 | 19 | 30 | 360 | 510 | 203 | 13000 |
SSTP22 | M22 | 30 | 22 | 46.5 | 472 | 653 | 448 | 17000 |
SSTP24 | M24 | 30 | 25 | 49 | 520 | 750 | 638 | 20000 |
SSTP27 | M27 | 34 | 28 | 54 | 595 | 830 | 752 | 27000 |
SSTP30 | M30 | 40 | 32 | 62 | 660 | 915 | 948 | 31000 |
SSTP36 | M36 | 44 | 36 | 70 | 730 | 1000 | 1366 | 43000 |
