Material: Stainless steel 316/304
Rigging Screw (closed body turnbuckle), Open Body Turnbuckle,
Thread Terminal (swage stud terminal), Eye Terminal, Welded and Machined Fork Terminal, Lag Screw Terminal.

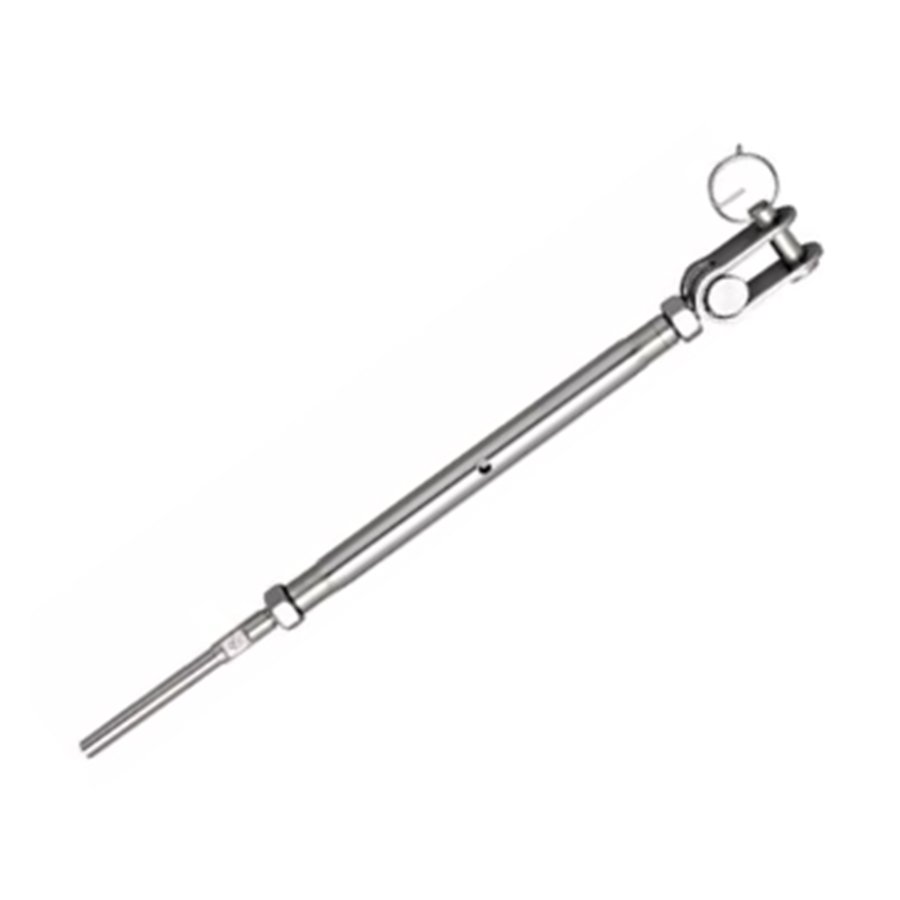

Stainless Steel Jaw & Swage Stud European Type Formed & Machined Rigging Screw
Material: Stainless steel 316/304
Rigging Screw (closed body turnbuckle), Open Body Turnbuckle,
Thread Terminal (swage stud terminal), Eye Terminal, Welded and Machined Fork Terminal, Lag Screw Terminal.
Product Description

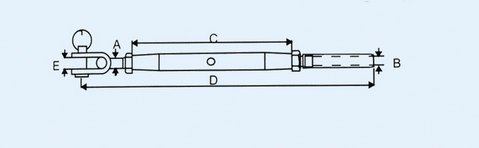

Code No. | A | WRIE | C | D | E | B | WLL | WT |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (Tons) | (Kgs) | |
SR262-0005 | M5 | 2.5 | 50 | 145 | 6.5 | 5 | 0.125 | 0.05 |
SR262-0006 | M6 | 3 | 90 | 165 | 7 | 6 | 0.35 | 0.08 |
SR262-0008 | M8 | 4 | 105 | 195 | 11 | 8 | 0.7 | 0.15 |
SR262-0010 | M10 | 5 | 125 | 220 | 12 | 9 | 1 | 0.23 |
SR262-0012 | M12 | 6 | 150 | 285 | 14 | 12 | 1.5 | 0.45 |
SR262-0014 | M14 | 7 | 165 | 305 | 15 | 12 | 1.6 | 0.5 |
SR262-0016 | M16 | 8 | 190 | 350 | 17 | 16 | 2.3 | 1.08 |
SR262-0020 | M20 | 10 | 210 | 105 | 20 | 19 | 2.3 | 2.35 |
