Stainless Steel US Type Shackle
Material: Stainless steel 316 or stainless steel 304 or steel.
Surface finish: Highly polished or hot dip galvanized or electro galvanized.
Customer design: Our experienced engineer team can developed the products and manufacture in accordance with samples, drawings or only ideas.
Type: D shackle, bow shackle, long D shackle, twist shackle, wide D shackle, chain shackle, anchor shackle, plate shackle, stamped shackle and so on.
Packing: Gunny bag/carton, pallet or as your needs.
Product Description

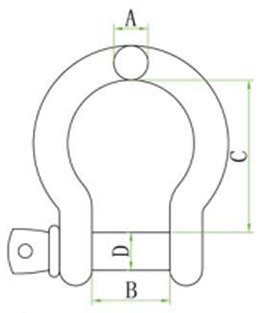

Part No. | Size inch | A | D | B | C | WLL |
inch | inch | inch | inch | lbs | ||
SSUSBS01 | 3/16″ | 3/16″ | 1/4″ | 0.38″ | 0.88″ | 300 |
SSUSBS02 | 1/4″ | 1/4″ | 5/16″ | 0.47″ | 1.13″ | 450 |
SSUSBS03 | 5/16″ | 5/16″ | 3/8″ | 0.53″ | 1.22″ | 650 |
SSUSBS04 | 3/8″ | 3/8″ | 7/16″ | 0.66″ | 1.44″ | 1000 |
SSUSBS05 | 7/16″ | 7/16″ | 1/2″ | 0.75″ | 1.69″ | 1500 |
SSUSBS06 | 1/2″ | 1/2″ | 5/8″ | 0.81″ | 1.88″ | 2200 |
SSUSBS07 | 5/8″ | 5/8″ | 3/4″ | 1.05″ | 2.38″ | 3000 |
SSUSBS08 | 3/4″ | 3/4″ | 7/8″ | 1.25″ | 2.81″ | 4500 |
SSUSBS09 | 7/8″ | 7/8″ | 1″ | 1.44″ | 3.31″ | 6000 |
SSUSBS10 | 1″ | 1″ | 1-1/8″ | 1.69″ | 3.75″ | 8000 |
SSUSBS11 | 1-1/8″ | 1-1/8″ | 1-1/4″ | 1.81″ | 4.25″ | 10500 |
