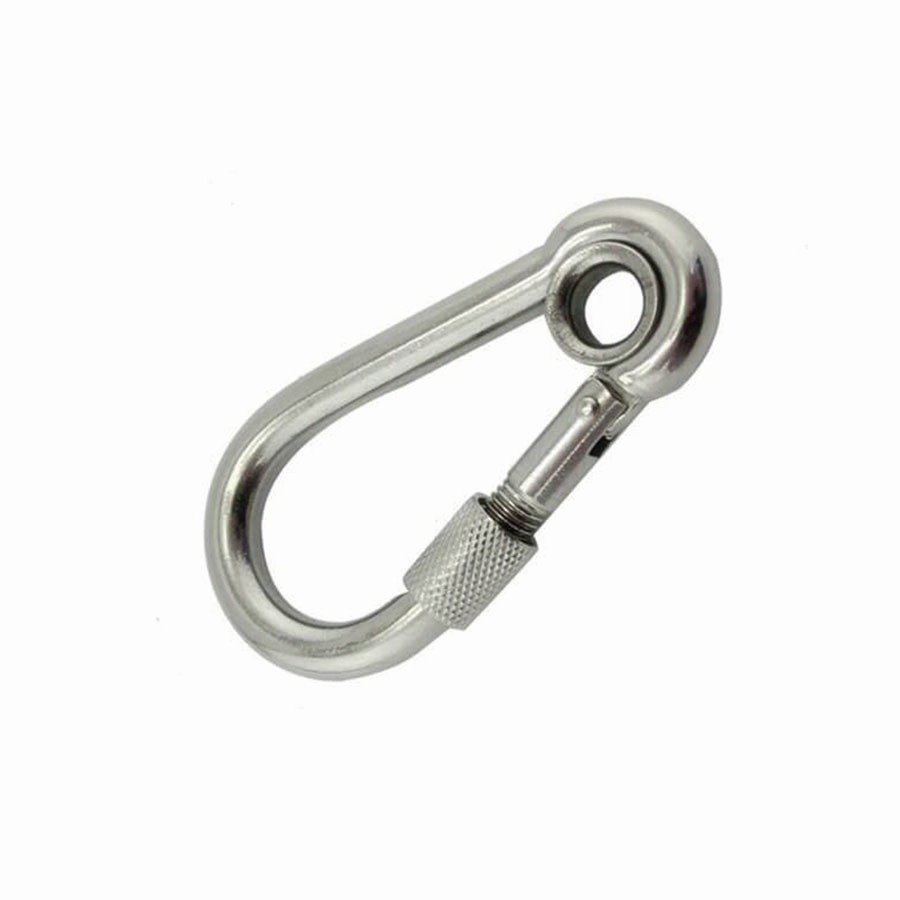

Snap Hook With Eyelet And Screw

Your current location:

Material: Stainless steel 316 or stainless steel 304 or Aluminium. Alloy steel.

Surface finish: highly polished or hot dip galvanized or electro galvanized.

Customer design: our experienced engineer team can developed the products and manufacture in accordance with samples, drawings or only ideas.

Type: Stainless Steel Snap Hook With Eyelet,Stainless Steel DIN 5299C,Stainless Steel Pear Shaped Snap Hook,Spring Hook, Snap Hook,Carbine Hook With Screw and Eye,Carbine Hook With Eye,and so on.

Packing: clean poly bags plus cartons plus pallets.

Product Description

Art No.	Size	D	L	A	E
	(mm)	(mm)	(mm)	(mm)	(mm)
SRSEDIN01	4×40	4	40	6.5	6
SRSEDIN02	5×50	5	50	8	7
SRSEDIN03	6×60	6	60	9	8
SRSEDIN04	7×70	7	70	10.5	8
SRSEDIN05	8×80	8	80	12	9
SRSEDIN06	9×90	9	90	13	10
SRSEDIN07	10×100	10	100	15	12
SRSEDIN08	11×120	11	120	18	16
SRSEDIN09	12×140	12	140	20	19
SRSEDIN10	13×160	13	160	22	25
SRSEDIN11	14×180	14	180	22	35

Our main products include:
1. Stainless steel rigging hardware: Rigging Screw (closed body turnbuckle), Open Body Turnbuckle,
Thread Terminal (swage stud terminal), Eye Terminal, Welded and Machined Fork Terminal, Lag Screw Terminal,
Shackle, Snap Hook, Spring Hook, U Bolt, Eye Bolt (DIN580, DIN582, JIS1168, JIS1169,USType)
Wire Rope Clips (DIN741,US Type, Wire Net Clips, Adjustable Wire Clips, Wire Stopper), Copper ferrule and aluminum ferrule ETC.
2. Stainless steel marine hardware:Anchor, Cleat, Deck Hardware,Bollard, Chock, Pipe Fitting.
3. Stainless steel and steel wire rope: 1×7,1×19,7×7,7×19 and with PVC coated. Surface:self color or galvanized or HDG.
4. Stainless steel and steel chain: DIN763,DIN766,DIN5685, ASTM, NACM, Anchor Chain.Self color or galvanized or HDG.
