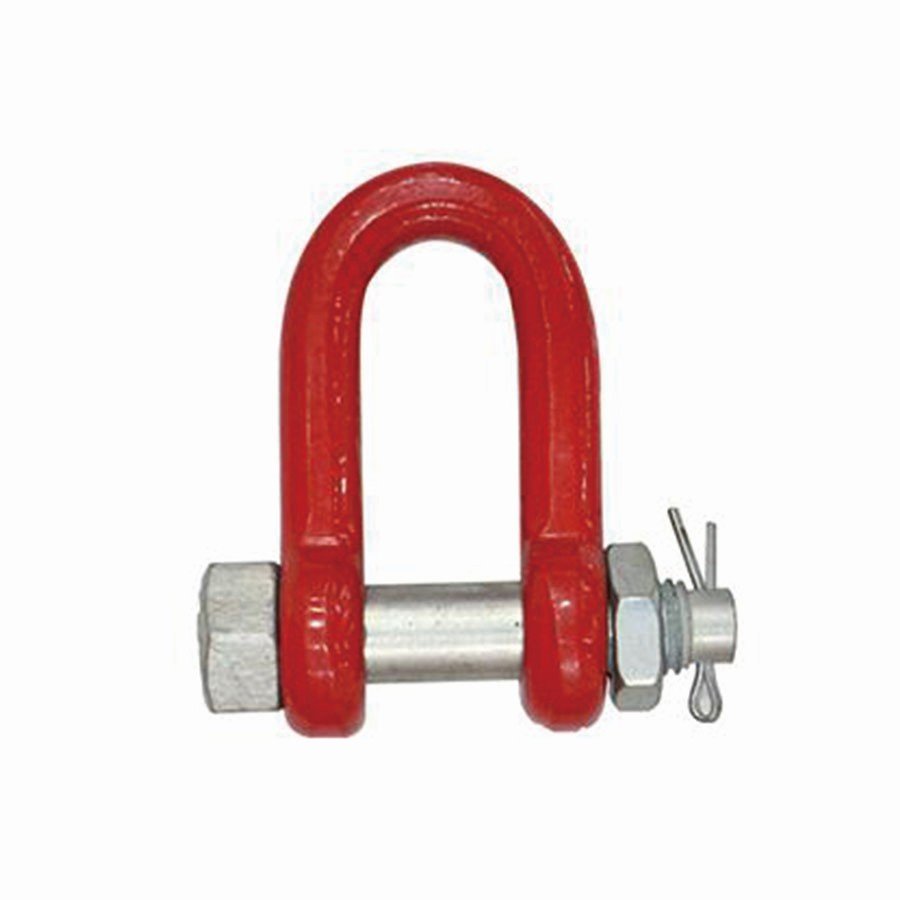

G80 Alloy Steel Shackles

G80 Alloy Steel Shackles

Features
● It can be matched with EN818-2.G80 chains which can meet the standard
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: Red RAL3020 / Yellow RAL1003.
● It can not be used beyond the working load limit.

Product Description

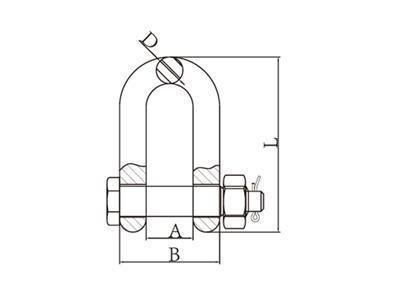

Parameters (Unit: mm)

Item Code

Weight (kg)

Working Load Limit/t

Breaking Load/t

A±1.2

B±2

D±0.5

L±2

8-SR049-7/8

0.14

2

8

15

32

9

56

8-SR049-10

0.274

3.15

12.6

21

43

11.5

71

8-SR049-13

0.5

5.3

21.2

25

51

14.5

91

8-SR049-16

0.89

8

32

30

63

17.5

111

Ultimate load is 4 times the Working Load Limit.
Normal mark: 10-8 WLL3.15T CE SR +BATCH NUMBER
