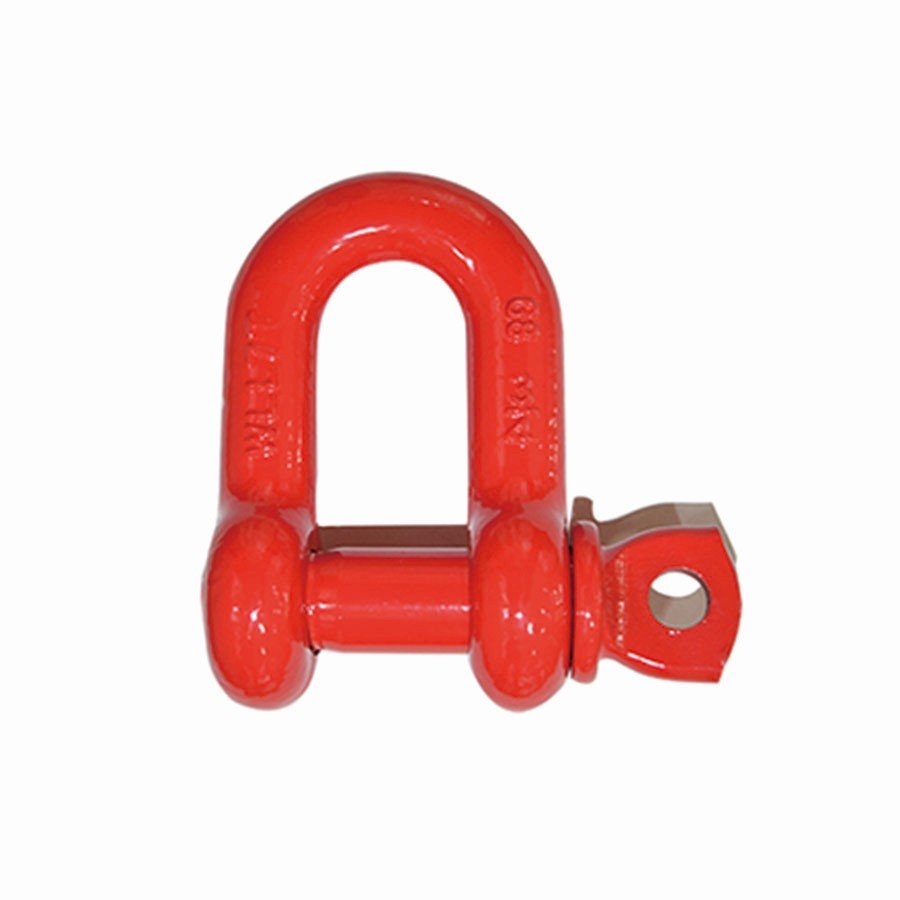

SR759-G8 BOLT TYPE ALLOY BOW SHACKLE
Product Description

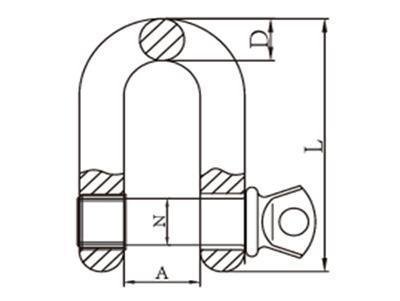

Parameters (Unit: mm)
Item Code | Weight/lbs | Working Load Limit/t | Breaking Load/t | A±1.5 | D±1 | L±3 | N |
SR-759-5/16 | 0.17 | 1.2 | 6 | 13.5 | 8 | 48.5 | 9.5 |
SR-759-3/8 | 0.28 | 1.6 | 8 | 16.8 | 9.7 | 58.4 | 11 |
SR-759-7/16 | 0.43 | 2.5 | 12.5 | 19 | 11.2 | 67.6 | 13 |
SR-759-1/2 | 0.59 | 3.3 | 16.5 | 20.6 | 12.7 | 77 | 16 |
SR-759-5/8 | 1.25 | 5 | 25 | 27 | 17.5 | 97.3 | 19 |
SR-759-3/4 | 2.63 | 7 | 35 | 32 | 20.6 | 116.6 | 22 |
SR-759-7/8 | 3.16 | 9.5 | 47.5 | 36.6 | 24.6 | 135.4 | 25 |
SR-759-1 | 4.75 | 12.5 | 62.5 | 43 | 27 | 152.4 | 28 |
SR-759-1-1/8 | 6.75 | 15 | 75 | 46 | 31.8 | 172.4 | 32 |
SR-759-1-1/4 | 9.06 | 18 | 90 | 51.6 | 35 | 190.5 | 35 |
SR-759-1-3/8 | 11.63 | 21 | 105 | 57 | 35 | 206.8 | 38 |
SR-759-1-1/2 | 15.95 | 30 | 150 | 60.5 | 41 | 230.1 | 42 |
SR-759-1-3/4 | 26.75 | 40 | 200 | 73.2 | 53.8 | 279 | 51 |
SR-759-2 | 42.31 | 55 | 275 | 82.5 | 61 | 324.6 | 57 |
