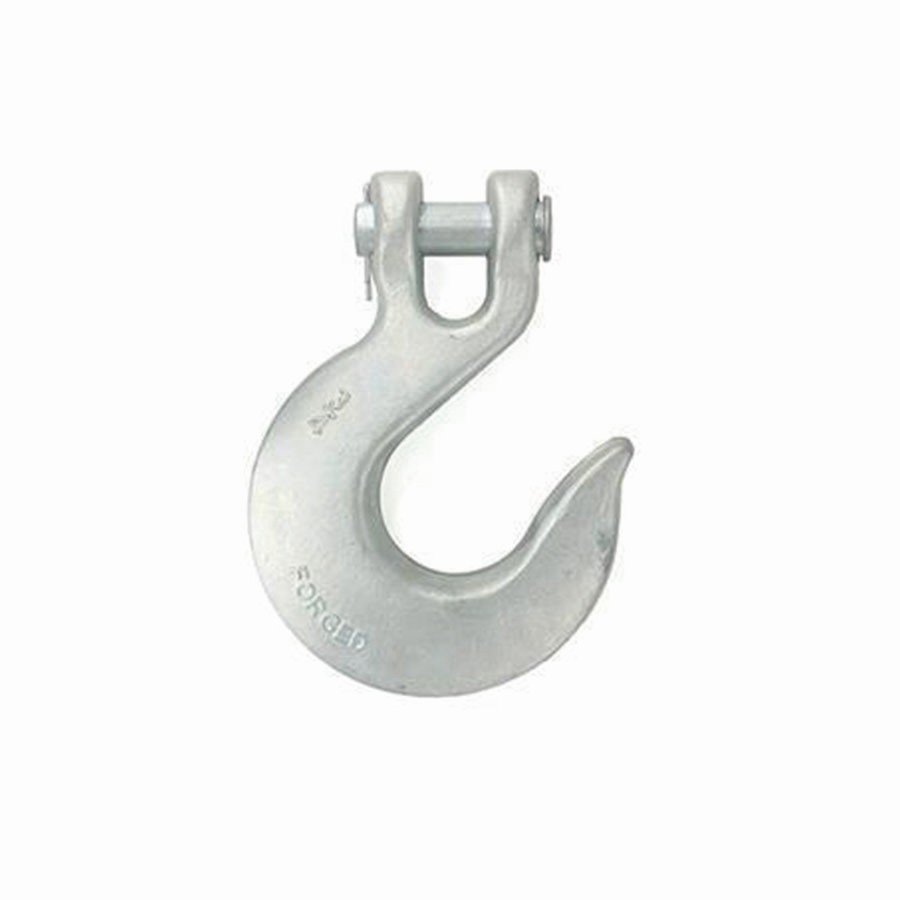

Alloy and Carbon Steel Clevis Slip Hook

Your current location:

Home
Products
Rigging Hardware
G80 & G100 Rigging
Regular Rigging Hardware

Features
● It is made of forged alloy steel and carbon steel.
● It is strictly heat treated.
● It can be matched with G70 or G43 chains.
● It can only be used for lashing and pulling but not lifting.
● G43: Ultimate load is 3 times the Working Load Limit.
● G70: Ultimate load is 4 times the Working Load Limit.

Product Description

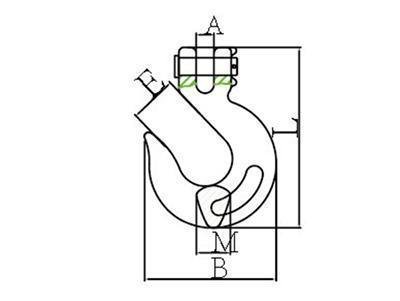

Parameters (Unit: mm)

Item code	Weight /1bs	Working load limit (1bs)		A±0.5	B±1	E±0.5	L±1
Item code	Weight /1bs	G43	G70	A±0.5	B±1	E±0.5	L±1
SR-124-1/4	0.55	2600	3150	11	27	23.5	100
SR-124-5/16	0.82	3900	4700	12.5	33	26	114
SR-124-3/8	1.21	5400	6600	15	39	32	132.5
SR-124-7/16	2.09	7200	8750	17	44	40	147
SR-124-1/2	2.99	9200	11300	19	48	42.5	166
SR-124-5/8	4.85	13000	15800	18.5	58.7	51	200.5
SR-124-3/4	11.28	20200	24700	30.5	81	64.5	257
