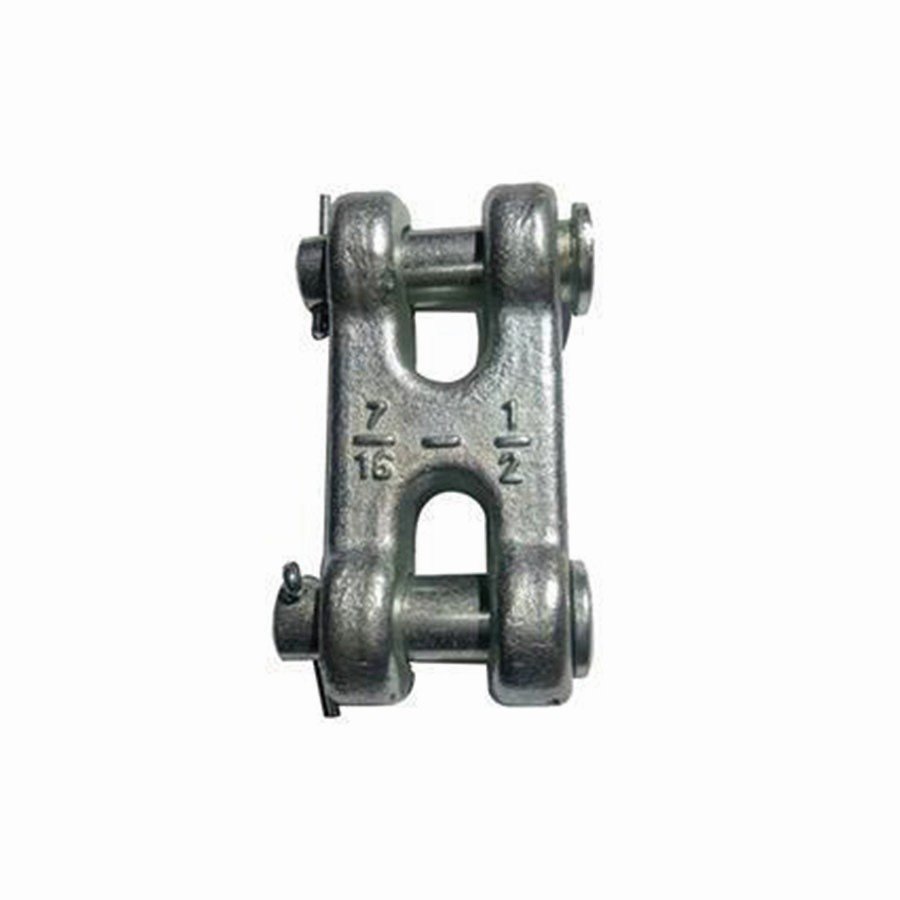

Alloy Steel Forged Link
Features
● It is a G70 product which can be only used for lashing and pulling. It can never be used for lifting.
● It is forged by alloy steel. And the strict heat treatment ensures the intensity and toughness.
● It can be matched with G70 chains.
● Normal marks: G70 1/4*-5/16.
Product Description

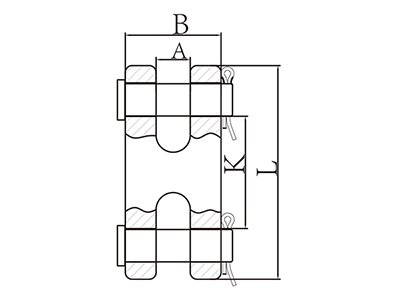

Parameters (Unit: mm)
Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load/t | A±0.5 | B±1 | K±1.2 | L±1.5 |
SR-048-1/4-5/16 | 0.21 | 2.1 | 8.4 | 10 | 28 | 32 | 65 |
SR-048-3/8 | 0.348 | 3 | 12 | 12 | 34 | 40.5 | 78 |
SR-048-1/2-7/16 | 0.726 | 5.1 | 20.4 | 15 | 45 | 54 | 100.5 |
SR-048-5/8 | 1.05 | 7.48 | 29.9 | 20 | 56 | 66 | 125.5 |
