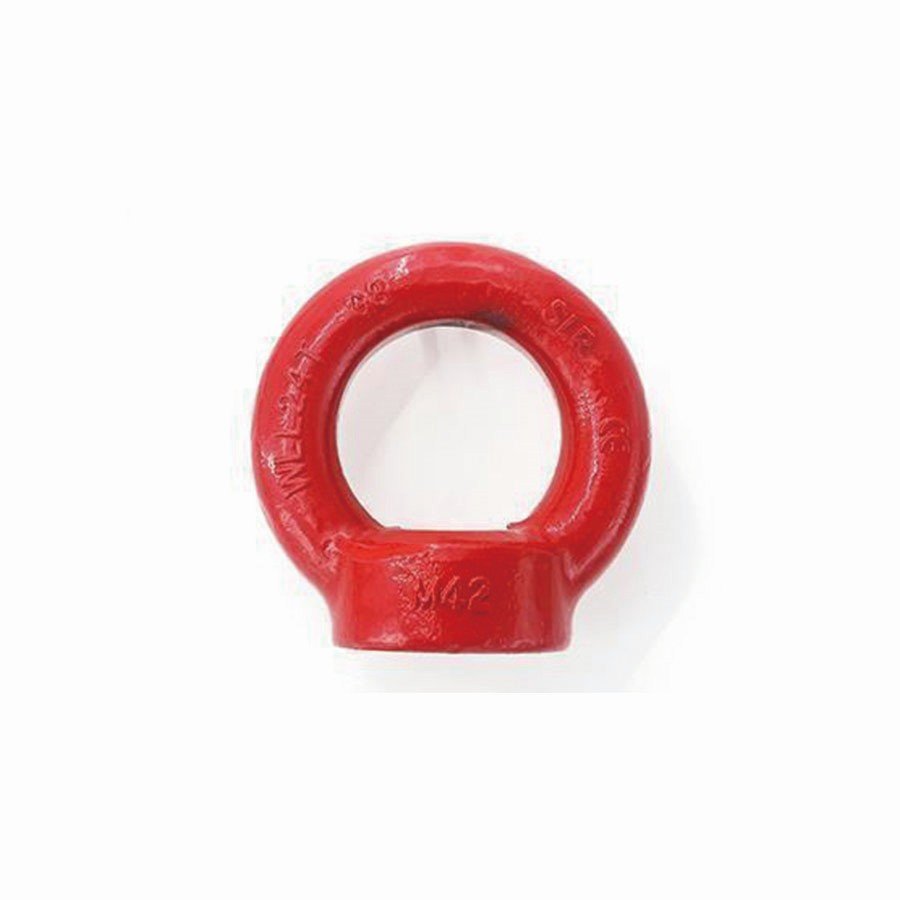

Alloy Steel Eye Nut
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Surface treatment: Powder plastified.
● Color code: red RAL3020/yellow RAL1003.
● Ultimate load is 4 times the Working Load Limit.
Product Description

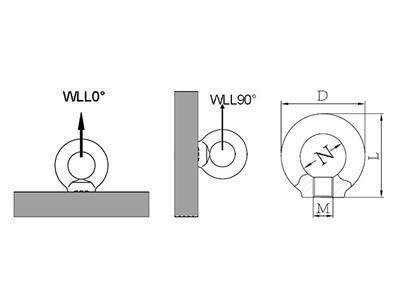

Parameters (Unit: mm)
Item Code | Weight (kg) | Woring Load Limit (t) (4:1) | D±1 | N±0.6 | L±0.5 | |
WLL 0° | WLL 90° | |||||
8-SR055-M6 | 0.049 | 0.4 | 0.15 | 36 | 20 | 36 |
8-SR055-M8 | 0.05 | 1 | 0.4 | 36 | 20 | 36 |
8-SR0545-M10 | 0.09 | 1 | 0.4 | 45 | 25 | 45 |
8-SR055-M12 | 0.16 | 2 | 0.75 | 54 | 30 | 53 |
8-SR055-M16 | 0.24 | 4 | 1.5 | 63 | 35 | 62 |
8-SR055-M20 | 0.36 | 6 | 2.3 | 63 | 35 | 62 |
8-SR055-M24 | 0.72 | 8 | 3.2 | 72 | 40 | 71 |
8-SR055-M30 | 1.32 | 12 | 4.5 | 72 | 40 | 71 |
8-SR055-M36 | 2.08 | 16 | 7 | 81 | 45 | 81 |
8-SR055-M42 | 3.11 | 24 | 9 | 90 | 50 | 90 |
8-SR055-M48 | 5.02 | 32 | 12 | 90 | 50 | 90 |
