Alloy Steel Swivel Lifting Point

Your current location:

Features
● Forged super alloy steel- Quenched and Tempered.
● Individually proof test at 2.5 times Working Load Limit.
● Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
● 100% magnaflux crack detection.
● Surface finish: Powder plastified.
● Colour code: Red RAL3020/Yellow RAL1003.

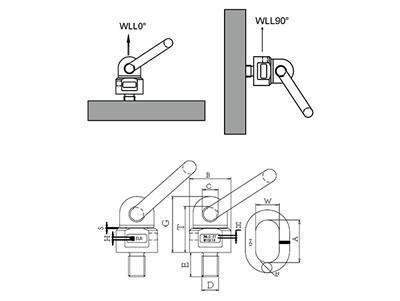

● The angle between the direction of workforce and the screw is 0° and 90°.

Product Description

Parameters (Unit: mm)

Item Code	Weight (kg)	Woring Load Limit (t) (4:1)		DxE	B	C	G	T	A	W	N	H	S
Item Code	Weight (kg)	Woring Load Limit 90°	Woring Load Limit 0°	DxE	B	C	G	T	A	W	N	H	S
8-SR303-M8	0.41	0.3	0.6	M8X13	36	16.5	51	41	55	30	14	3	1
8-SR303-M10	0.43	0.5	0.9	M10x18	36	16.5	51	41	55	30	14	3	1
8-SR303-M10X90	0.38	0.5	1.0	M10X90	36	16.5	51	41	55	30	14	3	1
8-SR303-M12	0.44	0.5	1.0	M12x18	36	16.5	51	41	55	30	14	3	1
8-SR303-M12x40	0.52	0.5	1.0	M12x40	36	16.5	51	41	55	30	14	3	1
8-SR303-M12x45	0.47	0.5	1.0	M12x45	36	16.5	51	41	55	30	14	3	1
8-SR303-M12x110	0.53	0.5	1.0	M12x110	36	16.5	51	41	55	30	14	3	1
8-SR303-M14	0.45	1.12	2.0	M14X20	36	16.5	51	41	55	30	14	3	1
8-SR303-M16	0.46	1.12	2.0	M16X35	36	16.5	52	42	55	30	14	3	1
8-SR303-M16X40	0.48	1.12	2.0	M16X40	36	16.5	52	42	55	30	14	3	1
8-SR303-M16X100	0.54	1.12	2.0	M16X100	36	16.5	52	42	55	30	14	3	1
8-SR303-M16X120	0.6	1.12	2.0	M16X120	36	16.5	52	42	55	30	14	3.5	1
8-SR303-M20	0.96	2	4	M20X30	4.95	19	68	56	70	35	16	3.5	1
8-SR303-M20X120	1.17	2	4	M20X120	4.95	19	68	56	70	35	16	3.5	1
8-SR303-M24	1.45	3.15	6.3	M24X40	57	22	78	65.5	85	40	18	3.5	1.5
8-SR303-M24X40	1.42	3.15	6.3	M24x90	57	22	78	65.5	85	40	18	3.5	1.5
8-SR303-M24X90	1.66	3.15	6.3	M24x90	57	22	78	65.5	85	40	18	3.5	1.5
8-SR303-M24x120	1.74	3.15	6.3	M24X120	57	22	78	65.5	85	40	18	3.5	1.5
8-SR303-M27	1.47	3.15	6.3	M27X35	57	22	78	65.5	85	40	20	3.5	1.5
8-SR303-M30(5T)	2.17	5.3	10.6	M30X35	66	23.5	96.5	80.5	85	40	20	4	1.5
8-SR303-M30x38	2.18	5.3	10.6	M30X38	66	23.5	96.5	80.5	85	40	20	4	1.5
8-SR303-M30x120	2.65	5.3	10.6	M30X120	66	23.5	96.5	80.5	85	40	22	4	1.5
8-SR303-M30(8T)	3.57	8	11.8	M30X35	80	28	112	92	115	50	22	6	2
8-SR303-M30x38	3.58	8	11.8	M30X38	80	28	112	92	115	50	22	6	2
8-SR303-M30x120	4.01	8	11.8	M30x120	80	28	112	92	115	50	22	6	2
8-SR303-M36x90	4.17	8	11.8	M36X90	80	27	109	89.5	115	50	22	6	2
8-SR303-M36x400	6.41	8	11.8	M36x400	80	27	109	89.5	115	50	22	6	2
8-SR303-M39	3.65	8	11.8	M39x50	80	27	109	89.5	115	50	22	6	2
8-SR303-M39x90	3.71	8	11.8	M39X90	80	27	109	89.5	115	50	22	6	2
8-SR303-M42	3.62	10	15	M42X50	80	27	109	89.5	115	50	25	6	2.5
8-SR303-M42X60	6.72	10	15	M42X60	80	27	109	89.5	115	50	25	6	2.5
8-SR303-M42X130	4.46	10	15	M42X130	80	27	109	89.5	115	50	25	6	2.5
8-SR303-M42X180	5.0	10	15	M42X180	80	27	109	89.5	115	50	25	6	2.5
8-SR303-M45X60	4.17	10	15	M45X60	80	27	109	89.5	115	50	25	6	2.5
8-SR303-M48	4.02	10	15	M48X50	80	27	109	89.5	115	50	25	6	2.5
8-SR303-M48X110	4.8	10	15	M48X110	80	27	109	89.5	115	50	25	6	2.5
8-SR303-M56X84	11.6	15	25	M56X84	117	42	310	280	152	70	32	7	2.5
8-SR303-M64X95	12.4	15	25	M64X95	117	42	310	280	152	70	32	7	2.5
