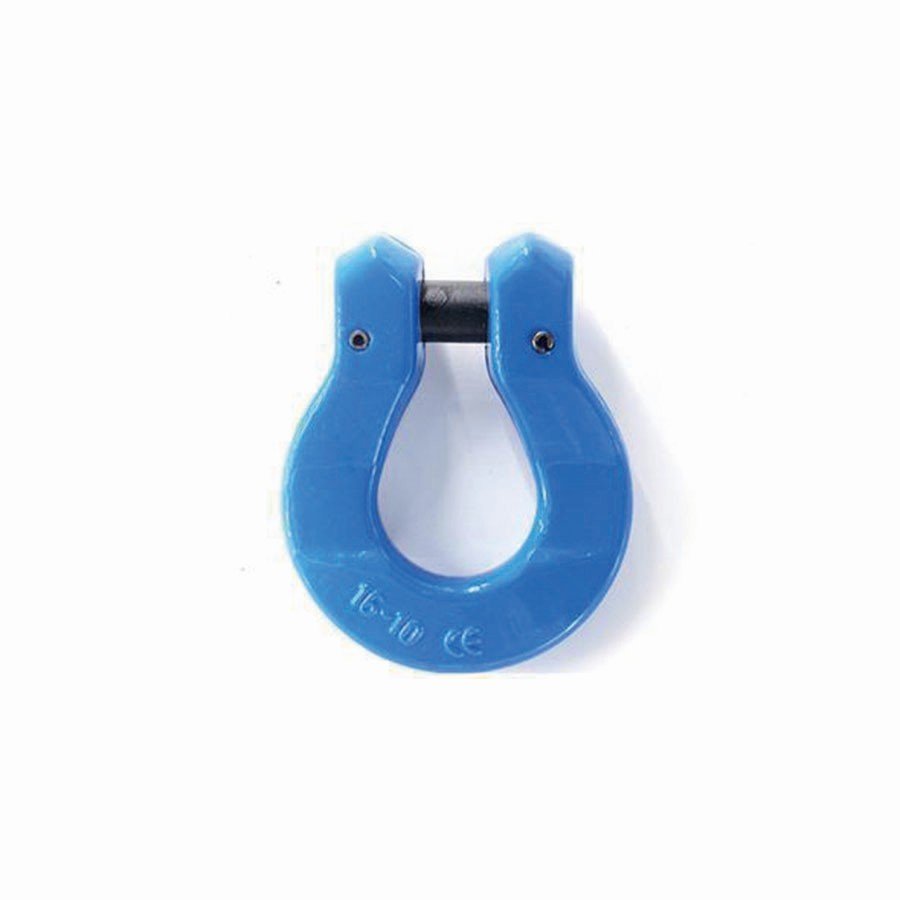

G100 Alloy Steel Omega Link
Features
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: powder plastified;
● Color code: Blue RAL5015.
Product Description
Parameters (Unit: mm)
Item code | Weight (kg) | Working load limit (t) | Breaking load (t) | A±0.5 | B±2 | E±1.5 | M±2 | L±2 |
10-SR1027-06 | 0.12 | 1.4 | 5.6 | 8.5 | 32.5 | 20 | 44 | 55 |
10-SR1027-08 | 0.27 | 2.5 | 10 | 10.5 | 42 | 24 | 60 | 73.5 |
10-SR1027-10 | 0.44 | 4 | 16 | 12.5 | 48.5 | 31 | 70 | 90 |
10-SR1027-13 | 0.89 | 6.7 | 26.8 | 16 | 60 | 38.5 | 90 | 109 |
10-SR1027-16 | 1.69 | 10 | 40 | 19 | 75.5 | 51 | 112 | 141.5 |
Ultimate load is 4 times the Working Load Limit.
