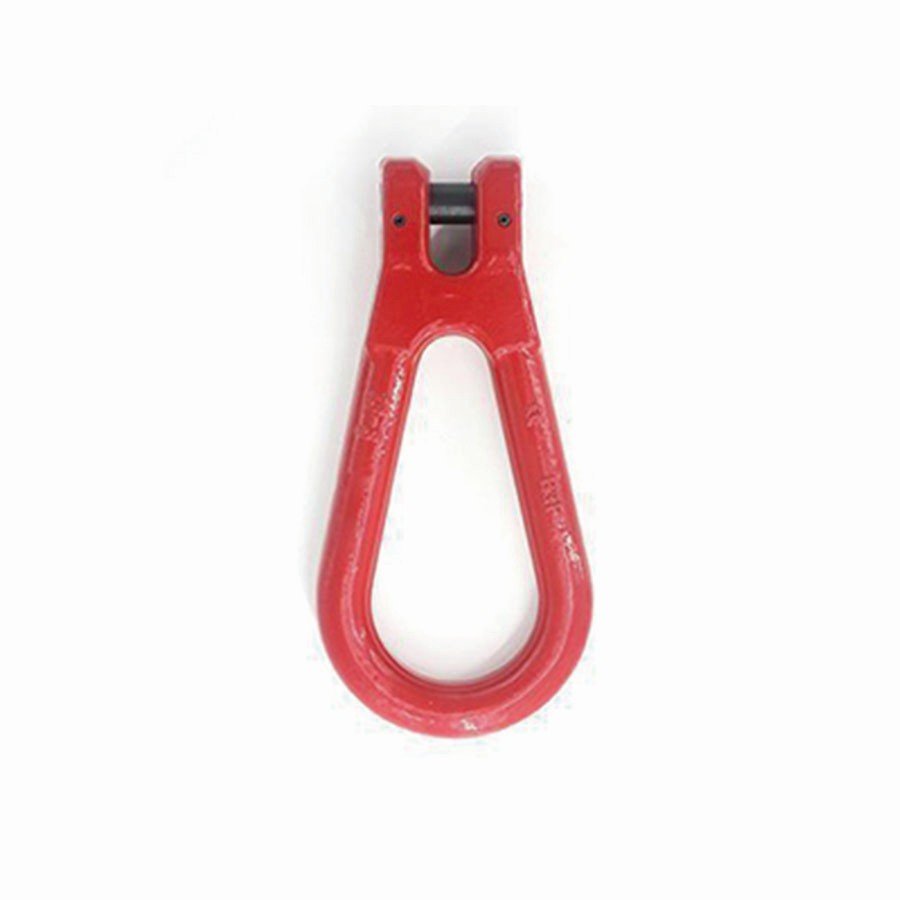

Alloy Steel Clevis Lug Link

3
Alloy Steel Clevis Lug Link

Alloy Steel Clevis Lug Link

Features
● Ultimate load is 4 times the Working Load Limit.
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Product Description


Parameters (Unit: mm)

Item Code

Weight (kg)

Woring Load Limit (t)

Breaking Load (t)

A±0.5

B±1.5

D±1

E±1.5

L±2

8-SR270-7/8

0.53

2

8

10

32.8

45

87

139

8-SR270-10

0.74

3.15

12.6

12

42

60

108

174

8-SR270-13

1.76

5.3

21.2

16.5

55.5

66.5

137.5

228

8-SR270-16

2.8

8

32

19

68

72

165

264

8-SR270-18

3.5

10

40

23

73

98

185

317
