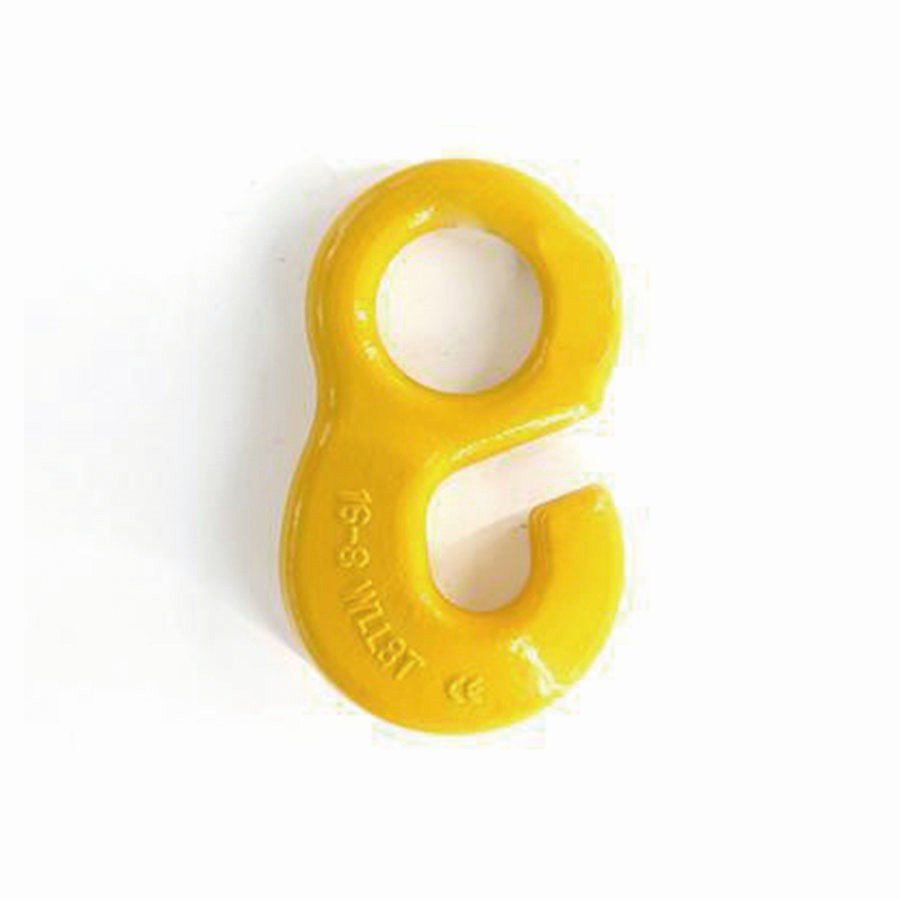

G80 Alloy Steel G Hook

3
G80 Alloy Steel G Hook

G80 Alloy Steel G Hook

Features
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying;
● Color code: red RAL3020 yellow RAL1003.

Product Description


SR119-G80 G HOOK
Ultimate load is 4 times the Working Load Limit.


Parameters (Unit: mm)

Item Code

Weight (kg)

Woring Load Limit (t)

Breaking Load (t)

A±0.5

N±1

D±1

H±1

R±1.5

E±0.3

L±2

8-SR119-10

0.51

3.15

12.6

20

32

14

22

76.5

12

113

8-SR119-13

1.3

5.3

21.2

26

40

18

29

95.5

15

143.5

8-SR119-16

1.9

8.0

32

32

50

22

35.5

117

18.4

176

8-SR119-19

3.65

12.5

50

38

60

26

43

141

22

216.5
