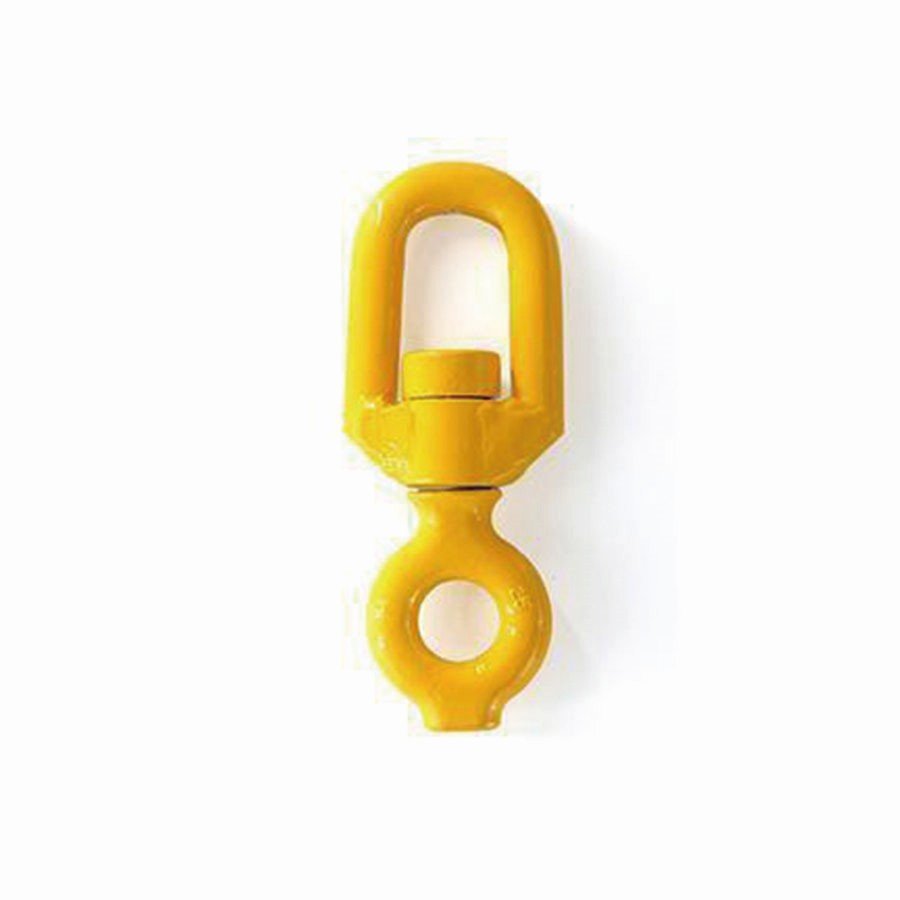

Alloy Steel Welded Swivel

3
Alloy Steel Welded Swivel

Alloy Steel Welded Swivel

Features

● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Product Description


Parameters (Unit: mm)

Item Code

Weight (kg)

Working Load Limit/t

Breaking Load/t

D±1

B±1.5

C±2

D1±1

L±2.5

SR-231-16

0.85

2.4

12

22

32

32

16

150

SR-231-19

1.33

3.8

19

28

40

42.5

19

188

SR-231-22

2.56

5.3

26.5

47

48

57

22

250

SR-231-25

4.0

7.2

36

37

53

63

25

265

SR-231-28

4.9

9.0

45

37

52

65

28

280
