Features
● It is a G80 product which can only used for lashing and pulling but not lifting!
● It is forged by alloy steel. And the strict heat treatment ensures the intensity and toughness.
● It can be matched with G80 chains.

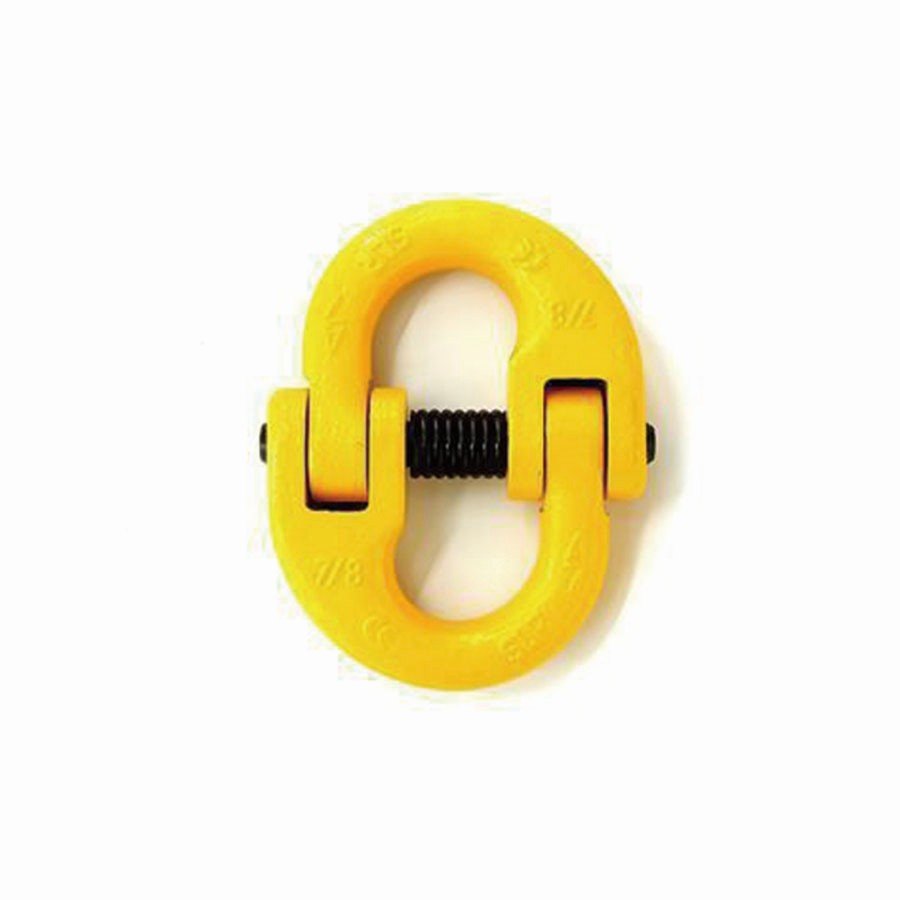

Alloy Steel Connecting Link
Features
● It is a G80 product which can only used for lashing and pulling but not lifting!
● It is forged by alloy steel. And the strict heat treatment ensures the intensity and toughness.
● It can be matched with G80 chains.
Product Description
Parameters (Unit: mm)
Item Code | WEIGHT/1bs | WORKING LOAD LIMIT/1bs | BREAKING LOAD/1bs | A±1.5 | L±2 | K±2 | H±1 |
8-SR075-1/4 | 0.24 | 3250 | 13000 | 19.8 | 69 | 55 | 7.8 |
8-SR075-5/16 | 0.32 | 4500 | 18000 | 20.5 | 79.5 | 62.5 | 8.5 |
8-SR075-3/8 | 0.58 | 6600 | 16400 | 27 | 91.5 | 68.5 | 11.5 |
8-SR075-1/2 | 1.2 | 11250 | 45000 | 35 | 111 | 81 | 15 |
8-SR075-5/8 | 2.42 | 16500 | 66000 | 42 | 137.5 | 95.5 | 21 |
8-SR075-3/4 | 3.89 | 23000 | 92000 | 43 | 171 | 126 | 22.5 |
8-SR075-7/8 | 6.08 | 28750 | 115000 | 48 | 190.5 | 141.5 | 24.5 |
LUG CONNECTING LINK
It can only be used for normal connecting but not lifting.
OVAL CONNECTING LINK
It can only be used for normal connecting but not lifting.
