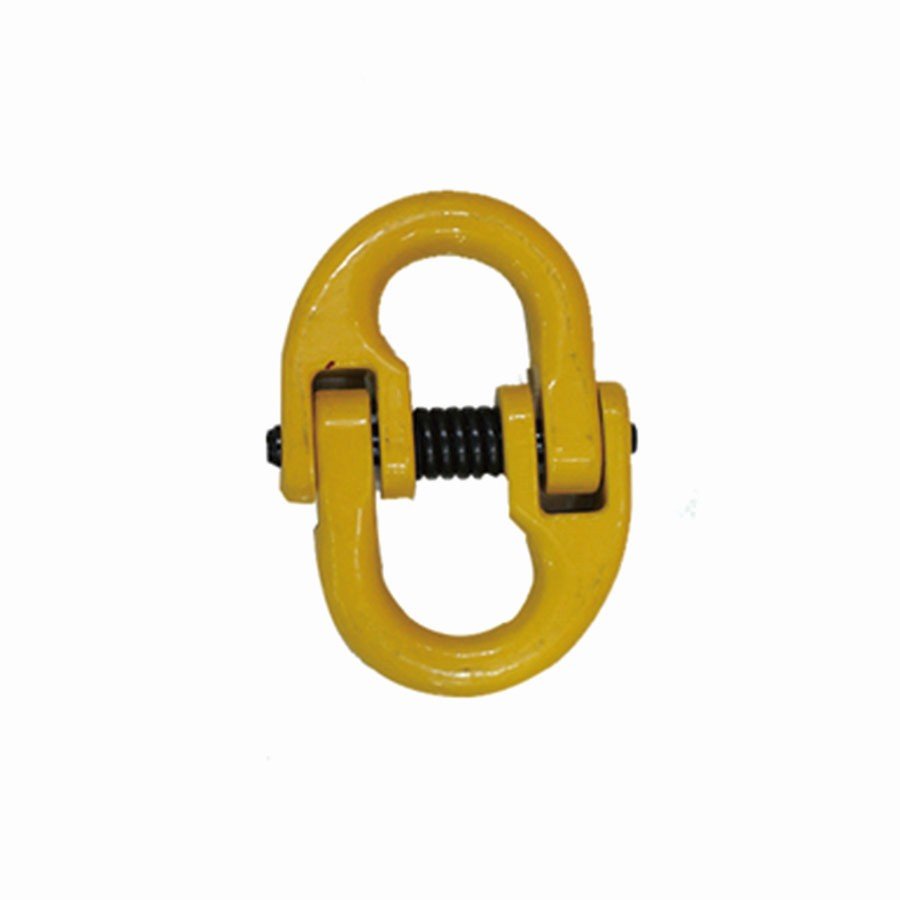

G80 U.S. Type Connecting Link

G80 U.S. Type Connecting Link

Features
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Product Description


Technical Parameters

ITEM NO.

WEIGHT/lbs

WORKING LOAD LIMIT/1bs

BREAKING LOAD/1bs

A±1.5

L±2.5

K±2

W±l

H±1

C ±0.2

D±0.3

8-SR076-1/4

0.286

3500

14000

16.5

67

51

8

13

4

4

8-SR076-5/16

0.32

4500

18000

17

78.5

58.5

10

14.5

6

6.6

8-SR076-3/8

0.73

7100

28400

22

87.6

63.6

12

17

6.2

8.1

8-SR076-1/2

1.67

12000

48000

28.5

115.5

85.5

15

21.6

7.8

7.8

8-SR076-5/8

2.86

18100

72400

33

143

106

18.5

26

9.5

10

8-SR076-3/4

5

28300

113200

41

162

116

23

32

12

13

8-SR076-7/8

7.5

34200

136800

50.5

188.5

136.5

26

38

13

15.5

8-SR076-1

11.03

47700

190800

57

214.5

152.5

31

44

15

16.5

8-SR076-1-1/4

20.38

72300

289200

65

265

188.7

38

54

20

20
