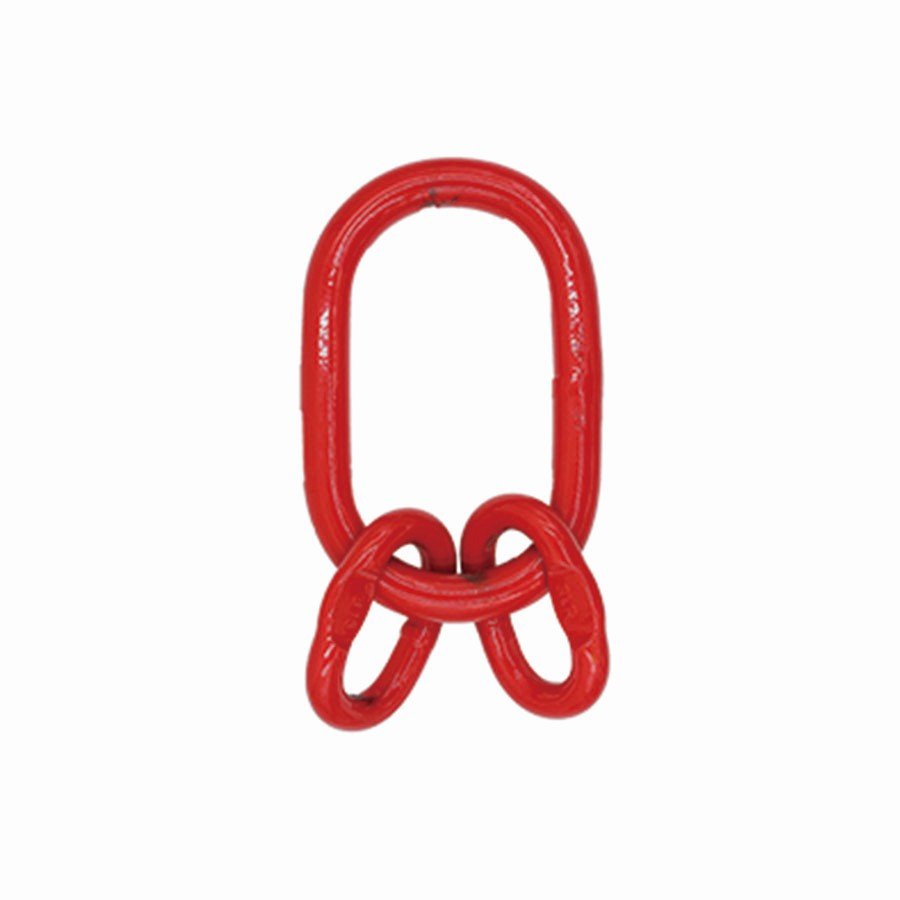

EUROPEAN TYPE G80 MASTER LINK ASSEMBLY

3
EUROPEAN TYPE G80 MASTER LINK ASSEMBLY

EUROPEAN TYPE G80 MASTER LINK ASSEMBLY

● The standard for production and testing: EN1677-4 (replacement of DIN5688-3).
● Surface treatment: plastic coating.
● Color code: RED RAL3020 / Yellow RAL1003.
● It can be only matched with G80 3 leg or 4 leg chain sling according to standard EN818-4.
● The blue area adopts welding for both sub-ring and main ring.
● The yellow area adopts forging for main ring and welding for sub-ring.
● The pressing flat is for use with SLR002-G80 OMEGA LINK.
● The master link can be matched with cable wire according to standard DIN3088.
● It can be matched with synthetic fiber lifting belts according to standard EN492-1.

Product Description

Parameters (Unit: mm)

Item Code

G80 EN818-2 Chain mm

Weight (kg)

Woring Load Limit (t)

Dimension(mm)

FOR 3 OR 4 Leg Sling

A

B

D

a

b

d

8-SR032-6

6

1.18

2.36

135

75

18

54

25

13

8-SR032-7

7

1.24

3.15

135

75

18

60

38

13

8-SR032-8

8

2.2

4.25

160

90

22

70

34

16

8-SR032-10

10

3.4

6.7

180

100

26

85

40

18

8-SR032-13

13

6.1

11.2

200

110

32

115

50

22

8-SR032-16

16

9.98

17

260

140

36

140

65

26

8-SR032-18

18

18.9

21.2

340

180

45

180

100

32

8-SR032-20

20

22.6

26.5

350

190

50

180

100

32

8-SR032-22

22

25.2

31.5

350

190

50

180

100

36

8-SR032-26

26

35.2

45

400

200

56

180

100

40

8-SR032-28

28

47

50

430

220

63

180

100

45

8-SR032-32

32

66.46

63

460

250

72

200

110

50
