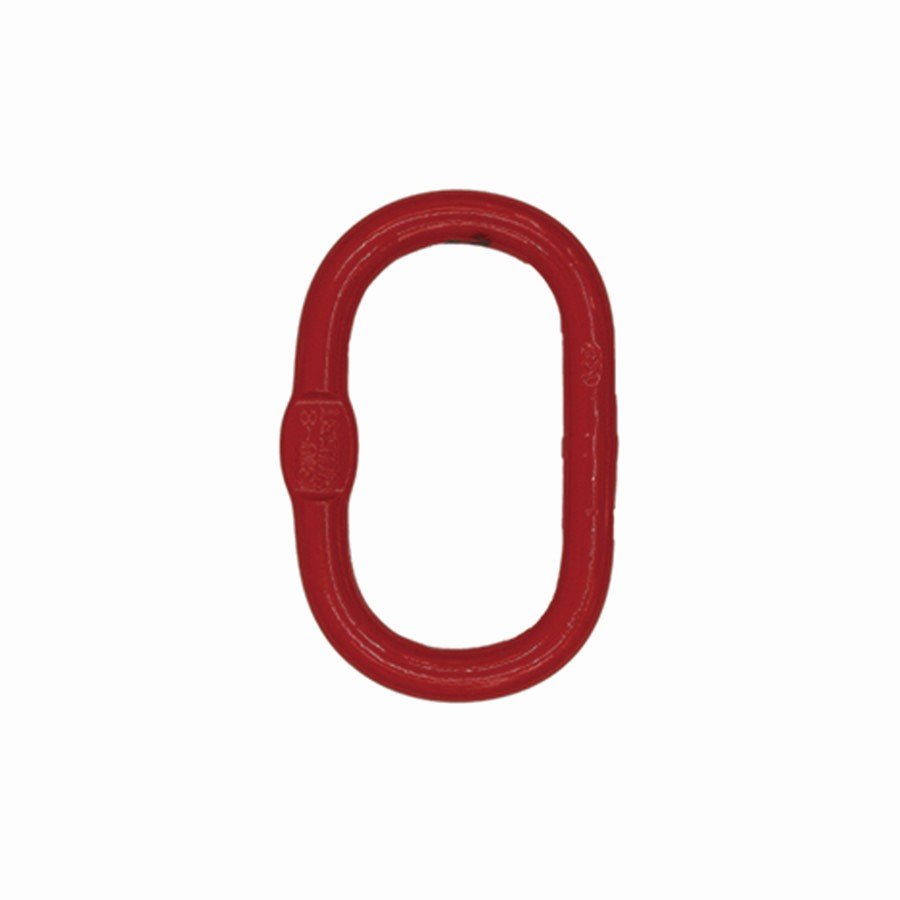

EUROPEAN TYPE G80 MASTER LINK

Your current location:

● Ultimate load is 4 times the Working Load Limit.
● The working load is for 2 leg lifting of which the lifting angle is 0-45 degree.
● There will be pressing flat only on request.
● No pressing flat.
● The pressing flat is for use with SLR002-G80 OMEGA LINK.
● The master link can be matched with cable wire according to standard DIN3088.
● It can be matched with synthetic fiber lifting belts according to standard EN492-1.

Product Description

Parameters (Unit: mm)

Item Code	G80 en818-2 chain mm		Weight (kg)	Woring Load Limit (t)	Dimension(mm)
Item Code	For 1 Leg mm	For 2 Leg mm	Weight (kg)	Woring Load Limit (t)	A	B	D
8-SR033-76	7	6	0.34	1.6	110	60	13
8-SR033-87	8	7	0.54	2.12	110	60	16
8-SR033-108	10	8	0.82	3.15	135	75	18
8-SR033-1310	13	10	1.5	5.3	160	90	22
8-SR033-1613	16	13	2.3	8	180	100	26
8-SR033-1816	18	16	3.95	11.2	200	110	32
8-SR033-2018	20	18	6.34	14	260	140	36
8-SR033-2220	22	20	8.96	17	300	160	40
8-SR033-2622	26	22	12.8	21.2	340	180	45
8-SR033-3226	32	26	16.55	31.5	350	190	50
8-SR033-3632	36	32	23.28	45	400	200	56
8-SR033-4036	40	36	32	56	430	220	63
8-SR033-72MM	45	40	45.76	63	460	250	72
8-SR033-80MM	--	45	62	85.46	500	270	80
