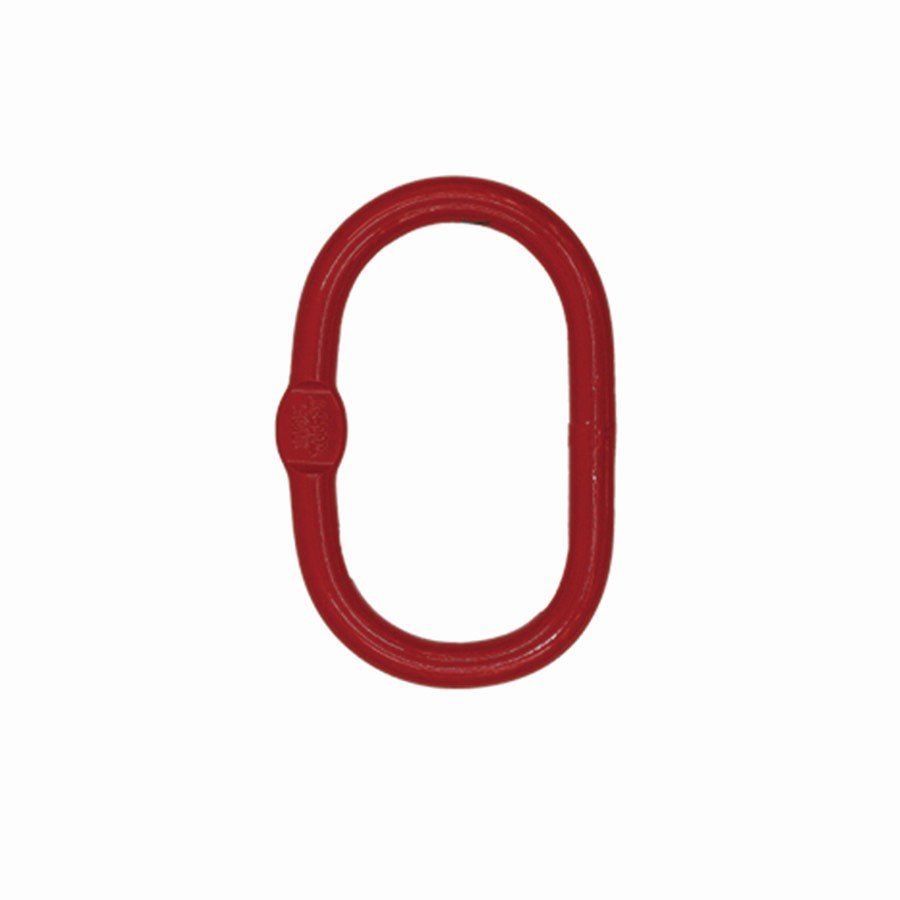

G80 U.S. TYPE MASTER LINK
Product Description

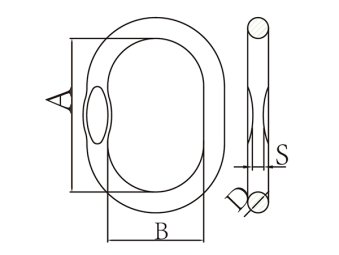

Parameters (Unit: mm)
Item Cooe | Weight(kg) | Chain80 | Wll1 Leg 0-45° | Wll2leg 0-45° | WllPope(t) | Dimension(mm) | |||
A | B | C | D | ||||||
8-SR-93-7/16 | 0.27 | 1/4 | 1.12 | 1.6 | 1.6 | 100±5 | 60±5 | 12±1 | 6±0.5 |
9/32 | 1.5 | - | |||||||
8-SR-93-1/2 | 0.38 | 9/32 | 1.5 | 21.2 | 2.5 | 100±5 | 60±5 | 14±1 | 7.6±0.5 |
5/16 | 2 | - | |||||||
8-SR-93-11/16 | 0.85 | 5/16 | 2 | 2.8 | 4 | 160±6 | 90±5 | 18±1 | 8.4±0.5 |
3/8 | 3.15 | - | |||||||
8-SR-93-3/4 | 1.2 | 3/8 | 3.15 | 4.25 | 6.5 | 160±6 | 90±5 | 20±1 | 10.5±0.5 |
1/2 | 5.3 | - | |||||||
8-SR-93-7/8 | 1.63 | 1/2 | 5.3 | 7.5 | 8 | 180±6 | 100±5 | 22±1 | 13.5±0.5 |
5/8 | 8 | - | |||||||
8-SR-93-1 | 2.13 | 5/8 | 8 | 11.2 | 11.5 | 180±6 | 100±5 | 25±1 | 16.5±0.5 |
19mm | 11.2 | - | |||||||
8-SR-93-1-1/8 | 3.81 | 3/4 | 12.5 | - | 11.8 | 270±7 | 140±6 | 28±1/2 | 19±0.5 |
8-SR-93-1-1/4 | 5.05 | 19mm | 11.2 | 16 | 16 | 270±7 | 140±6 | 32±1/2 | 19±0.5 |
7/8 | 15 | - | |||||||
8-SR-93-1-3/8 | 6.83 | 7/8 | 15 | 21.2 | 24 | 285±7 | 155±6 | 36±1/2 | 20±0.5 |
1 | 21.2 | - | |||||||
8-SR-93-1-1/2 | 8.9 | 28mm | 25 | - | 25 | 300±8 | 160±6 | 40±1/2 | 26±0.5 |
8-SR-93-1-3/4 | 12.8 | 1 | 21.2 | 30 | 31.5 | 340±10 | 180±6 | 45±1/2 | 26±0.5 |
11/4 | 31.5 | - | |||||||
8-SR-93-2 | 17.3 | 11/4 | 31.5 | 45 | 45 | 39010 | 215±7 | 51±1/2 | 32±0.5 |
