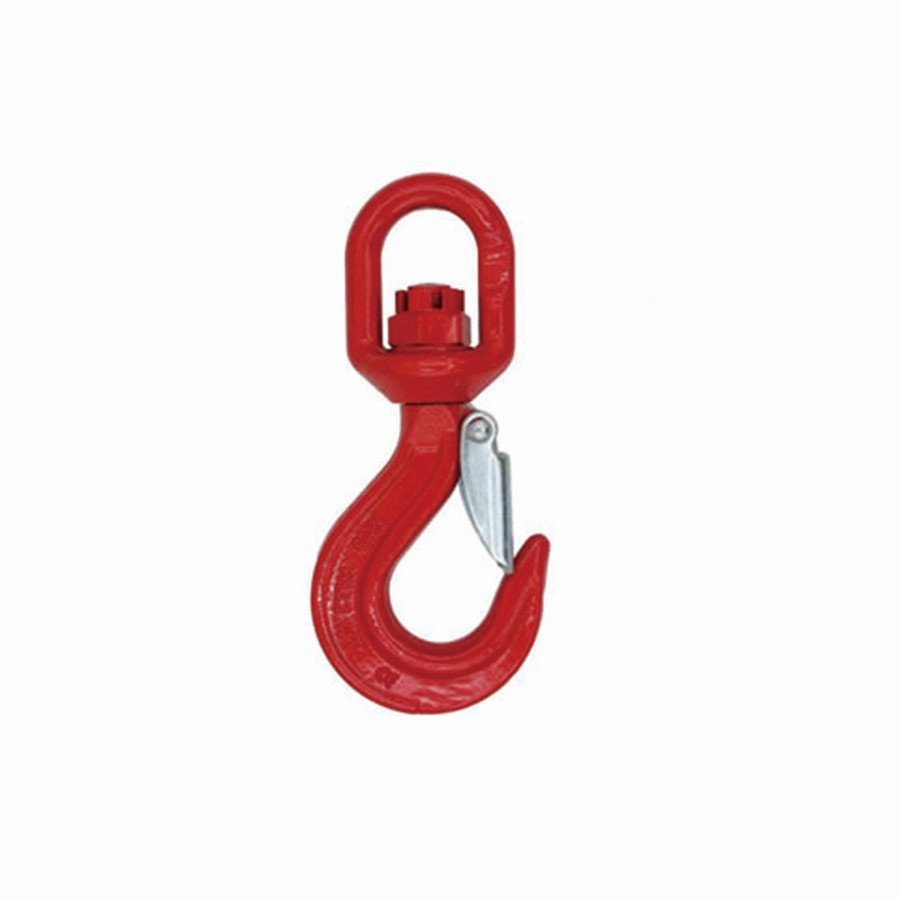

G80 Swivel Hook with Latch
Product Description
Technical Parameters

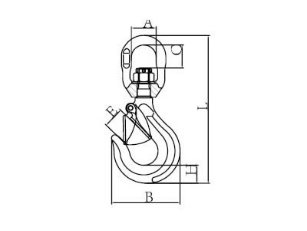

ITEMNO. | WEIGHT/kg | Working Load Limit (T) | Breaking Load (T) | A±1 | B±2.5 | E ±1.5 | H±l.5 | C±t2 | L±4 |
8-SR268-7/8 | 0.85 | 2 | 8 | 36 | 88.5 | 27 | 23.5 | 26 | 190 |
8-SR268-10 | l.54 | 3.15 | 12.6 | 42 | 104.5 | 32 | 29.5 | 34 | 233 |
8-SR268-13 | 3.04 | 5.3 | 2l.2 | 49 | 135 | 40 | 38 | 41 | 29l.5 |
8-SR268-16 | 5.36 | 8 | 32 | 61 | 161 | 45 | 45.4 | 53 | 352 |
