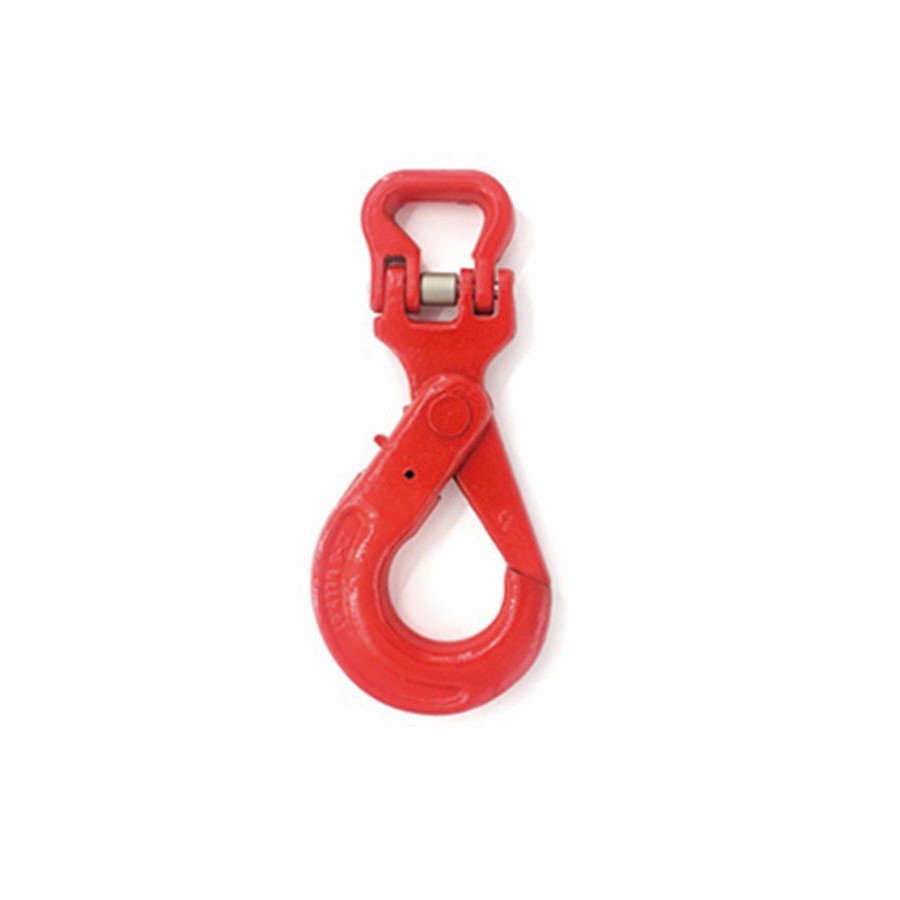

Alloy Steel Self Locking Sling Hook

3
Alloy Steel Self Locking Sling Hook

Alloy Steel Self Locking Sling Hook

● It can be matched with sling and G80 chains which can meet the standard EN818-2;

● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Product Description

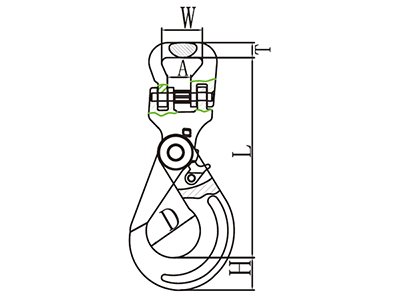

Parameters (Unit: mm)

Item Code

Weight (kg)

Woring Load Limit (t)

Breaking Load (t)

A±1.5

H±1

W±1.5

T±1

D±1.5

L±3

8-SR110-10

1.8

3.15

12.6

26.8

28.5

47

16

56

200.5

8-SR110-13

3.52

5.3

21.2

30

40

52

19

69

256
