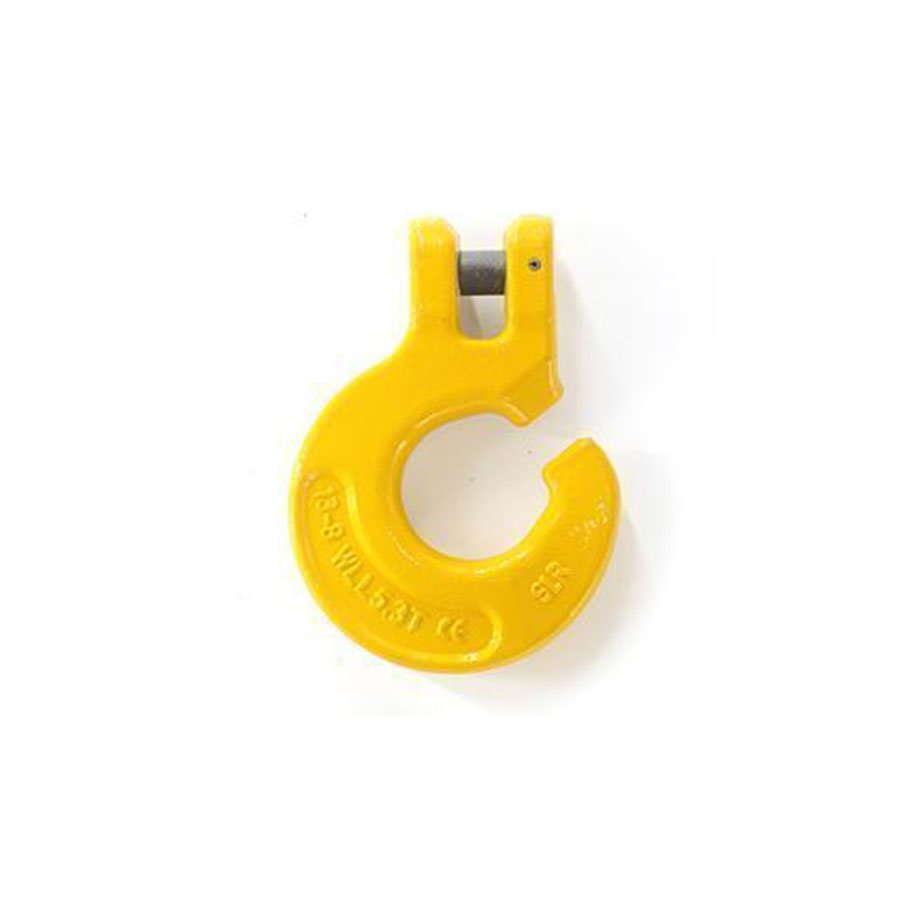

Alloy Steel Clevis Hook

3
Alloy Steel Clevis Hook

Alloy Steel Clevis Hook

Features
● Ultimate load is 4 times the Working Load Limit.
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Product Description


Parameters (Unit: mm)

Item Code

Weight(kg)

Woring Load Limit (t)

Breaking Load (t)

B±1.2

A±0.5

E±0.5

H±1

M±2

N±0.5

L±2

8-SR102-6

0.413

1.12

4.48

31

8.5

8.5

18

66.5

24.5

83

8-SR102-7/8

0.413

2

8

35

9.5

10.5

18

72.7

22.2

95.5

8-SR102-10

0.92

3.15

12.6

44

13

13

22

97

33.5

137

8-SR102-13

1.75

5.3

21.2

53

15

16

30

119

40

165
