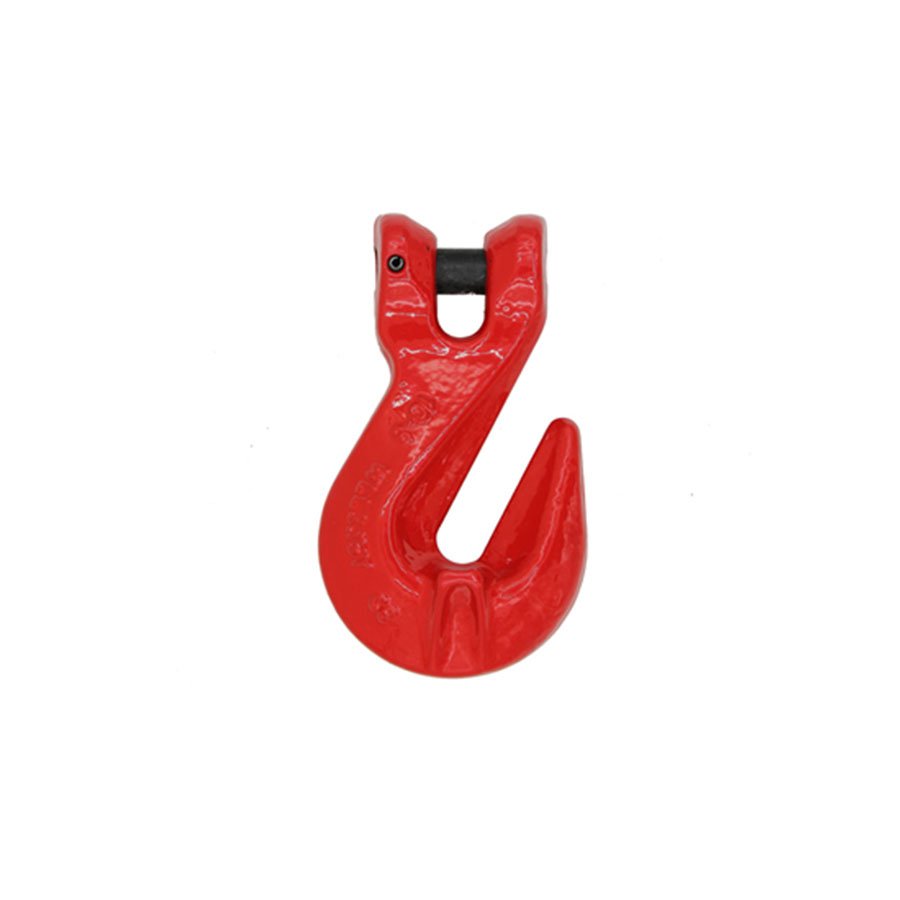

G80 Alloy Steel Clevis Grab Hook

Your current location:

Features
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Product Description

Technical Parameters

ITEMNO.	WEIGHT/kg	Working Load Limit (T)	Breaking Load (T)	E±l	A±O.5	H±l	W±t	L±2
8-SR086-06	0.25	1.12	4.48	8.3	8	17.7	26.7	75
8-SR086-7/8	0.32	2	8	11	9.5	18.5	33.5	89
8-SR086-10	0.73	3.15	12.6	13	12.5	29	46	126
8-SR086-13	1.6	5.3	21.2	16.5	15	42.5	57.5	163.5
8-SR086-16	2.8	8	32	19	18.5	45.5	74	183.5
8-SR086-20	5	12.5	50	24	23	56	74	219
8-SR086-22	6.3	15	60	27	27	68.5	90	254
8-SR086-26	14.5	21.2	84.8	30	30	77	102	309
