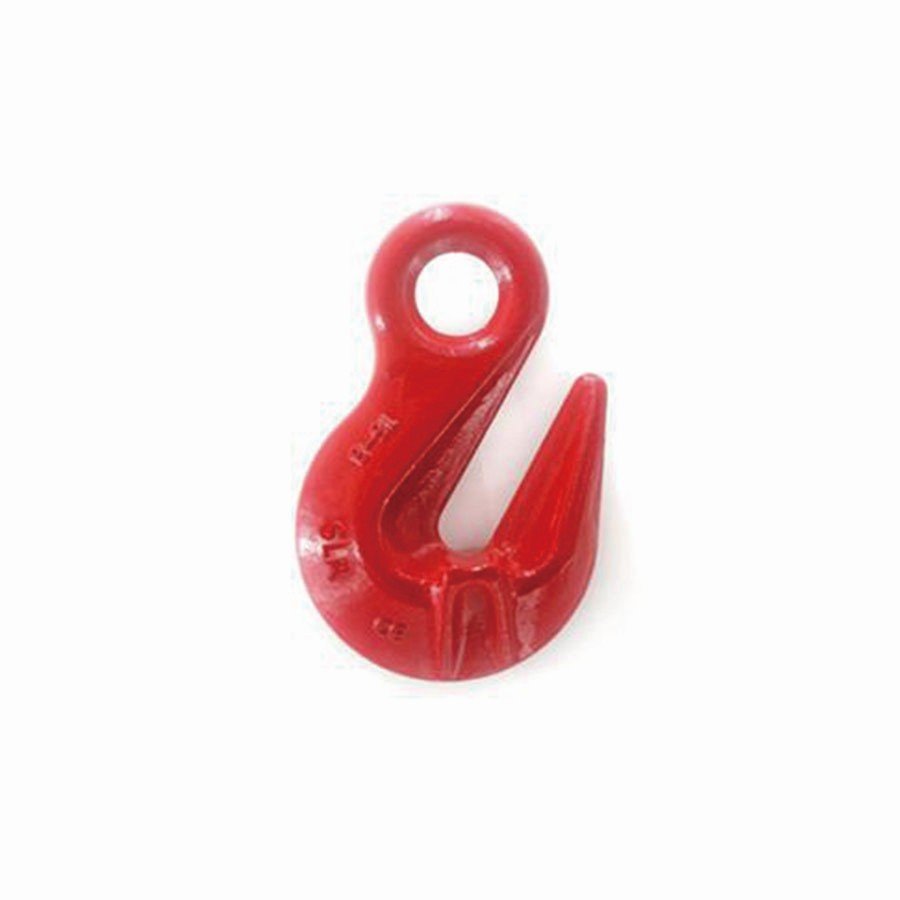

Alloy Steel Eye Shortening Grab Hook

Your current location:

Home
Products
Rigging Hardware
G80 & G100 Rigging
G80 Eye Hook

Features
● Forged super alloy steel- Quenched and Tempered.
● Suitable for EN818-2 G80 chain.
● Individually proof test at 2.5 times Working Load Limit.
● Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
● 100% magnaflux crack detection.
● Surface finish: Powder plastified.
● Colour code:Red RAL3020 / Yellow RAL1003.
● Ultimate load is 4 times the Working Load Limit

Product Description

Parameters (Unit: mm)

Item Code	Weight (kg)	Woring Load Limit (t)	Breaking Load (t)	E±0.5	D±1	H±1	R±2	L±2
8-SR085-06	0.14	1.12	4.48	8	13.5	17.9	51.4	75.3
8-SR085-7/8	0.245	2	8	10.8	18	20	61.5	91.2
8-SR085-10	0.65	3.15	12.6	13	20	29	80	122
8-SR085-13	1.39	5.3	21.2	16.5	26	42.8	99.7	158
8-SR085-16	2.2	8	32	20	30.5	47.7	104	169
8-SR085-20	4.6	12.5	50	25	37.5	56	140	219
8-SR085-22	8.2	15	60	28	44	68	165	259
8-SR085-26	9.8	21.2	84.8	30	44	77	188.8	298
8-SR085-32	19.4	31.5	126	38	57	95	228	361
