Character:
Material: Carbon steel /stainless 304/306.
Heat treated: Tempered and quenched.
Finish: Self color & hot dipped galv & zinc galv.
Process: Hot forging.

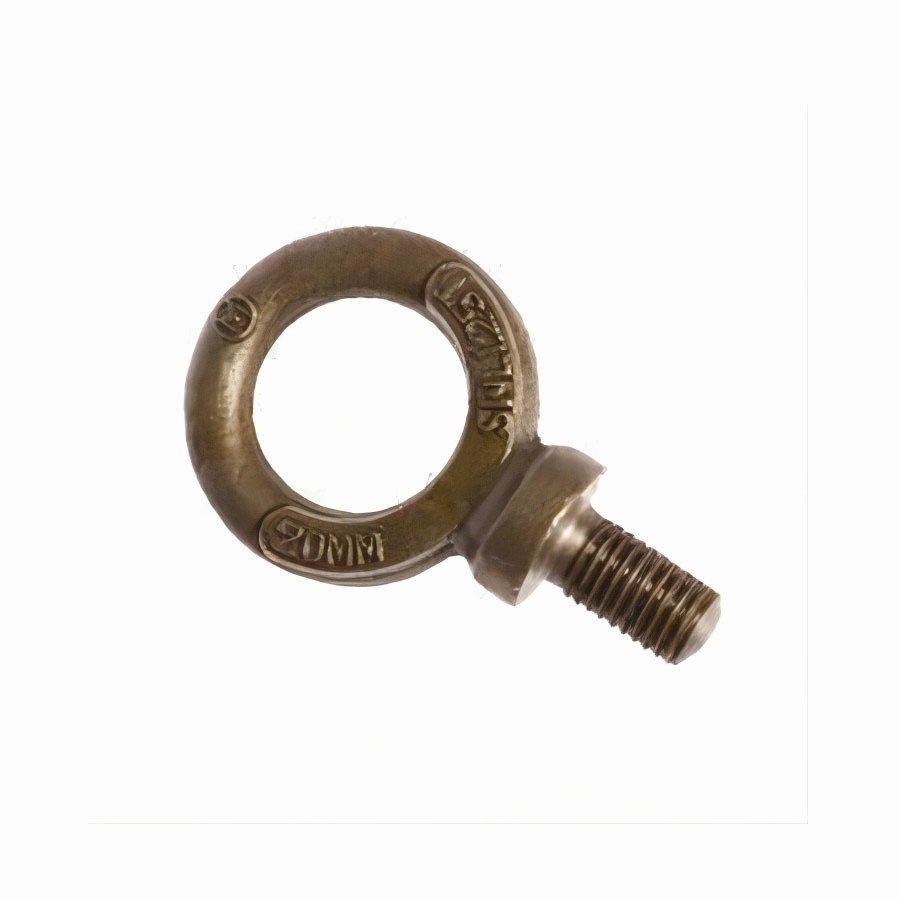

BS4278-3 Dynamo Eye Bolts
Character:
Material: Carbon steel /stainless 304/306.
Heat treated: Tempered and quenched.
Finish: Self color & hot dipped galv & zinc galv.
Process: Hot forging.
Product Description
ART. NO. | Wertical | SIZE | Weight | ||||||
Swl Ton nes | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | G(mm) | H(mm) | Each kgs | |
SRBSDEB01 | *0.10 | 6 | 22 | 9 | 27 | 18 | 17 | 5 | 0.07 |
SRBSDEB02 | *0.15 | 8 | 22 | 9 | 27 | 18 | 17 | 5 | 0.07 |
SRBSDEB03 | *0.25 | 10 | 22 | 9 | 27 | 18 | 17 | 5 | 0.07 |
SRBSDEB04 | 0.32 | 12 | 22 | 9 | 27 | 18 | 17 | 5 | 0.07 |
SRBSDEB05 | *0.50 | 14 | 32 | 13 | 41 | 28 | 29 | 9 | 0.24 |
SRBSDEB06 | 0.63 | 16 | 29 | 11 | 34 | 23 | 23 | 6 | 0.14 |
SRBSDEB07 | *1.00 | 18 | 40 | 15 | 47 | 32 | 32 | 9 | 0.4 |
SRBSDEB08 | 1.25 | 20 | 40 | 15 | 47 | 32 | 32 | 9 | 0.61 |
SRBSDEB09 | *1.60 | 22 | 44 | 17 | 53 | 35 | 35 | 14 | 0.6 |
SRBSDEB10 | 2 | 24 | 51 | 19 | 60 | 40 | 40 | 12 | 0.8 |
SRBSDEB11 | 3.2 | 30 | 64 | 24 | 76 | 51 | 51 | 14 | 1.72 |
