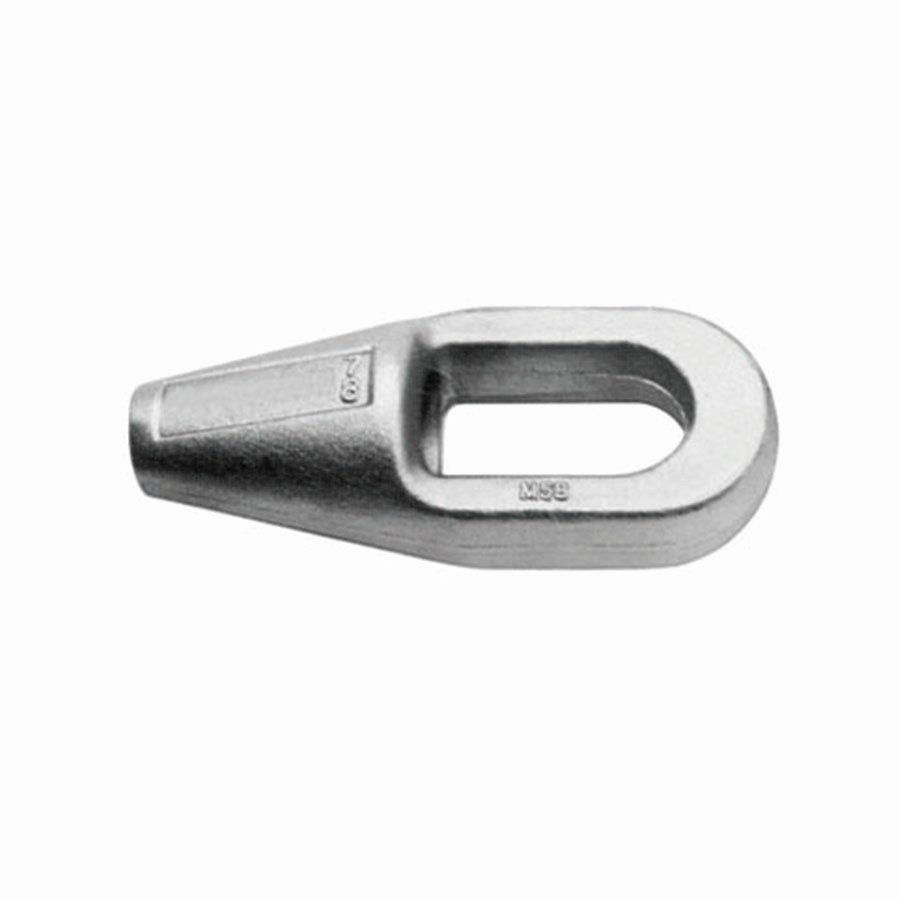

Grooved Closed Spelter Socket SM417
*Forged Steel Sockets thru 1 1/2″ , cast alloy steel 1-5/8″ thru 4″.
*Spelter socket terminations have an efficiency rating of 100% , based on the catalog strength of wire rope. Ratings are baed on recommended use with 6*7,6*19 or 6*37, IPS OR XIP,XXIP(EIP),RRL,FC,OR IWRC wire rope.
Closed Grooved Scokets meet the performance requirements of Federal Specificatioin RR-S-550D,Type B,except for those provisions required of the contractor.
Product Description
FOR SIZE(inch) | DIMENSIONE(in) | |||||||||
A | B | C | D | F | G | H | J | K | L | |
1/4 | 4.5 | 0.5 | 1.5 | 0.88 | 0.38 | 0.69 | 1.56 | 2.25 | 0.5 | 1.75 |
5/16-3/8 | 4.88 | 0.62 | 1.69 | 0.97 | 0.5 | 0.81 | 1.69 | 2.25 | 0.69 | 2 |
7/16-1/2 | 5.44 | 0.69 | 2 | 1.16 | 0.56 | 0.94 | 1.88 | 2.5 | 0.88 | 2.25 |
9/16-5/8 | 6.31 | 0.81 | 2.63 | 1.41 | 0.69 | 1.12 | 2.38 | 3 | 1 | 2.5 |
3/4 | 7.56 | 1.06 | 3 | 1.66 | 0.81 | 1.25 | 2.75 | 3.56 | 1.25 | 3 |
7/8 | 8.75 | 1.25 | 3.63 | 1.88 | 0.94 | 1.5 | 3.25 | 4 | 1.5 | 3.5 |
1 | 9.88 | 1.38 | 4.13 | 2.3 | 1.13 | 1.75 | 3.75 | 4.44 | 1.75 | 4 |
1-1/8 | 11 | 1.5 | 4.5 | 2.56 | 1.25 | 2 | 4.13 | 5 | 2 | 4.5 |
11/4-13/8 | 12.12 | 1.63 | 5.3 | 2.81 | 1.5 | 2.25 | 4.75 | 5.5 | 2.25 | 5 |
1-1/2 | 13.94 | 1.94 | 5.33 | 3.19 | 1.63 | 2.75 | 5.25 | 6 | 2.5 | 6 |
1-5/8 | 15.13 | 2.13 | 5.75 | 3.25 | 1.75 | 3 | 5.5 | 6.5 | 2.75 | 6.5 |
13/4-17/8 | 17.25 | 2.19 | 6.75 | 3.75 | 2 | 3.13 | 6.38 | 7.5 | 3 | 7.56 |
2-21/8 | 19.5 | 2.44 | 7.63 | 4.38 | 2.25 | 3.75 | 7.38 | 8.5 | 3.25 | 8.56 |
21/4-23/8 | 21.31 | 2.63 | 8.5 | 5 | 2.5 | 4 | 8.25 | 9 | 3.63 | 9.5 |
21/2-25/8 | 23.5 | 3.12 | 9.5 | 5.5 | 2.88 | 4.5 | 9.25 | 9.75 | 4 | 10.62 |
23/4-27/8 | 25.38 | 3.12 | 10.75 | 6.25 | 3.12 | 4.88 | 10.19 | 11 | 4.88 | 11.25 |
3-31/8 | 27 | 3.25 | 11.5 | 6.75 | 3.38 | 5.25 | 11.5 | 12 | 5.25 | 11.75 |
31/4-33/8 | 29.25 | 4 | 12.25 | 7.25 | 3.62 | 5.75 | 12.25 | 13 | 5.75 | 12.25 |
31/2-35/8 | 31 | 4 | 13 | 7.75 | 3.88 | 6.5 | 13 | 14 | 6.25 | 13 |
33/4-4 | 33.25 | 4.25 | 14.25 | 8.5 | 4.25 | 7.25 | 14.25 | 15 | 7 | 14 |
