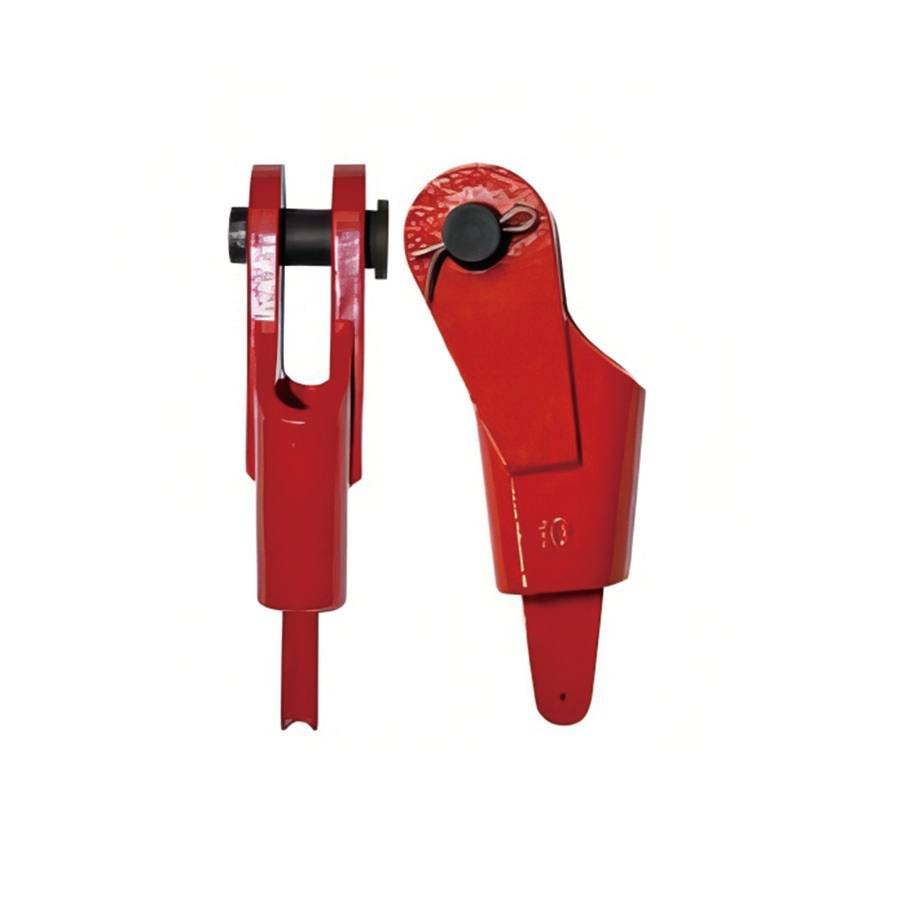

US Standard Casting Steel Wire Rope Wedge Sockets, Wedge Joint,US wedge socket, wire rope socket

A

C

D

F

G

H

J

L

M

N

1/4

4.56

0.75

0.69

0.38

0.69

1.56

2.25

1.56

1.31

0.31

5/19-3/8

4.84

0.81

0.81

0.5

0.81

1.69

2.25

1.75

1.5

0.44

7/16-1/2

5.56

1

1

0.56

0.94

1.88

2.5

2

1.88

0.5

9/16-5/8

6.75

1.25

1.19

0.69

1.13

2.25

3

2.5

2.25

0.56

3/4

7.94

1.5

1.38

0.81

1.25

2.62

3.5

3

2.62

0.62

7/8

9.25

1.75

1.63

0.94

1.5

3.25

4

3.5

3.13

0.8

1

10.56

2

2

1.13

1.75

3.75

4.5

4

3.75

0.88

1-1/8

11.81

2.25

2.25

1.25

2

4.12

5

4.62

4.12

1

11/4-13/8

13.19

2.5

2.5

1.5

2.25

4.75

5.5

5

4.75

1.13

1-1/2

15.12

3

2.75

1.63

2.75

5.25

6

6

5.38

1.19

1-5/8

16.25

3

3

1.75

3

5.5

6.5

6.5

5.75

1.31

13/4-17/8

18.25

3.5

3.5

2

3.13

6.38

7.5

7

6.5

1.56

2-21/8

21.5

4

3.75

2.25

3.75

7.38

8.5

9

7

1.81

21/4-23/8

23.5

4.5

4.25

2.5

4

8.25

9

10

7.75

2.13

21/2-25/8

25.5

5

4.75

2.88

4.5

9.25

9.75

10.75

8.5

2.38

23/4-27/8

27.25

5.25

5

3.12

4.88

10.5

11

11

9

2.88

3-31/8

29

5.75

5.25

3.38

5.25

11.12

12

11.25

9.5

3

31/4-33/8

30.88

6.25

5.5

3.62

5.75

11.88

13

11.75

10

3.12

31/2-35/8

33.25

6.75

6

3.88

6.5

12.38

14

12.5

10.75

3.25

33/4-4

36.25

7.5

7

4.25

7.25

13.62

15

13.5

12.5

3.5
