Size:6-25mm
Material:carbon steel
Process : forged

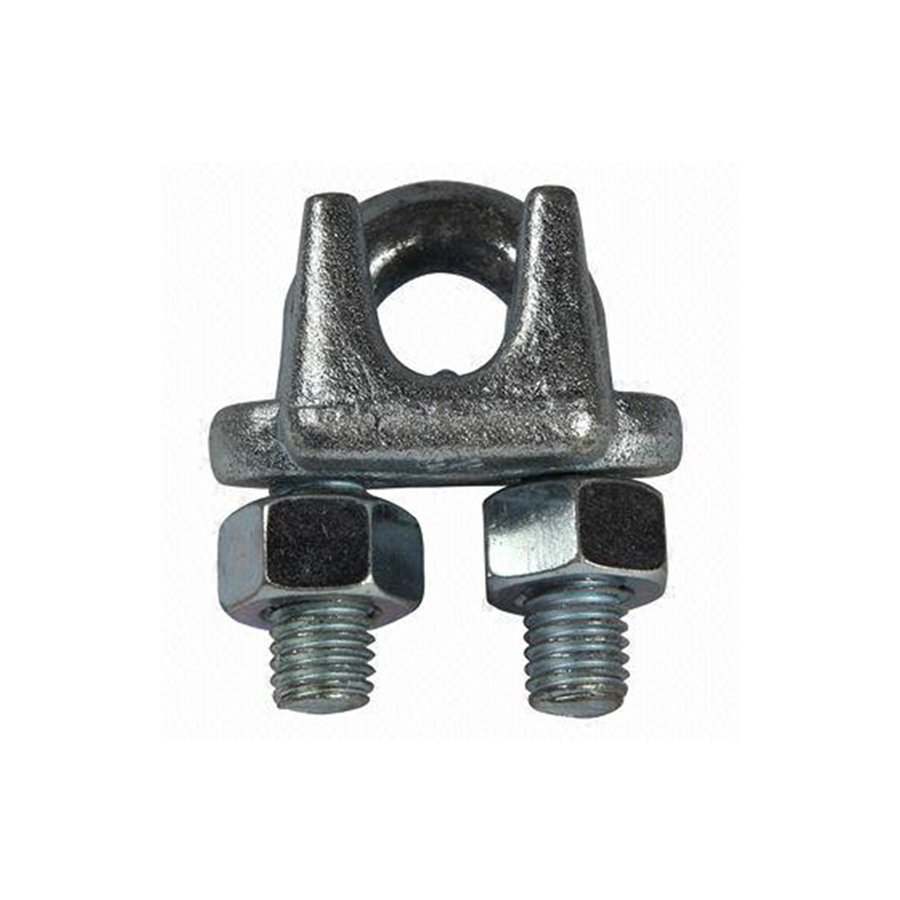

JIS Type Drop Forged Wire Rope Clip
Size:6-25mm
Material:carbon steel
Process : forged
Product Description
ITEM NO. | NORMINAL SIZE M/M | M/M B | M/M C | M/M E | M/M Gl2 | M/M | M/M H | M/M L | M/M S | KG |
Thread Dia | W/PCE | |||||||||
SRJISC06 | 6 | 6 | 29 | 24 | 14 | M6 | 5 | 35 | 20 | 0.047 |
SRJISC08 | 8 | 6 | 36 | 31 | 18 | 8 | 6.5 | 40 | 20 | 0.08 |
SRJISC10 | 10 | 7 | 45 | 35 | 22 | 10 | 8 | 50 | 28 | 0.15 |
SRJISC12 | 12 | 8 | 51 | 39 | 26 | 13 | 10 | 60 | 35 | 0.25 |
SRJISC14 | 14 | 9 | 53 | 45 | 28 | 12 | 10 | 65 | 40 | 0.29 |
SRJISC16 | 16 | 10 | 60 | 48 | 32 | 14 | 11 | 75 | 45 | 0.35 |
SRJISC18 | 18 | 11 | 62 | 0.53 | 34 | 14 | 11 | 80 | 50 | 0.45 |
SRJISC20-22 | 20-22 | 12 | 78 | 62 | 44 | 18 | 15 | 100 | 60 | 0.96 |
SRJISC24-25 | 24-25 | 13 | 86 | 68 | 48 | 20 | 16 | 110 | 65 | 1.25 |
