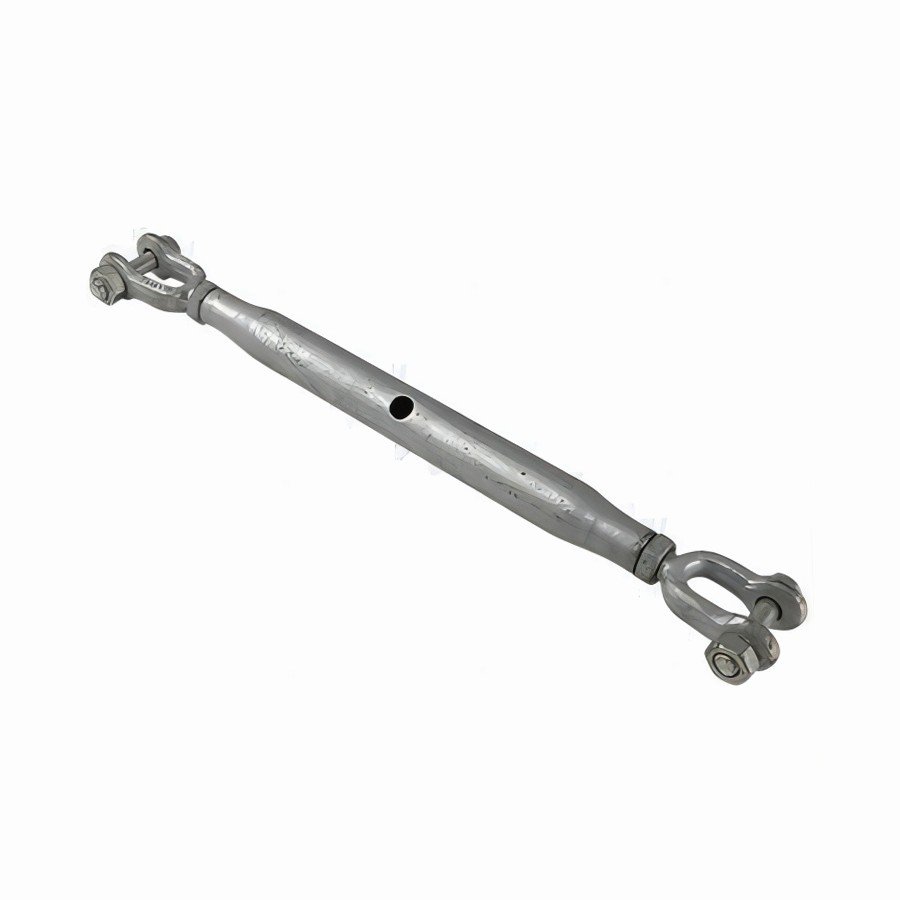

Din1478 Turnbuckle
Type: DIN1478 Turnbuckle eye and eye, hook and hook, eye and hook, clevis and clevis..
Materials: Carbon steel
Surface treatment: Zinc plated
Process: Drop forged, casting
Special specifications and marks can be made according to customer’s requirement
Packing: Gunny bags and cartons on pallets
Product Description

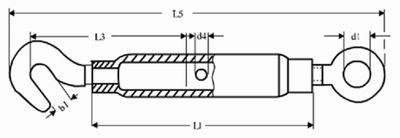

Item No. | Thread | Body length L1 | Adjustable | D4 | Hook | Eye | Total length | Weight per 100pcs | ||
Screwed in | ||||||||||
L3 | b1 | L3 | d1 | L5 | ||||||
MM | MM | MM | MM | MM | MM | MM | MM | MM | Kg | |
SR147806 | M6 | 110 | 90 | 6 | 85 | 8.5 | 80 | 9 | 172 | 11.6 |
SR147808 | M8 | 110 | 85 | 8 | 85 | 11 | 84 | 10 | 182 | 19 |
SR147810 | M10 | 125 | 85 | 8 | 112 | 13.5 | 105 | 14 | 213 | 31 |
SR147812 | M12 | 125 | 90 | 10 | 117 | 15.5 | 115 | 16 | 238 | 42 |
SR147816 | M16 | 170 | 120 | 10 | 138 | 19 | 165 | 22 | 320 | 89 |
SR147820 | M20 | 200 | 140 | 12 | 170 | 20.5 | 167 | 24 | 367 | 158 |
SR147824 | M24 | 255 | 180 | 12 | 205 | 26 | 205 | 27 | 447 | 292 |
SR147830 | M30 | 255 | 160 | 16 | 225 | 33 | 255 | 31 | 512 | 430 |
SR147836 | M36 | 295 | 180 | 16 | 255 | 44 | 276 | 43 | 568 | 605 |
SR147842 | M42 | 330 | 200 | 20 | 340 | 48 | 260 | 49 | 683 | 1160 |
SR147848 | M48 | 355 | 210 | 20 | 360 | 58 | 300 | 58 | 755 | 1600 |
