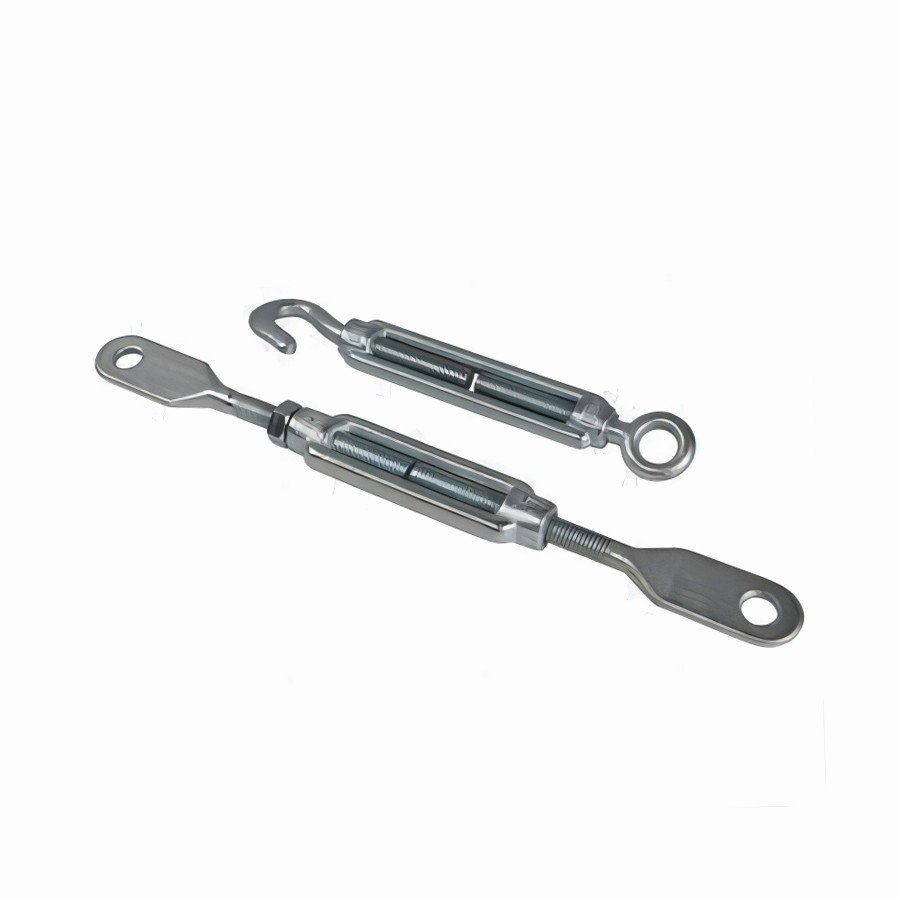

Din1480 Turnbuckle With Plane Ends

Your current location:

Home
Products
Rigging Hardware
Turnbuckle

*Type: Din1480 Turnbuckle With Plane Ends
*Materials: Carbon steel, malleable cast iron
*Surface treatment: Zinc plated, Hot dip galvanized.
*Process: Drop forged, casting
*Special specifications and marks can be made according to customer’s requirement
*Packing: Plastic bags and cartons on pallets

Product Description

Also available in stainless steel 304/316, stainless steel turnbuckle.

Item No.	Dia.	Permissible Load
Item No.	mm	kg	N
SRTB148006	M6	230	2250
SRTB148008	M8	418	4100
SRTB148010	M10	663	6500
SRTB148012	M12	948	9300
SRTB148016	M16	1804	17700
SRTB148020	M20	2752	27000
SRTB148024	M24	3996	39200
SRTB148030	M30	6371	62500
SRTB148032	11/4″	6585	64600
SRTB148036	M36	9276	91000
SRTB148038	11/2″	9572	93900

PREV：DIN1480 Turnbuckle Frame Body

NEXT：Din1480 Turnbuckle
