Material: Body: Carbon 1015
Finishing: Electrical galvanized ,Hot dip galvanized
Heat Treated: Quenched and Tempered
Part Type: Drop Forged
Standard: European Type
Packing: Gunny bags,carton

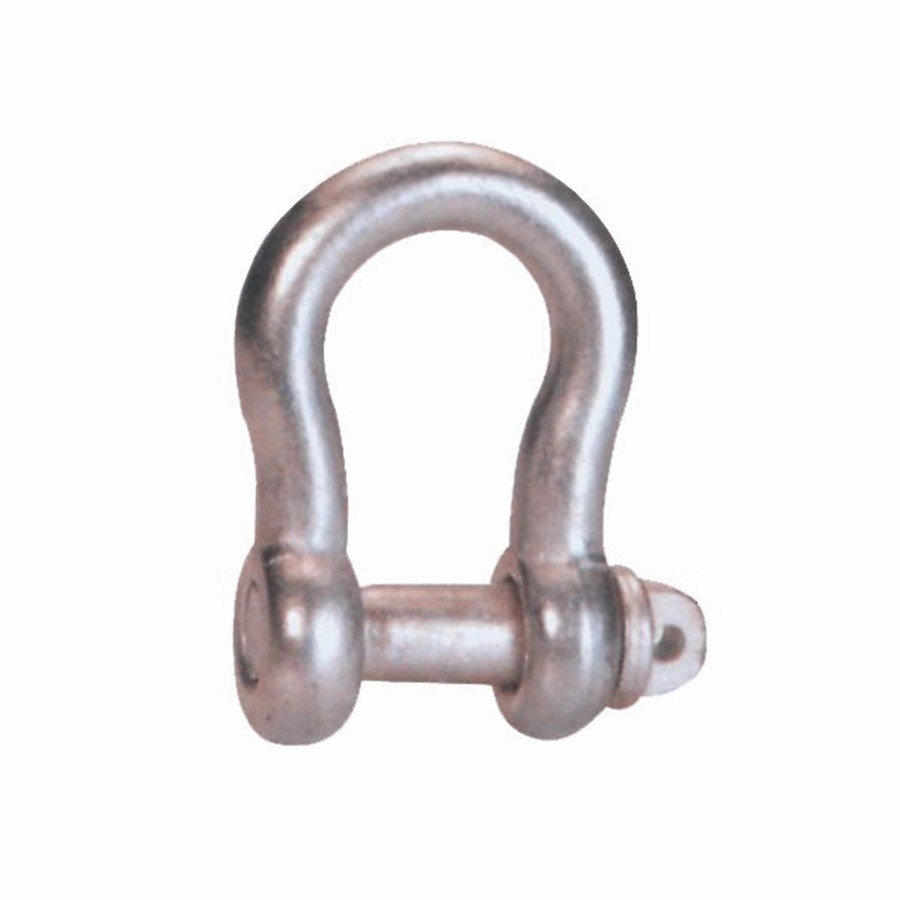

BS3032 Large Bow Shackle
Material: Body: Carbon 1015
Finishing: Electrical galvanized ,Hot dip galvanized
Heat Treated: Quenched and Tempered
Part Type: Drop Forged
Standard: European Type
Packing: Gunny bags,carton
Product Description
ART NO. | SIZE | W.L.L. | PIN DIA. | I.L. | N.W. |
(mm) | (kgs) | (mm) | (mm) | (kg) | |
SRBSL01 | 6 | 150 | 10 | 29 | 0.1 |
SRBSL02 | 10 | 450 | 12 | 41 | 0.18 |
SRBSL03 | 12 | 750 | 16 | 54 | 0.33 |
SRBSL04 | 16 | 1250 | 20 | 70 | 0.63 |
SRBSL05 | 20 | 2000 | 22 | 86 | 0.98 |
SRBSL06 | 22 | 2750 | 25 | 98 | 1.5 |
SRBSL07 | 25 | 3750 | 28 | 108 | 2.18 |
SRBSL08 | 28 | 4750 | 32 | 124 | 3.02 |
SRBSL09 | 32 | 5750 | 35 | 137 | 4.05 |
SRBSL10 | 38 | 8500 | 44 | 168 | 6.4 |
SRBSL11 | 45 | 11500 | 51 | 206 | 10.3 |
SRBSL12 | 50 | 15000 | 57 | 238 | 19.1 |
