Finish: Self color, Electric galvanized, Hot dip galvanized
Material: Mid steel /Carbon Steel
Packing: Gunny Bag / Carton, pallet

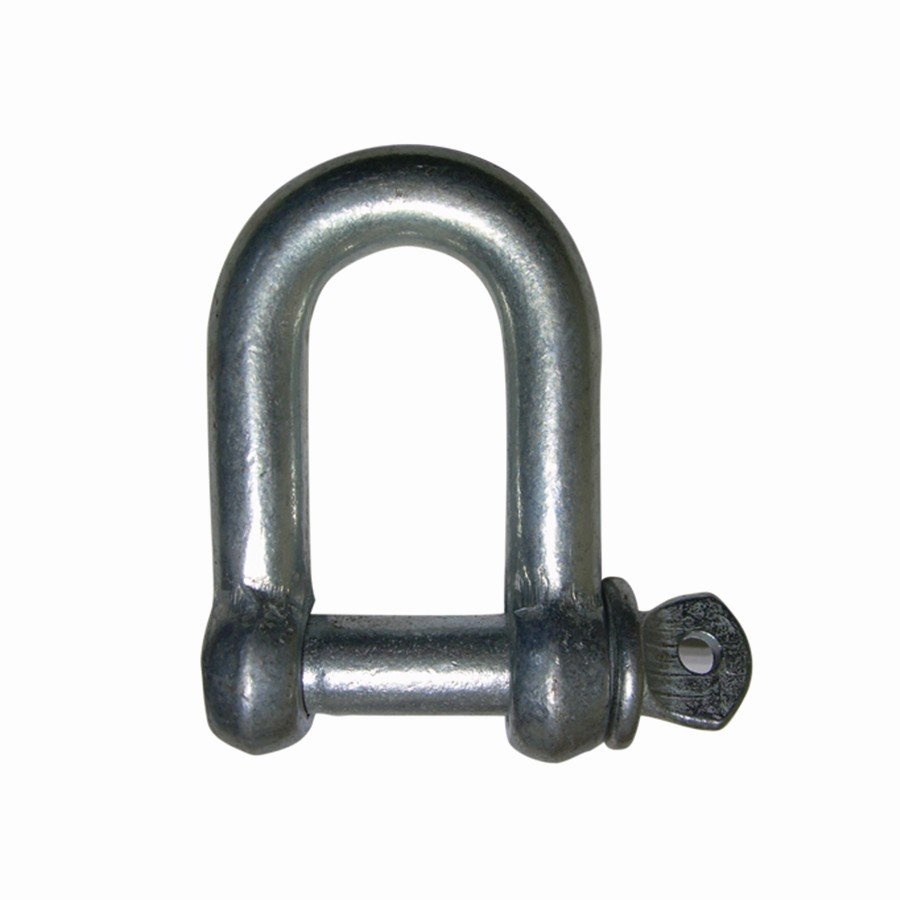

European Type Large Dee Shackle
Finish: Self color, Electric galvanized, Hot dip galvanized
Material: Mid steel /Carbon Steel
Packing: Gunny Bag / Carton, pallet
Product Description
ITEM NO | SWL | Size | Weight | ||||
kg | D | d | a | c | b | Per 100 pcs | |
mm | mm | mm | mm | mm | kg | ||
SREDS05 | 80 | 5 | 5 | 10 | 19 | 11 | 1.9 |
SREDS06 | 100 | 6 | 6 | 13 | 25 | 14 | 3.4 |
SREDS08 | 200 | 8 | 8 | 16 | 32 | 18 | 7 |
SREDS10 | 320 | 10 | 10 | 19 | 38 | 20 | 13 |
SREDS12 | 520 | 12 | 12 | 25 | 51 | 26 | 24 |
SREDS16 | 800 | 16 | 16 | 32 | 64 | 33 | 50 |
SREDS20 | 1100 | 20 | 20 | 38 | 76 | 40 | 80 |
SREDS22 | 1500 | 22 | 22 | 44 | 89 | 50 | 130 |
SREDS25 | 2100 | 25 | 25 | 51 | 100 | 57 | 200 |
SREDS28 | 3000 | 28 | 28 | 57 | 115 | 68 | 300 |
SREDS32 | 3500 | 32 | 32 | 64 | 127 | 73 | 430 |
SREDS38 | 5000 | 38 | 38 | 76 | 152 | 85 | 675 |
SREDS45 | 7000 | 45 | 45 | 90 | 180 | 96 | 1250 |
SREDS50 | 8000 | 50 | 50 | 102 | 200 | 108 | 1750 |
