Material: Alloy Steel
Finishing: Hot Dip Galvanized/ Galvanized/ Self Colored
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times /4 Times The Working Load Limit.
Packing: Gunny Bag / Carton, pallet

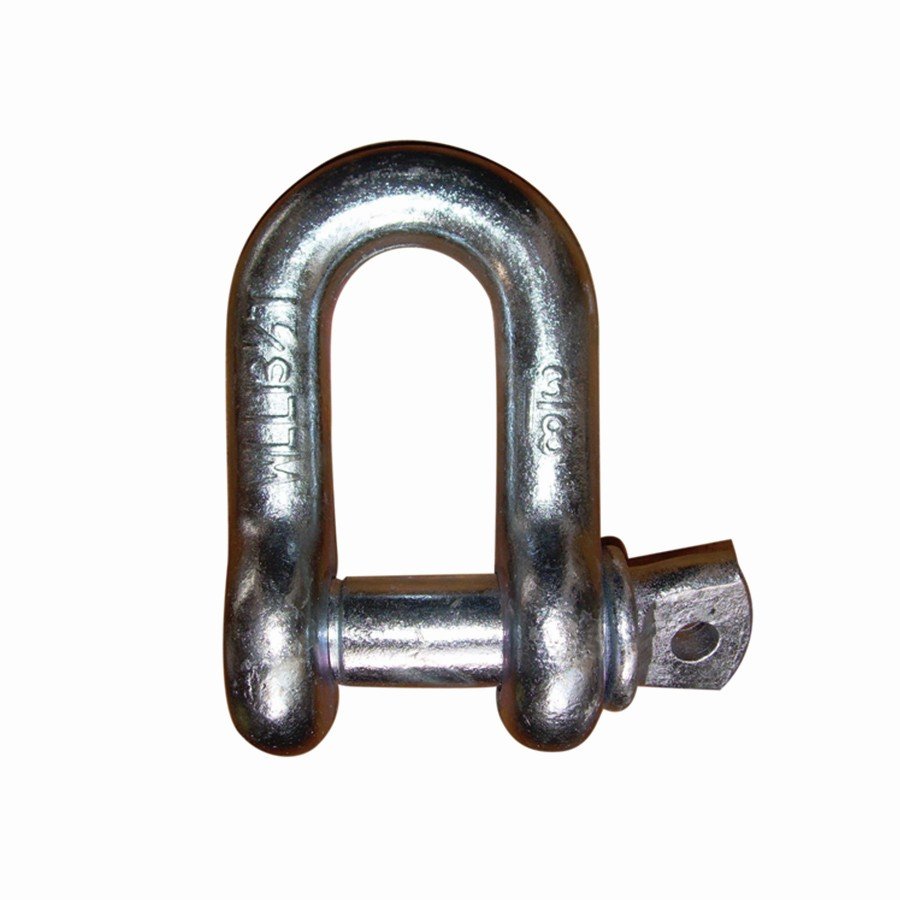

US TYPE SCREW PIN CHAIN SHACKLE G210
Material: Alloy Steel
Finishing: Hot Dip Galvanized/ Galvanized/ Self Colored
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times /4 Times The Working Load Limit.
Packing: Gunny Bag / Carton, pallet
Product Description
ITEM NO | Nominal | Working | Dimensions | Weight | |||||||||
Size | Load | (mm) | |||||||||||
Limit | each | ||||||||||||
(in.) | (tons) | A | B | C | D | E | F | G | H | I | M | (kg) | |
SRCS0832 | 1/4 | 1/2 | 11.90 | 7.85 | 6.35 | 6.35 | 24.60 | 15.50 | 22.40 | 40.40 | 4.85 | 35.10 | 0.05 |
SRCS1032 | 5/16 | 3/4 | 13.50 | 9.65 | 7.85 | 7.85 | 29.50 | 19.10 | 26.20 | 48.50 | 5.60 | 42.20 | 0.08 |
SRCS1232 | 3/8 | 1 | 16.80 | 11.20 | 9.65 | 9.65 | 35.80 | 23.10 | 31.80 | 58.50 | 6.35 | 51.50 | 0.13 |
SRCS1432 | 7/16 | 1-1/2 | 19.10 | 12.70 | 11.20 | 11.20 | 41.40 | 26.90 | 36.60 | 67.50 | 7.85 | 60.50 | 0.20 |
SRCS1632 | 1/2 | 2 | 20.60 | 16.00 | 12.70 | 12.70 | 46.00 | 30.20 | 41.40 | 77.00 | 9.65 | 68.50 | 0.27 |
SRCS2032 | 5/8 | 3-1/4 | 26.90 | 19.10 | 15.70 | 16.00 | 58.50 | 38.10 | 51.00 | 95.50 | 11.20 | 85.00 | 0.57 |
SRCS2432 | 3/4 | 4-3/4 | 31.80 | 22.40 | 20.60 | 19.10 | 70.00 | 46.00 | 60.50 | 115.00 | 12.70 | 101.00 | 1.20 |
SRCS2832 | 7/8 | 6-1/2 | 36.60 | 25.40 | 24.60 | 22.40 | 81.00 | 53.00 | 71.50 | 135.00 | 12.70 | 114.00 | 1.43 |
SRCS3232 | 1 | 8-1/2 | 42.90 | 28.70 | 25.40 | 25.40 | 93.50 | 60.50 | 81.00 | 151.00 | 14.20 | 129.00 | 2.15 |
SRCS3632 | 1-1/8 | 9-1/2 | 46.00 | 31.80 | 31.80 | 28.70 | 103.00 | 68.50 | 91.00 | 172.00 | 16.00 | 142.00 | 3.06 |
SRCS4032 | 1-1/4 | 12 | 51.50 | 35.10 | 35.10 | 31.80 | 115.00 | 76.00 | 100.00 | 191.00 | 17.50 | 156.00 | 4.11 |
SRCS4432 | 1-3/8 | 13-1/2 | 57.00 | 38.10 | 38.10 | 35.10 | 127.00 | 84.00 | 111.00 | 210.00 | 19.10 | 174.00 | 5.28 |
SRCS4832 | 1-1/2 | 17 | 60.50 | 41.40 | 41.10 | 38.10 | 137.00 | 92.00 | 122.00 | 230.00 | 20.60 | 187.00 | 7.23 |
SRCS5632 | 1-3/4 | 25 | 73.00 | 51.00 | 54.00 | 44.50 | 162.00 | 106.00 | 146.00 | 279.00 | 25.40 | 231.00 | 12.10 |
SRCS6432 | 2 | 35 | 82.50 | 57.00 | 51.00 | 51.00 | 184.00 | 122.00 | 172.00 | 312.00 | 31.00 | 263.00 | 19.20 |
SRCS8032 | 2-1/2 | 55 | 105.00 | 70.00 | 66.50 | 66.50 | 238.00 | 145.00 | 203.00 | 377.00 | 35.10 | 330.00 | 32.50 |
