Hot dip galvainzed surface finished.
Body forged carbon steel, and pin forged alloy steel.
Test load is 2.2times working load limit.
Ultimate load is 6times working load limit.

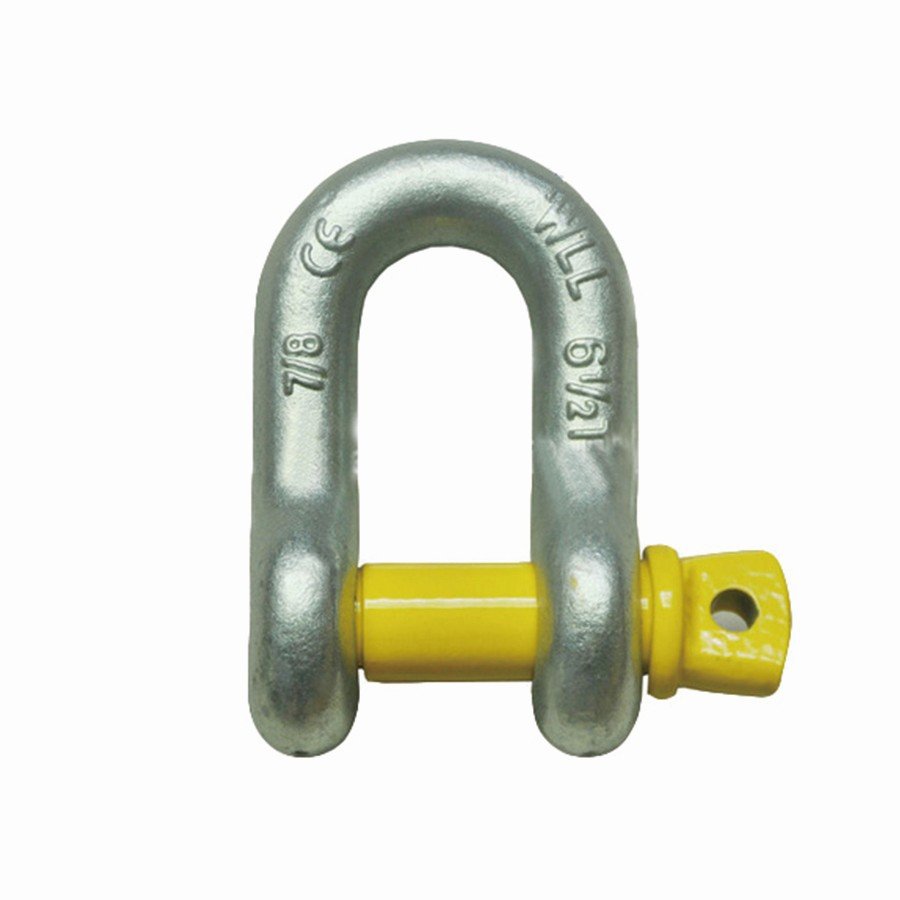

Grade S Dee Shackle With Screw Pin
Hot dip galvainzed surface finished.
Body forged carbon steel, and pin forged alloy steel.
Test load is 2.2times working load limit.
Ultimate load is 6times working load limit.
Product Description
ITEM | Nominal | Workin | Weight | Dimensions (in.) | Tolerance+/- | ||||||||||
NO. | Size | Load | Each(lbs.) | ||||||||||||
(in.) | Limit | ||||||||||||||

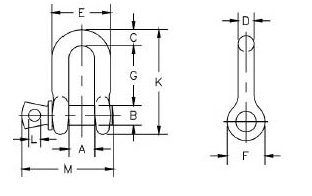

(t)* | A | B | C | D | E | F | G | K | L | M | G | A | |||
SR100531 | 1/4 | 1/2 | 0.11 | 0.47 | 0.31 | 0.25 | 0.25 | 0.97 | 0.62 | 0.97 | 1.59 | 0.19 | 1.43 | 0.06 | 0.06 |
SR100532 | 5/16 | 3/4 | 0.17 | 0.53 | 0.38 | 0.31 | 0.31 | 1.15 | 0.75 | 1.07 | 1.91 | 0.22 | 1.71 | 0.06 | 0.06 |
SR100533 | 3/8 | 1 | 0.28 | 0.66 | 0.44 | 0.38 | 0.38 | 1.42 | 0.92 | 1.28 | 2.31 | 0.25 | 2.02 | 0.13 | 0.06 |
SR100534 | 7/16 | 1-1/2 | 0.43 | 0.75 | 0.5 | 0.44 | 0.44 | 1.63 | 1.06 | 1.48 | 2.67 | 0.31 | 2.37 | 0.13 | 0.06 |
SR100535 | 1/2 | 2 | 0.59 | 0.81 | 0.63 | 0.5 | 0.5 | 1.81 | 1.18 | 1.66 | 3.03 | 0.38 | 2.69 | 0.13 | 0.06 |
SR100536 | 5/8 | 3-1/4 | 1.25 | 1.06 | 0.75 | 0.63 | 0.63 | 2.32 | 1.5 | 2.04 | 3.76 | 0.44 | 3.34 | 0.13 | 0.06 |
SR100537 | 3/4 | 4-3/4 | 2.63 | 1.25 | 0.88 | 0.81 | 0.75 | 2.75 | 1.81 | 2.4 | 4.53 | 0.5 | 3.97 | 0.25 | 0.06 |
SR100538 | 7/8 | 6-1/2 | 3.16 | 1.44 | 1 | 0.97 | 0.88 | 3.2 | 2.1 | 2.86 | 5.33 | 0.5 | 4.5 | 0.25 | 0.06 |
SR100539 | 1 | 8-1/2 | 4.75 | 1.69 | 1.13 | 1 | 1 | 3.69 | 2.38 | 3.24 | 5.94 | 0.56 | 5.13 | 0.25 | 0.06 |
SR100540 | 1-1/8 | 9-1/2 | 6.75 | 1.81 | 1.25 | 1.25 | 1.13 | 4.07 | 2.69 | 3.61 | 6.78 | 0.63 | 5.71 | 0.25 | 0.06 |
SR100541 | 1-1/4 | 12 | 9.06 | 2.03 | 1.38 | 1.38 | 1.25 | 4.53 | 3 | 3.97 | 7.5 | 0.69 | 6.25 | 0.25 | 0.13 |
SR100542 | 1-3/8 | 13-1/2 | 11.63 | 2.25 | 1.5 | 1.5 | 1.38 | 5.01 | 3.31 | 4.43 | 8.28 | 0.75 | 6.83 | 0.25 | 0.13 |
SR100543 | 1-1/2 | 17 | 15.95 | 2.38 | 1.63 | 1.62 | 1.5 | 5.38 | 3.62 | 4.84 | 9.05 | 0.81 | 7.33 | 0.25 | 0.13 |
SR100544 | 1-3/4 | 25 | 26.75 | 2.88 | 2 | 2.12 | 1.75 | 6.38 | 4.19 | 5.78 | 10.97 | 1 | 9.06 | 0.25 | 0.13 |
SR100545 | 2 | 35 | 42.31 | 3.25 | 2.25 | 2.36 | 2.1 | 7.25 | 5 | 6.77 | 12.74 | 1.13 | 10.35 | 0.25 | 0.13 |
SR100546 | 2-1/2 | 55 | 71.75 | 4.12 | 2.75 | 2.63 | 2.63 | 9.38 | 5.68 | 8.07 | 14.85 | 1.38 | 13 | 0.25 | 0.25 |
