Material: Alloy Steel
Finishing: Hot Dip Galvanized/ Galvanized/ Self Colored
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times /4 Times The Working Load Limit.
Packing: Gunny Bag / Carton, pallet

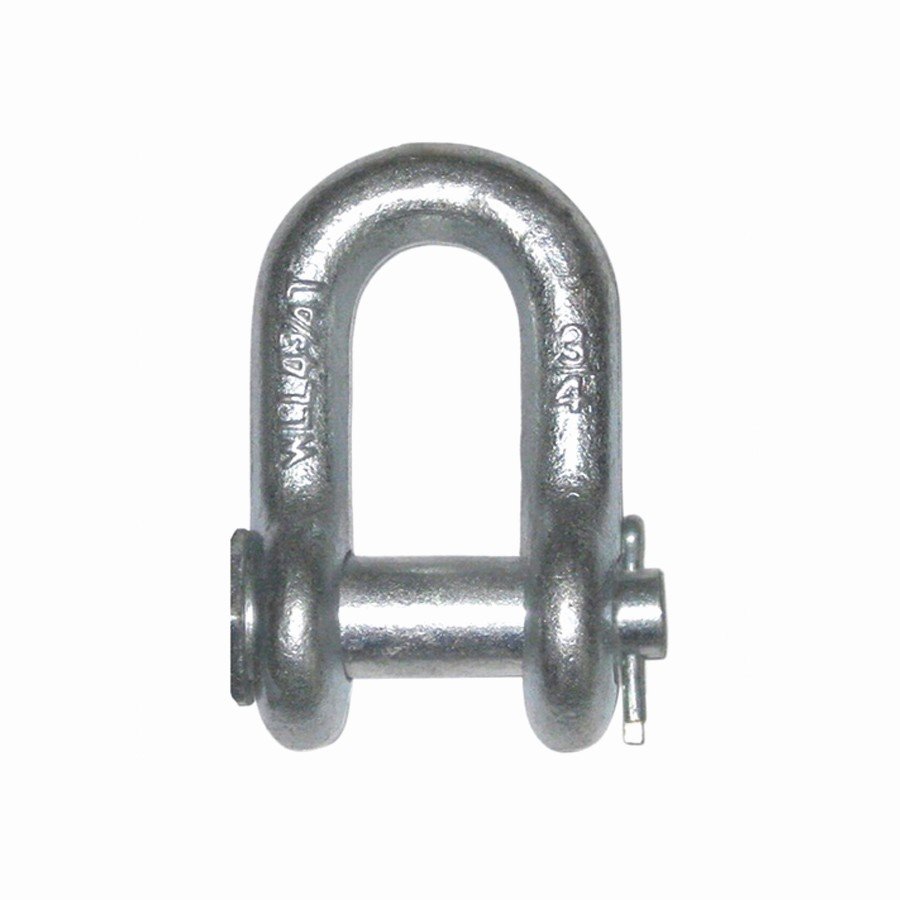

US Type Bolt Anchor Shackle G215
Material: Alloy Steel
Finishing: Hot Dip Galvanized/ Galvanized/ Self Colored
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times /4 Times The Working Load Limit.
Packing: Gunny Bag / Carton, pallet
Product Description
ITEM NO | Nominal | Working | Dimensions | Weight | ||||||||
Size | Load | (mm) | Each | |||||||||
Limit | (kg) | |||||||||||
(in.) | (tons) | A | B | C | D | E | F | G | K | N | ||
SRBCS0832 | 1/4 | 1/2 | 11.90 | 7.85 | 6.35 | 6.35 | 24.60 | 15.50 | 22.40 | 40.40 | 34.00 | 0.05 |
SRBCS1032 | 5/16 | 3/4 | 13.50 | 9.65 | 7.85 | 7.85 | 29.50 | 19.10 | 26.20 | 48.50 | 40.40 | 0.08 |
SRBCS1232 | 3/8 | 1 | 16.80 | 11.20 | 9.65 | 9.65 | 35.80 | 23.10 | 31.80 | 58.50 | 47.20 | 0.11 |
SRBCS1432 | 7/16 | 1-1/2 | 19.10 | 12.70 | 11.20 | 11.20 | 41.10 | 26.90 | 36.60 | 67.50 | 54.00 | 0.18 |
SRBCS1632 | 1/2 | 2 | 20.60 | 16.00 | 12.70 | 12.70 | 46.00 | 30.20 | 41.40 | 77.00 | 60.50 | 0.23 |
SRBCS2032 | 5/8 | 3-1/4 | 26.90 | 19.10 | 16.00 | 16.00 | 58.50 | 38.10 | 51.00 | 95.50 | 74.00 | 0.55 |
SRBCS2432 | 3/4 | 4-3/4 | 31.80 | 22.40 | 19.10 | 19.10 | 70.00 | 46.00 | 60.50 | 115.00 | 87.00 | 0.91 |
SRBCS2832 | 7/8 | 6-1/2 | 36.60 | 25.40 | 22.40 | 22.40 | 81.00 | 53.00 | 71.50 | 135.00 | 96.50 | 1.49 |
SRBCS3232 | 1 | 8-1/2 | 42.90 | 28.70 | 25.40 | 25.40 | 93.50 | 60.50 | 81.00 | 151.00 | 115.00 | 2.15 |
SRBCS3632 | 1-1/8 | 9-1/2 | 46.00 | 31.80 | 28.70 | 28.70 | 103.00 | 68.50 | 91.00 | 172.00 | 130.00 | 2.86 |
SRBCS4032 | 1-1/4 | 12 | 51.50 | 35.10 | 31.80 | 31.80 | 115.00 | 76.00 | 100.00 | 191.00 | 140.00 | 4.08 |
SRBCS4432 | 1-3/8 | 13-1/2 | 57.00 | 38.10 | 35.10 | 35.10 | 127.00 | 84.00 | 111.00 | 210.00 | 156.00 | 5.44 |
SRBCS4832 | 1-1/2 | 17 | 60.50 | 41.40 | 38.10 | 38.10 | 137.00 | 92.00 | 122.00 | 230.00 | 165.00 | 7.33 |
SRBCS5632 | 1-3/4 | 25 | 73.00 | 51.00 | 44.50 | 44.50 | 162.00 | 106.00 | 146.00 | 279.00 | 197.00 | 13.60 |
SRBCS6432 | 2 | 35 | 82.50 | 57.00 | 51.00 | 51.00 | 184.00 | 122.00 | 172.00 | 312.00 | 222.00 | 19.60 |
