D Ring link with bracket(clamp) 50T/36T/25T/10T breaking load.
High Tensile Steel Forged D-Ring Link, Ship Steel Bend Clamp(bracket).
Great for Truck Trailers, Utility Trailers, RV’s, Auto Haulers, ATV Tiedowns, Farm applications and many more uses.

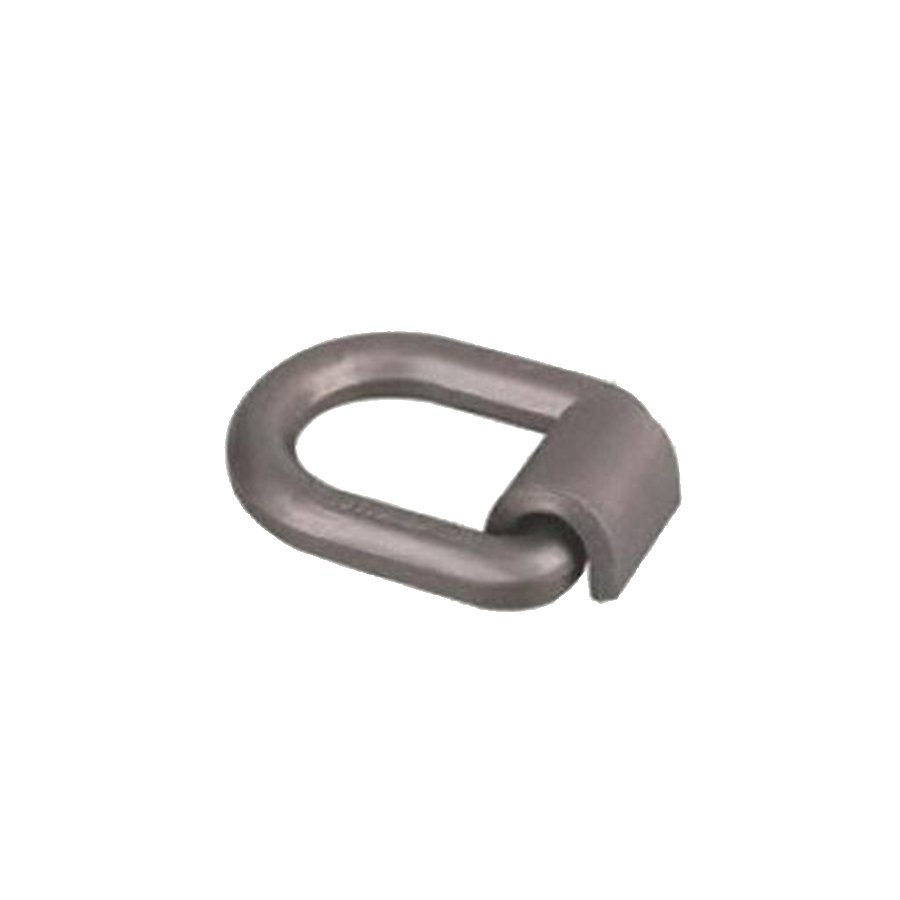

Drop Forged D Ring
D Ring link with bracket(clamp) 50T/36T/25T/10T breaking load.
High Tensile Steel Forged D-Ring Link, Ship Steel Bend Clamp(bracket).
Great for Truck Trailers, Utility Trailers, RV’s, Auto Haulers, ATV Tiedowns, Farm applications and many more uses.
Product Description
Item code | A | B | C | D | MBS |
D3001 | 3 1/2″ | 3 1/4″ | 1/2″ | 7.5mm | 12000lbs/5500kgs |
D3002 | 4 1/4″ | 4 1/4″ | 5/8″ | 10mm | 18000lbs/8000kgs |
D3003 | 4 1/2″ | 4 1/2″ | 3/4″ | 10mm | 26500lbs/12000kgs |
D3004 | 5″ | 5″ | 1″ | 11mm | 47000lbs/21000kgs |
D3005 | 6″ | 5″ | 1″ | 11mm | 47000lbs/21000kgs |
D3006 | 5 1/3″ | 5″ | 1″ | 11mm | 47000lbs/21000kgs |
D3007 | 5 1/3″ | 5″ | 4/5″ | 10mm | 11000lbs/5000kgs |
D3009 | 6 1/2″ | 5 7/10″ | 1″ | 15mm | 28600lbs/13000kgs |
D3010 | 6 1/2″ | 5 7/10″ | 1″ | 15mm | 28600lbs/13000kgs |
