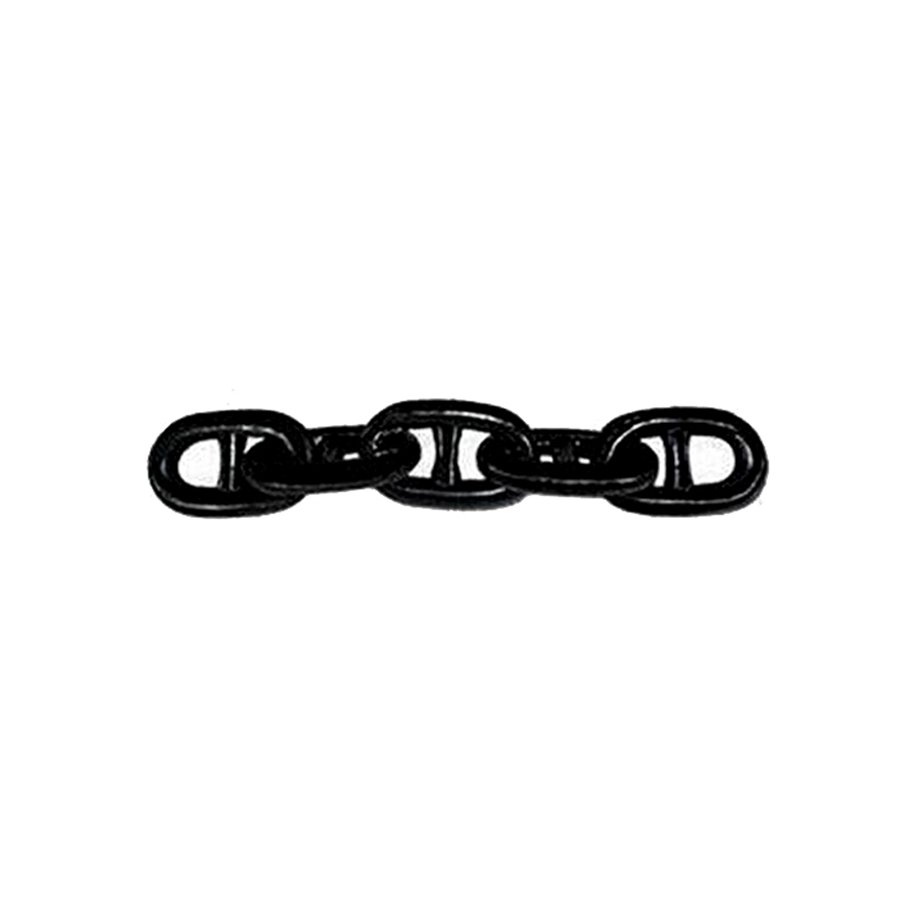

Anchor Chain Stud Link Chain, Studless Link Chain
Chain mooring is the most common anchoring method. Pontoons are moored to the seabed with concrete sinkers placed in selected locations, and with shore mooring lines. The sinker weight and chain dimensions are chosen according to site conditions, we use hot-dip galvanized/stainless steel chains and shackles. All pontoons are provided with anchoring tubes which enable easy installation and adjustment of the anchoring chains.
Product Description
Dia. | Outside Length | Outside Width | U2 | U3 | Weight | ||
Proof Load | Breaking Load | Proof Load | Breaking Load | ||||
16 | 96 | 56 | 66.2 | 132.3 | 92.42 | 184.83 | 138.14 |
17.5 | 105 | 61.25 | 78.89 | 157.78 | 110.55 | 221.1 | 165.8 |
19 | 114 | 66.5 | 93.6 | 187.2 | 130.32 | 260.64 | 194.9 |
20.5 | 123 | 71.8 | 108.64 | 217.27 | 151.7 | 303.42 | 227.13 |
22 | 132 | 77 | 125.4 | 250.9 | 174.4 | 349.4 | 262.29 |
24 | 144 | 84 | 149.9 | 298.9 | 207.9 | 415.8 | 312.26 |
26 | 156 | 91 | 175.4 | 350.8 | 244 | 488 | 366.76 |
28 | 168 | 98 | 203.8 | 406.7 | 283 | 566 | 423.36 |
30 | 180 | 105 | 234.2 | 467.5 | 324.9 | 649.8 | 486.85 |
32 | 192 | 112 | 265.6 | 531.2 | 369.6 | 739.3 | 554.7 |
34 | 204 | 119 | 299.9 | 599.8 | 417.3 | 834.6 | 628.08 |
36 | 216 | 126 | 336.1 | 672.3 | 467.8 | 935.7 | 701.54 |
38 | 228 | 133 | 374.4 | 748.7 | 521.3 | 1042.5 | 781.92 |
40 | 240 | 140 | 414.5 | 829.1 | 577.6 | 1155.2 | 861.17 |
42 | 252 | 147 | 457.7 | 915.3 | 636.8 | 1273.6 | 950.94 |
44 | 264 | 154 | 502.7 | 999.6 | 698.9 | 1398 | 1053 |
46 | 276 | 161 | 548.8 | 1097.6 | 763.9 | 1527.8 | 1142 |
48 | 288 | 168 | 597.8 | 1195.6 | 831.7 | 1663.5 | 1245 |
50 | 300 | 175 | 648.8 | 1293.6 | 902.5 | 1805 | 1348.5 |
